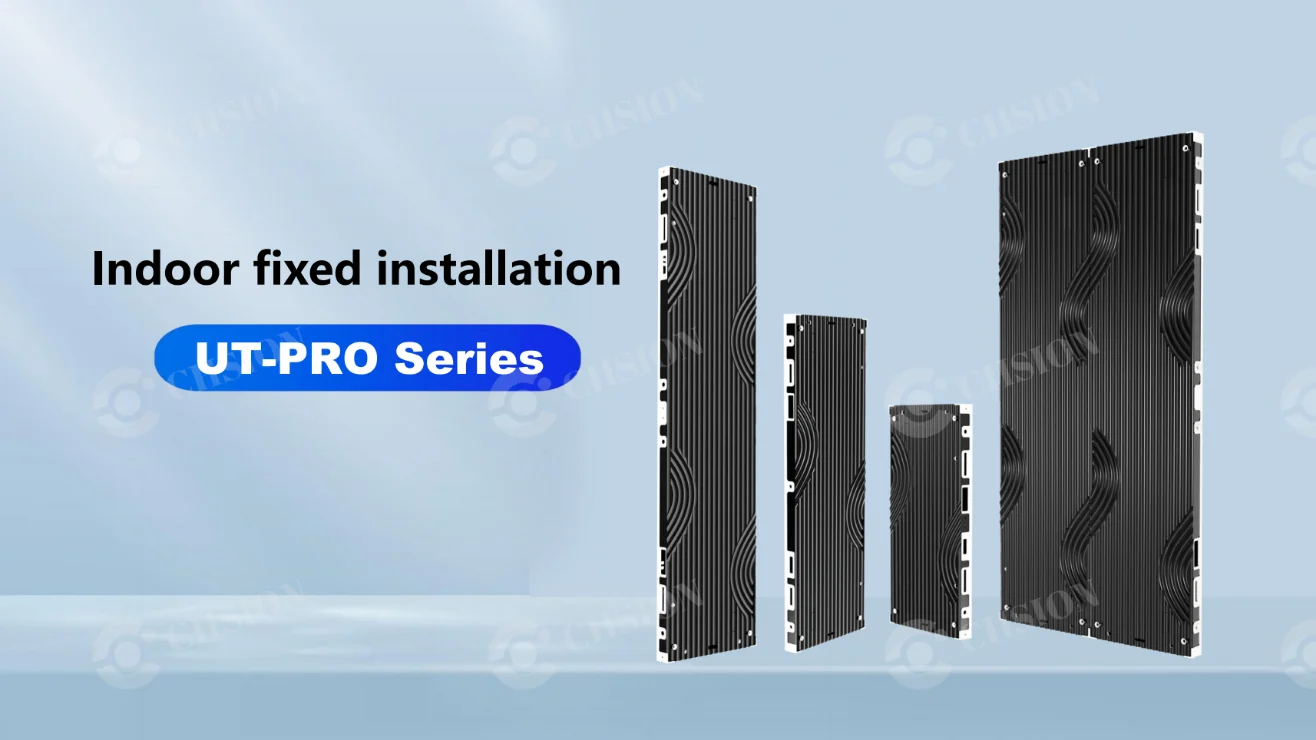

UT-PRO LED Display

Module Dimension(mm): 250×250

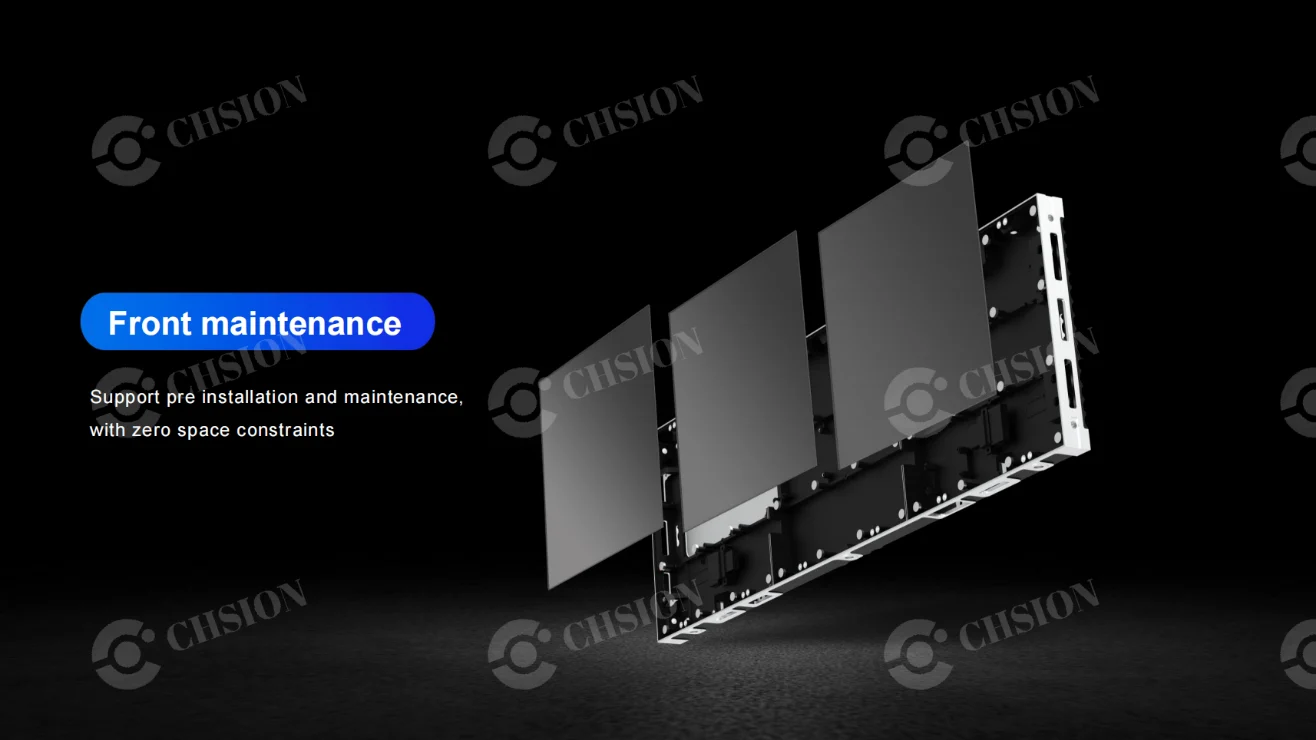

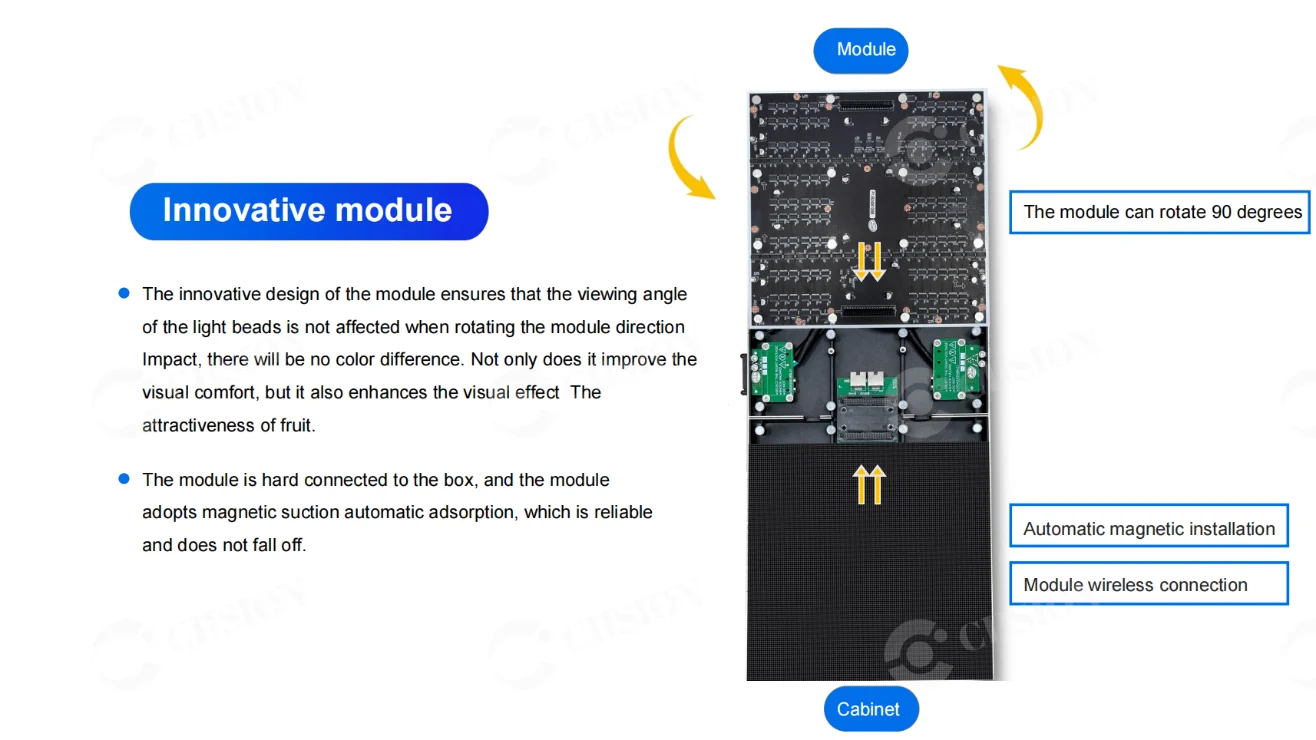

Maintenance: Front access

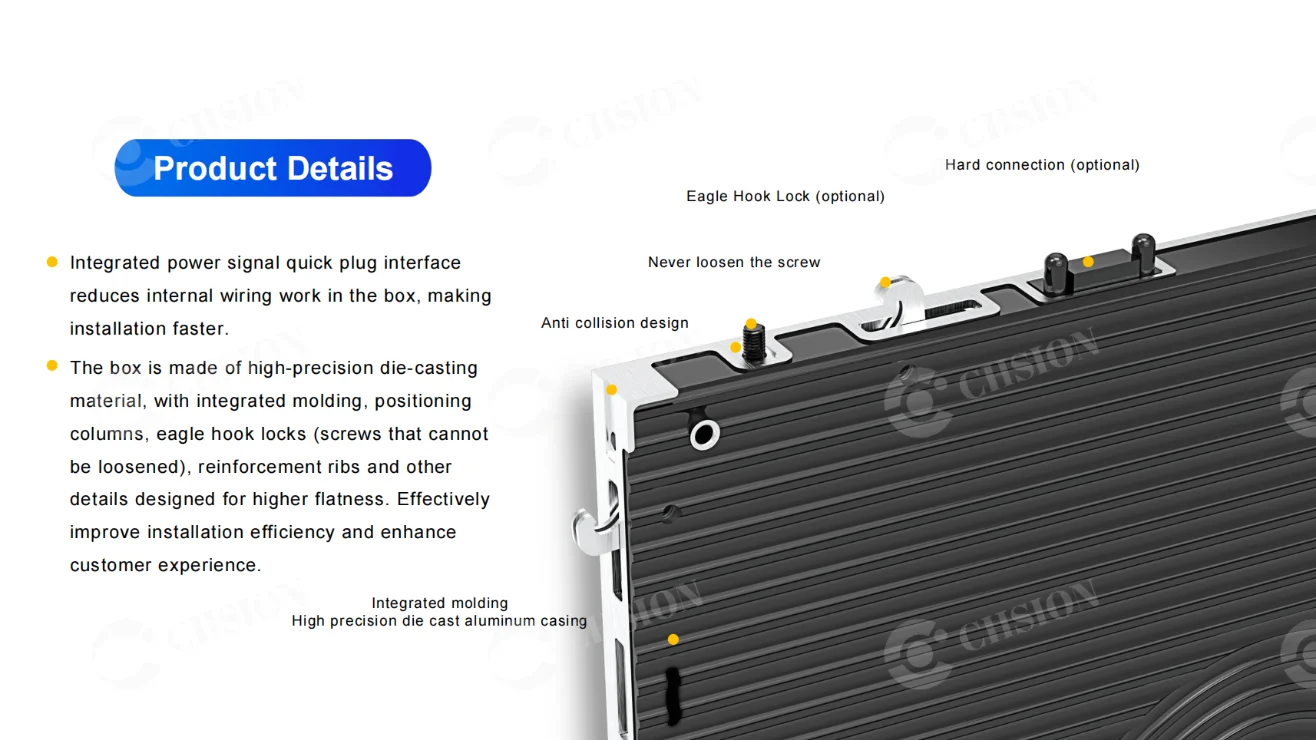

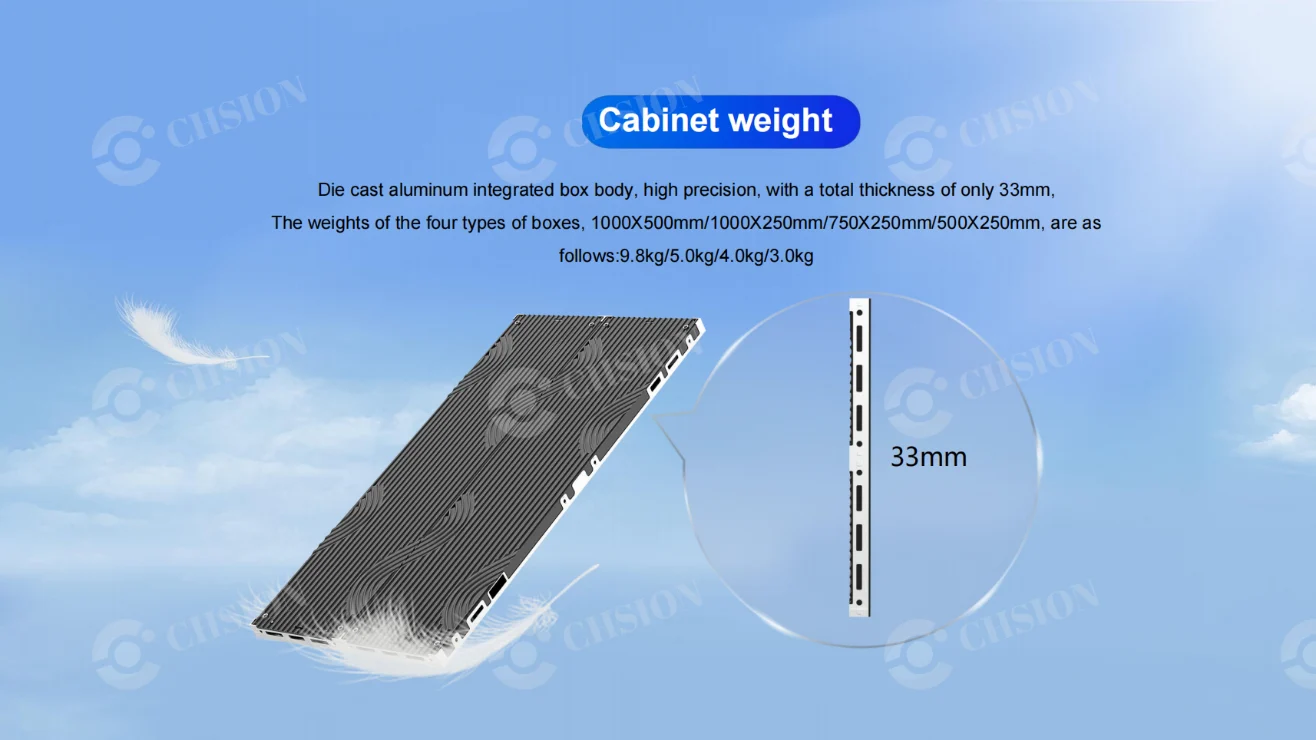

Cabinet Material: Die cast aluminum
Viewing Angle (V/H): 160°/160°
Protection Level: IP31
Certificates: CCC/CE/RoHS/FCC/CB/TUV/IEC

Quote Now Next

Features
Specifications

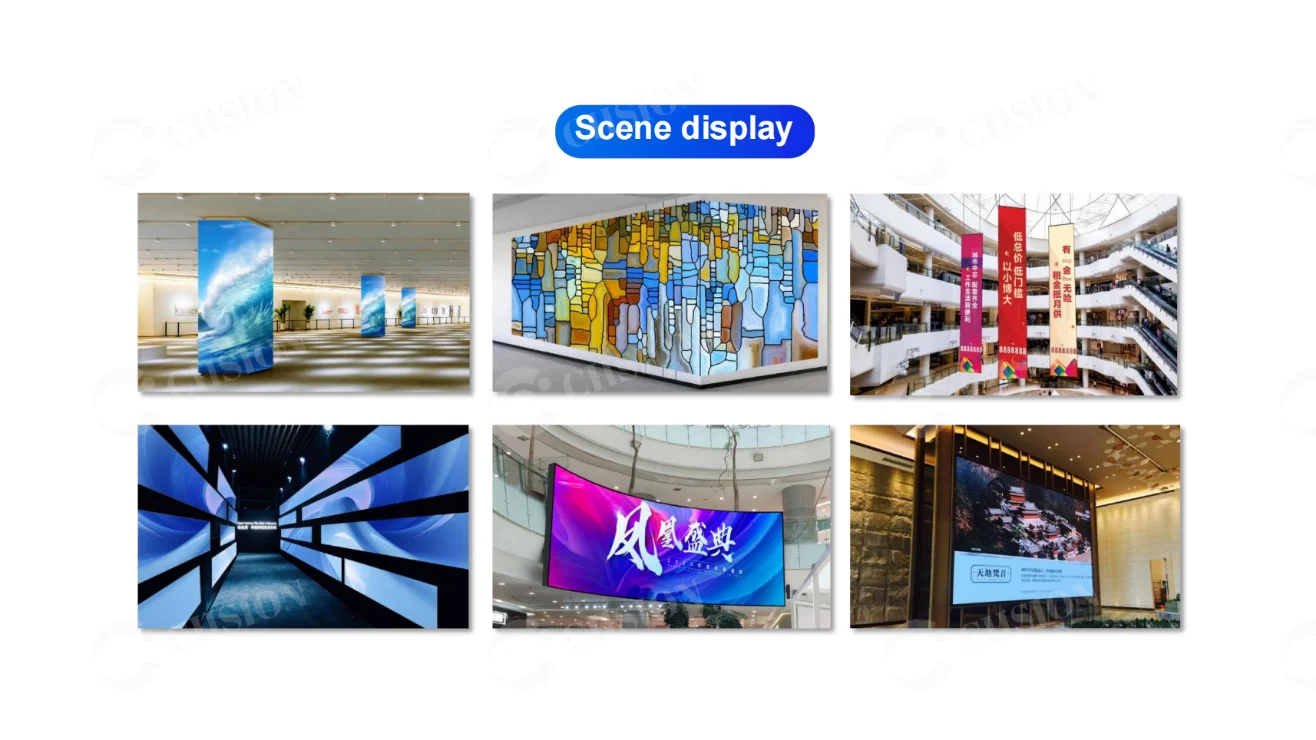

Cases

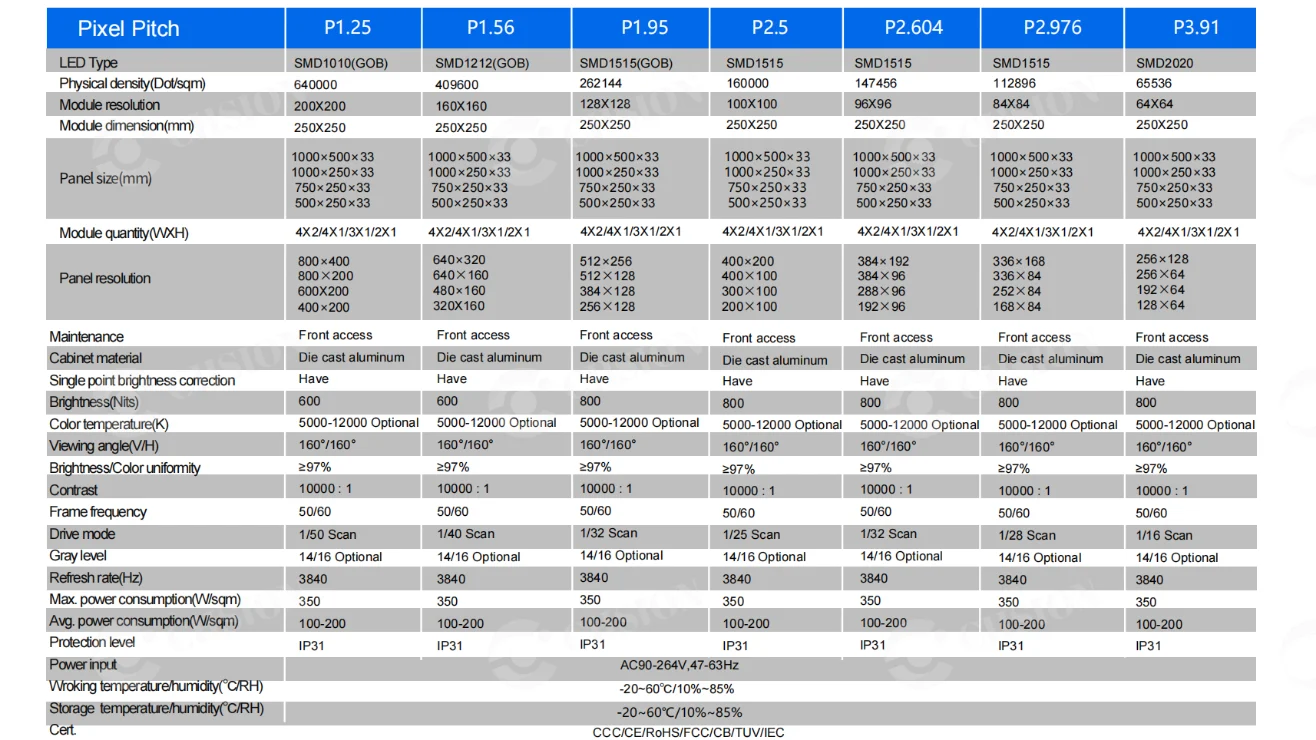

Pixel Pitch	P1.25	P1.56	P1.95	P2.5	P2.604	P2.976	P3.91
LED Type	SMD1010(GOB)	SMD1212(GOB)	SMD1515(GOB)	SMD1515	SMD1515	SMD1515	SMD2020
Physical Density(Dot/sqm)	640000	409600	262144	160000	147456	112896	65536
Module Resolution	200×200	160×160	128×128	100×100	96×96	84×84	64×64
Module Dimension(mm)	250×250	250×250	250×250	250×250	250×250	250×250	250×250

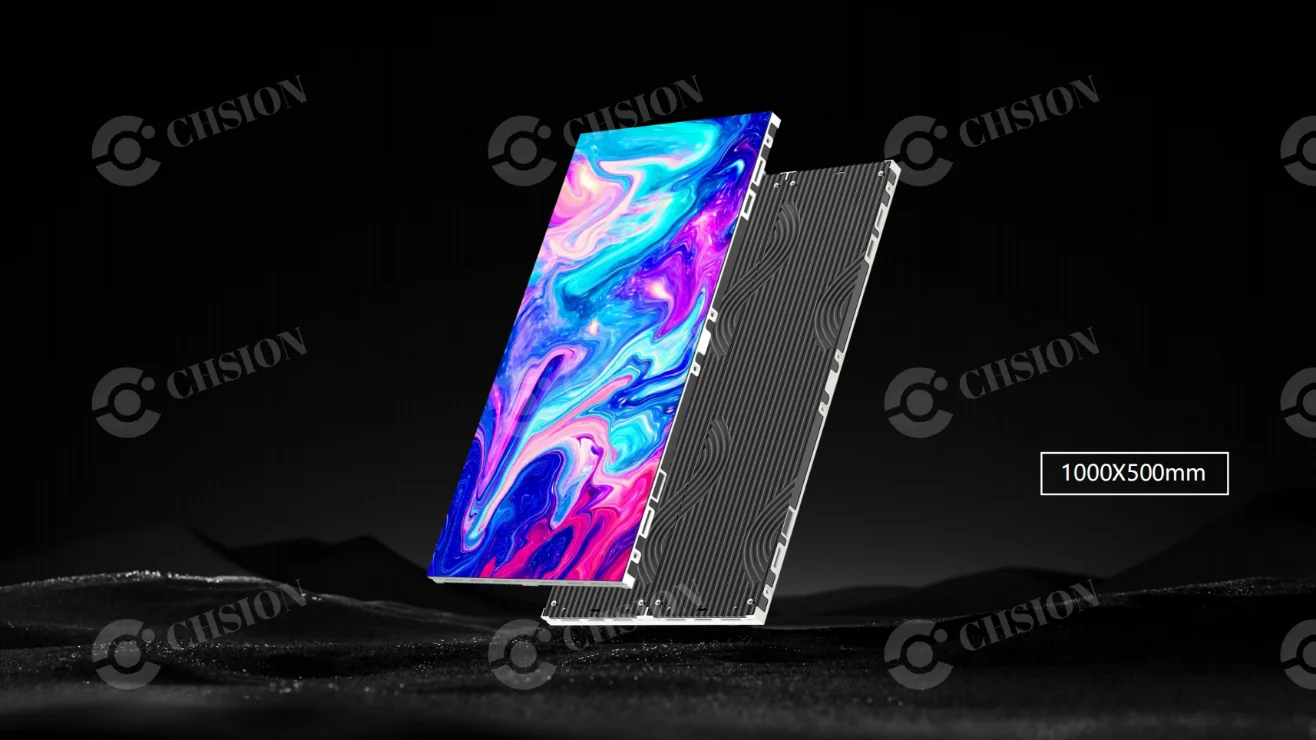

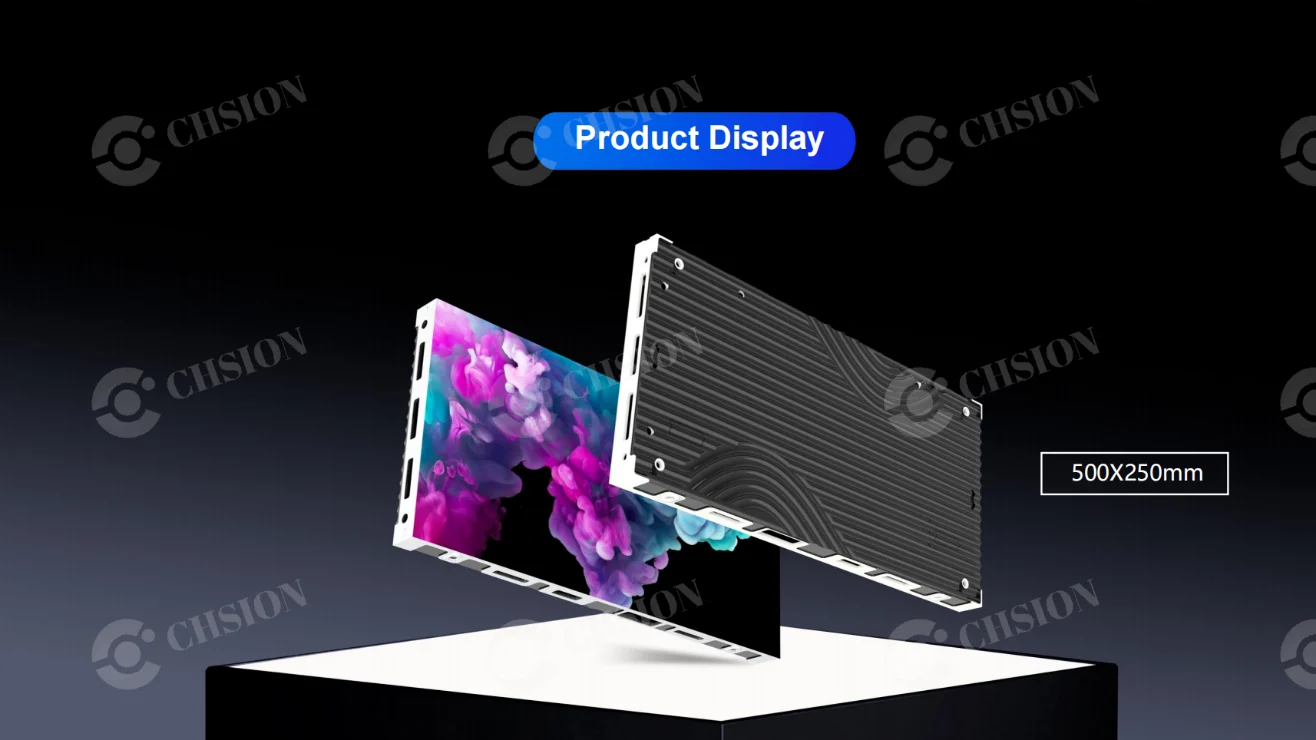

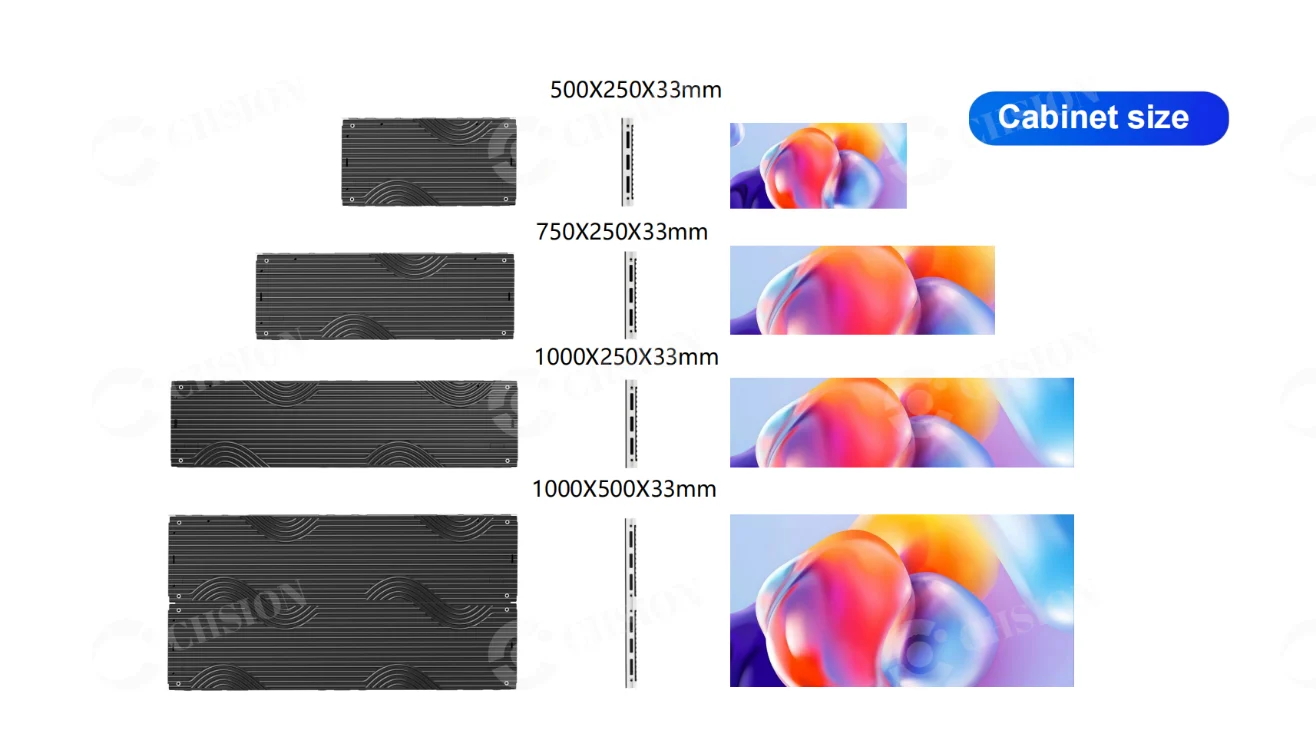

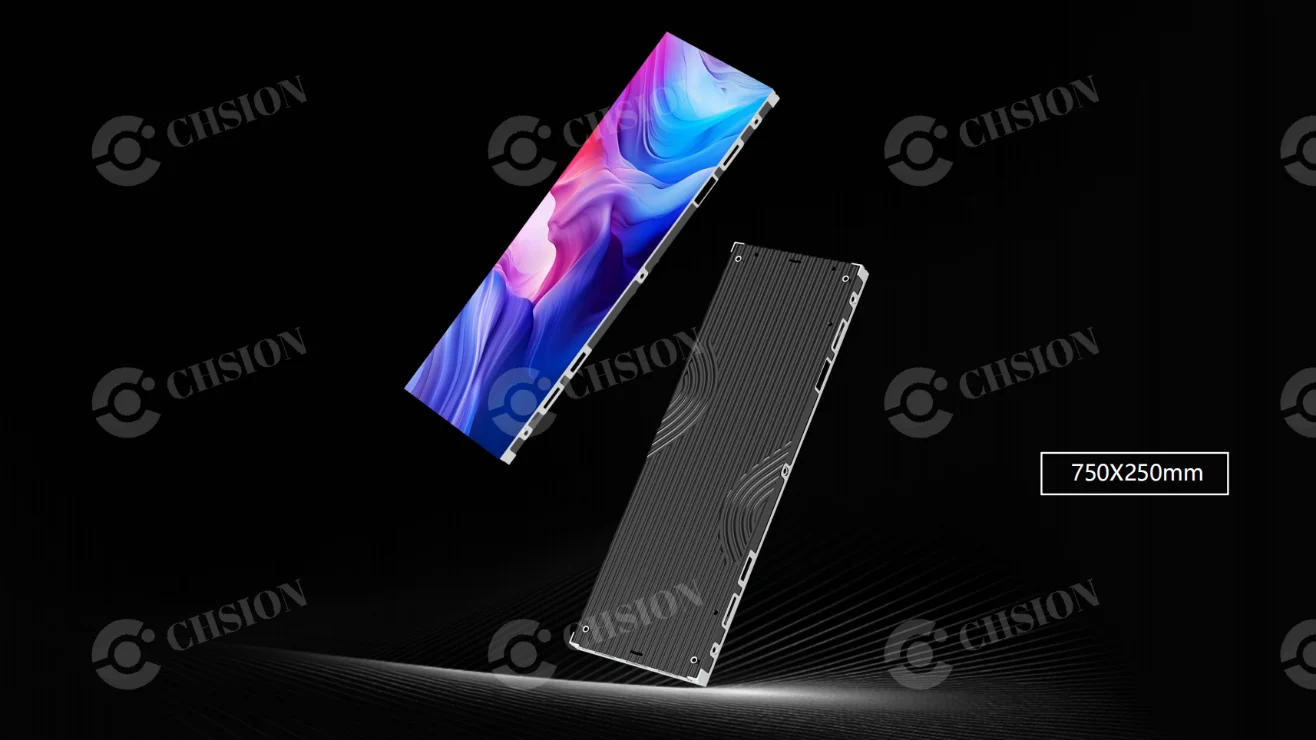

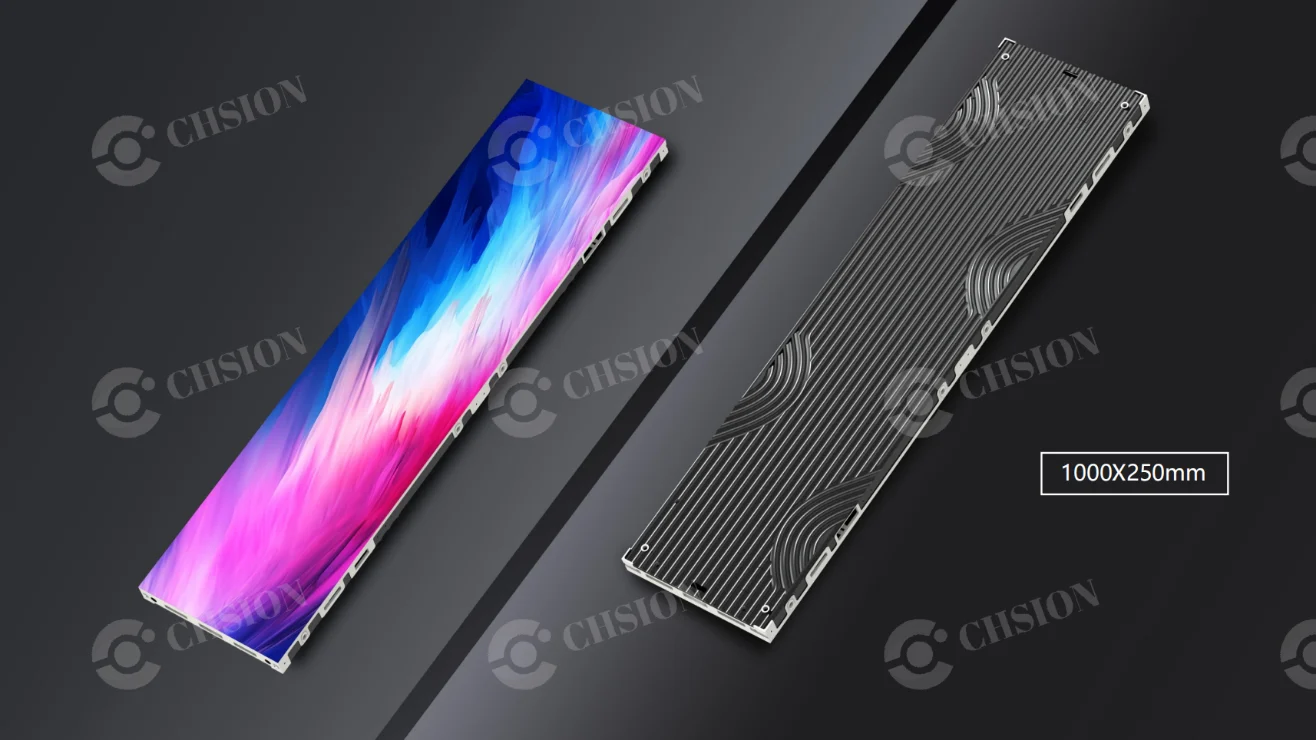

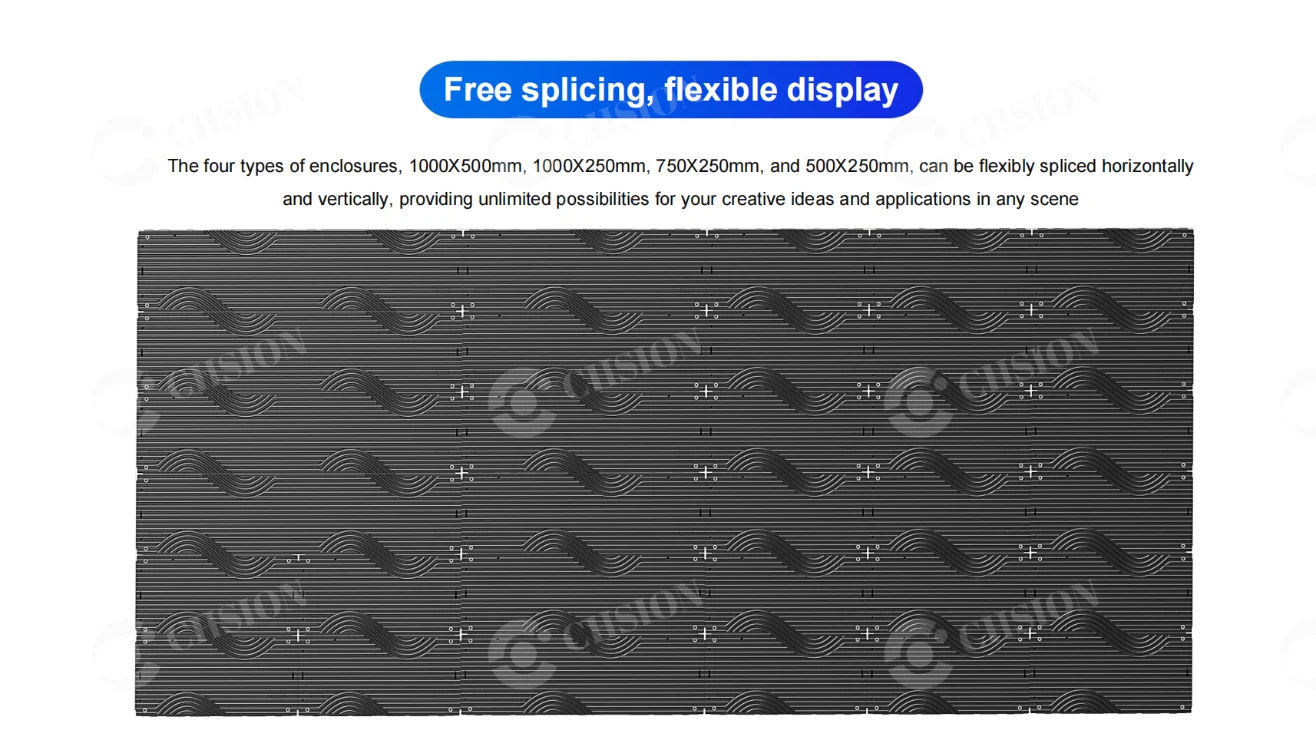

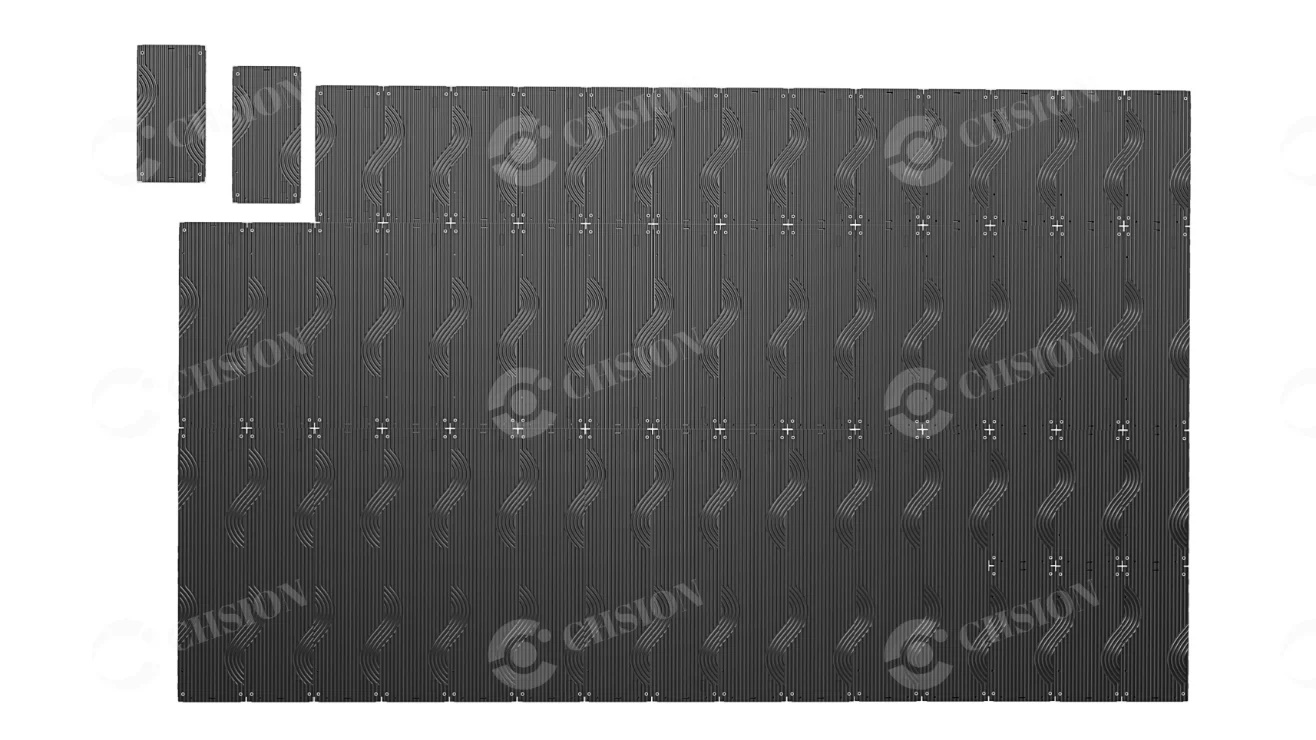

Panel Size(mm)	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33	1000×500×33 1000×250×33 750×250×33 500×250×33
Module Quantity (W×H)	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1
Panel Resolution	800×400 800×200 600×200 400×200	640×320 640×160 480×160 320×160	512×256 512×128 384×128 256×128	400×200 400×100 300×100 200×100	384×192 384×96 288×96 192×96	336×168 336×84 252×84 168×84	256×128 256×64 192×64 128×64
Maintenance	Front access	Front access	Front access	Front access	Front access	Front access	Front access
Cabinet Material	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum	Die cast aluminum
Single Point Brightness Correction	Have	Have	Have	Have	Have	Have	Have
Brightness (Nits)	600	600	800	800	800	800	800
Color Temperature (K)	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional
Viewing Angle (V/H)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Brightness/Color Uniformity	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%
Contrast	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Frame Frequency	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Drive Mode	1/50 Scan	1/40 Scan	1/32 Scan	1/25 Scan	1/32 Scan	1/28 Scan	1/16 Scan
Gray Level	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840	3840
Max. Power Consumption (W/sqm)	350	350	350	350	350	350	350
Avg. Power Consumption (W/sqm)	100-200	100-200	100-200	100-200	100-200	100-200	100-200
Protection Level	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Power Input	AC90-264V, 47-63Hz
Working Temperature/Humidity (°C/RH)	-20~60℃/10%~85%
Storage Temperature/Humidity (°C/RH)	-20~60℃/10%~85%
Cert.	CCC/CE/RoHS/FCC/CB/TUV/IEC
