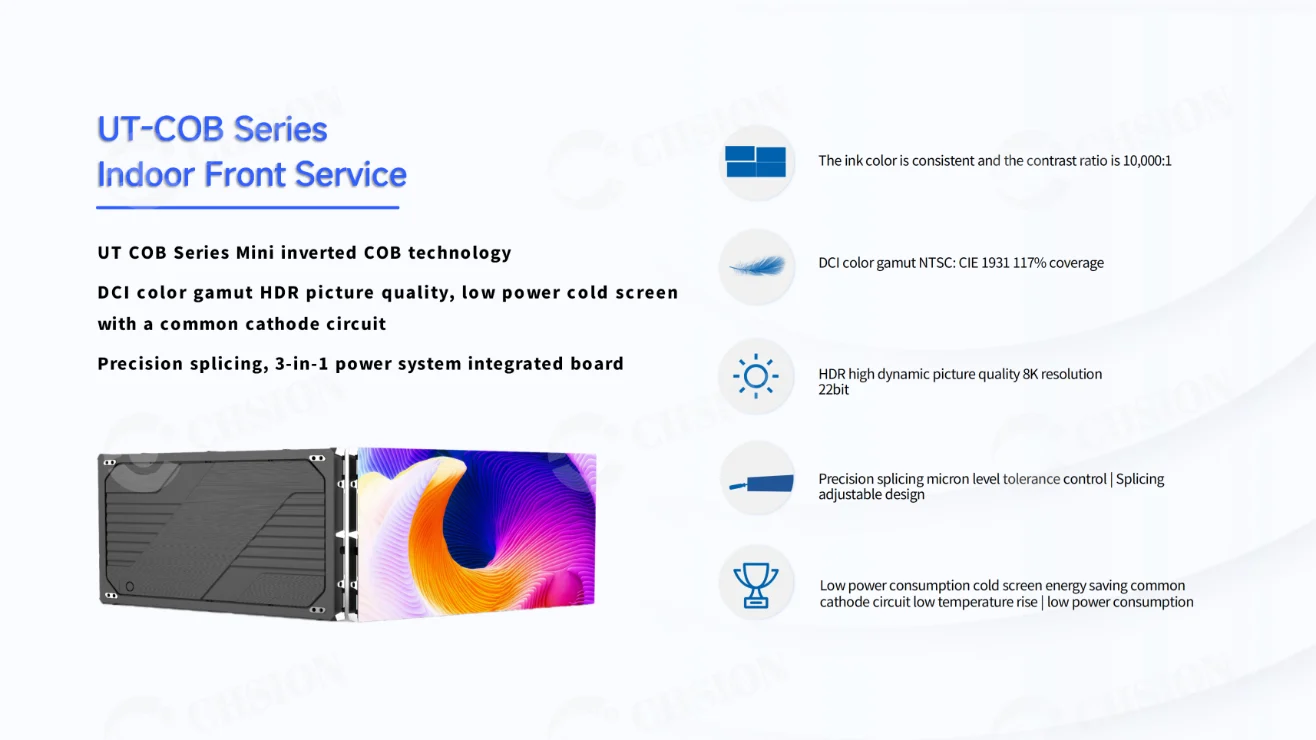

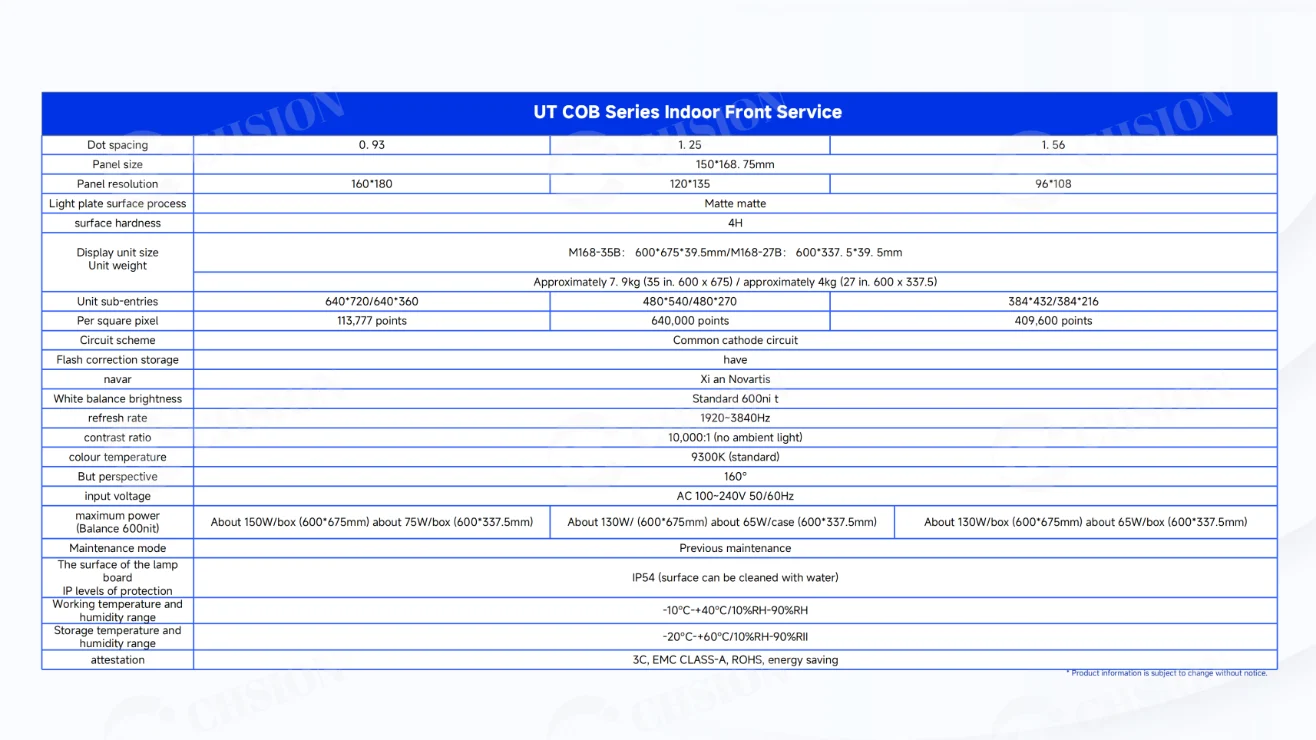

| UT COB Series Indoor Front Service |
| Dot Spacing |
0.93 |
1.25 |
1.56 |

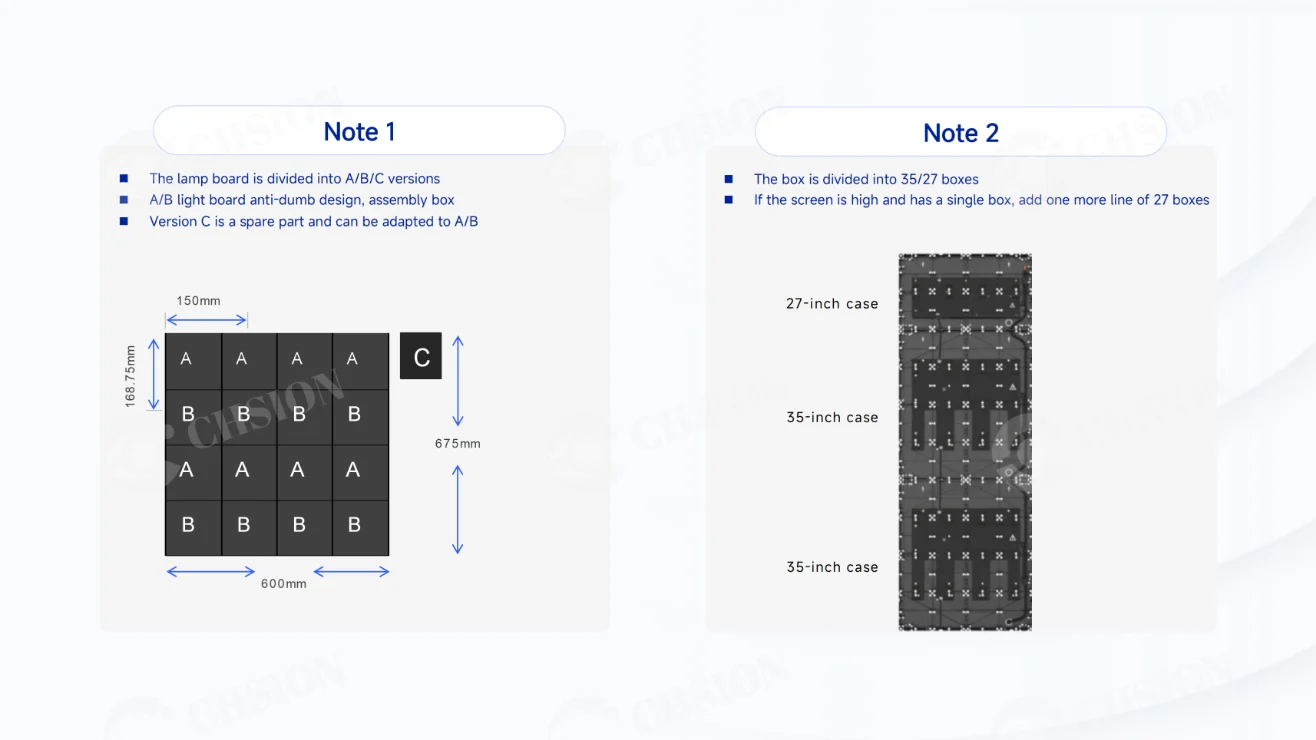

| Panel Size |
150*168.75mm |
| Panel Resolution |
160*180 |
120*135 |
96*108 |

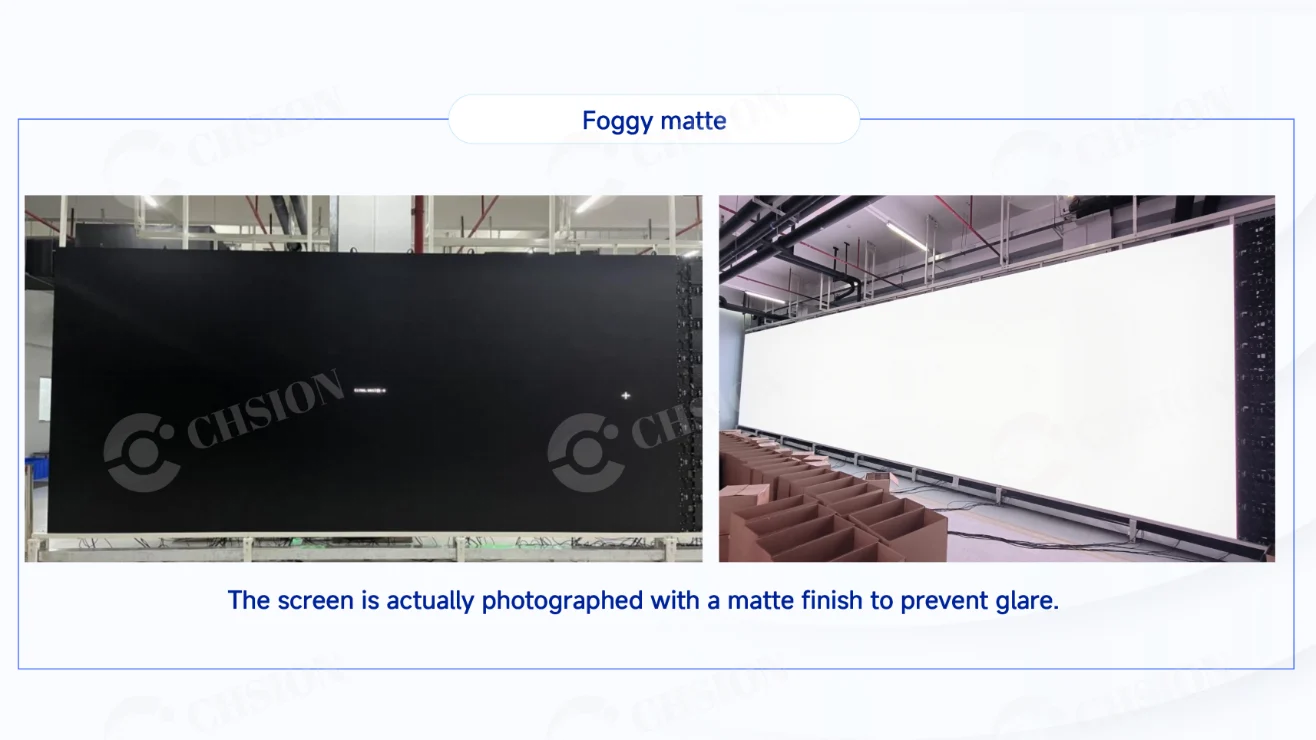

| Light Plate Surface Process |
Matte |
| Surface Hardness |
4H |

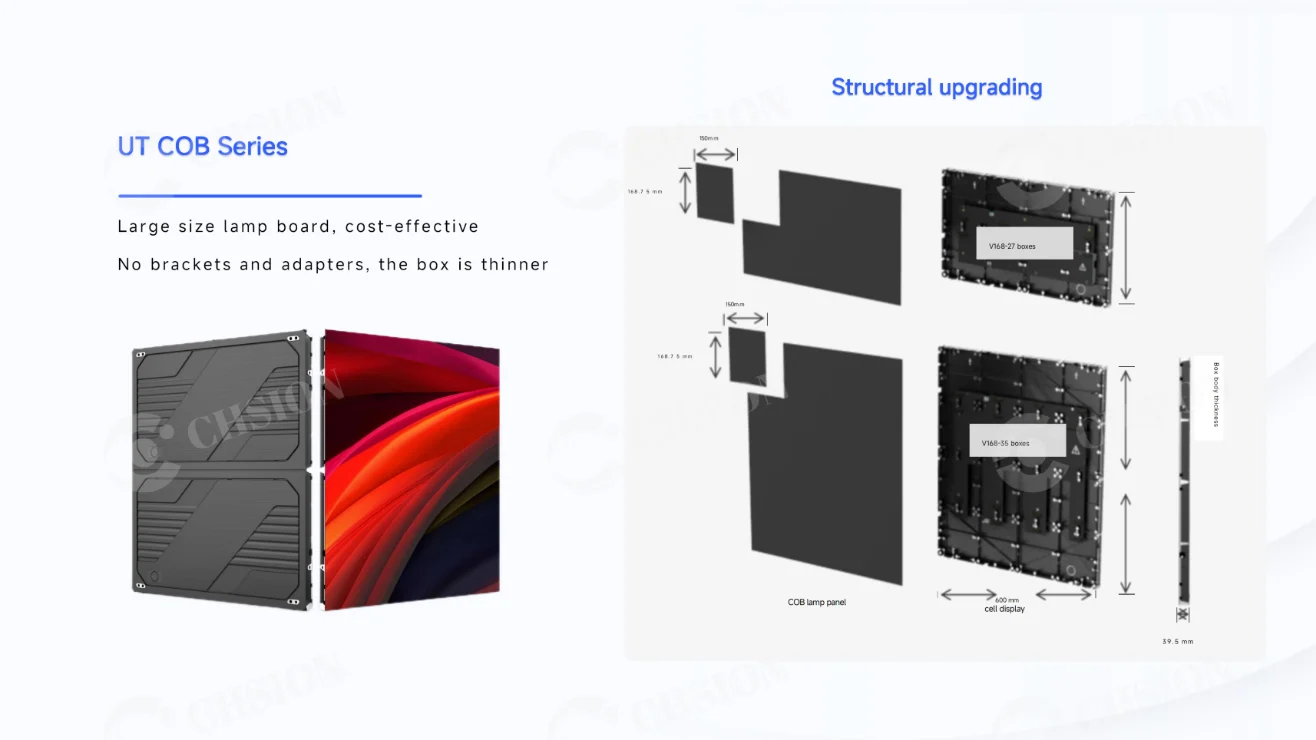

| Display Unit Size |

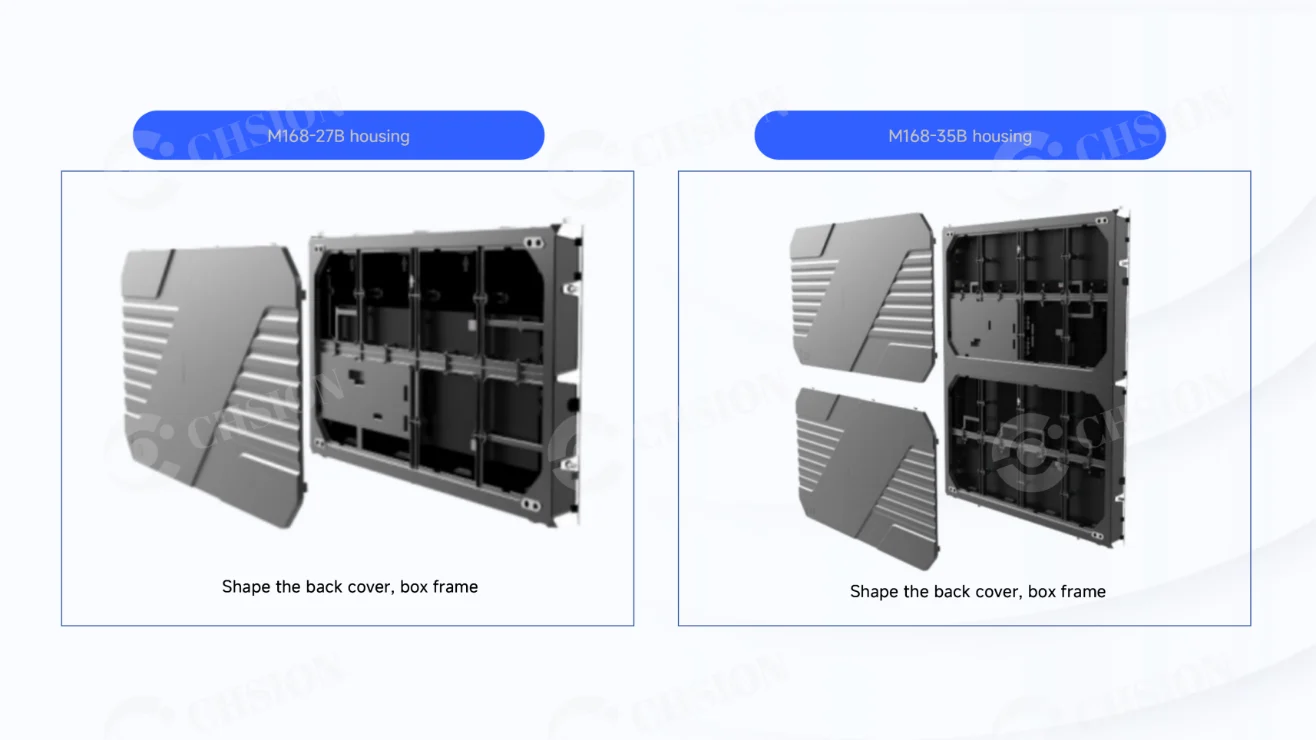

M168-35B:600*675*39.5mm/M168-27B:600*337.5*39.5mm |
| Unit Weight |
Approximately7.9kg (35 in.600×675) / approximately 4kg (27 in.600×337.5) |
| Unit Sub-entries |
640*720/640*360 |
480*540/480*270 |
384*432/384*216 |
| Per Square Pixel |
113,777 points |
640,000 points |
409,600 points |
| Circuit Scheme |
Common cathode circuit |
| Flash Correction Storage |
Have |
| Navar |
Xi an Novartis |
| White Balance Brightness |
Standard 600nit |
| Refresh Rate |
1920~3840Hz |

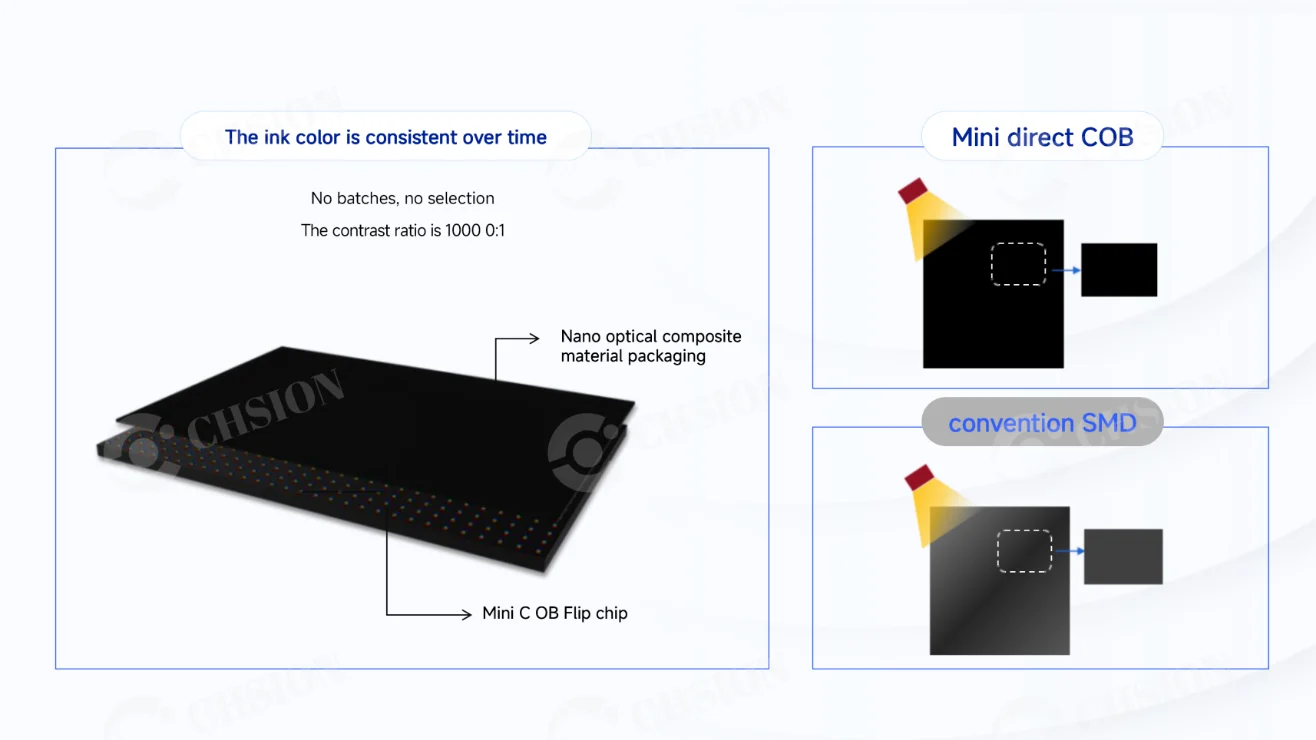

| Contrast Ratio |
10,000:1(no ambient light) |

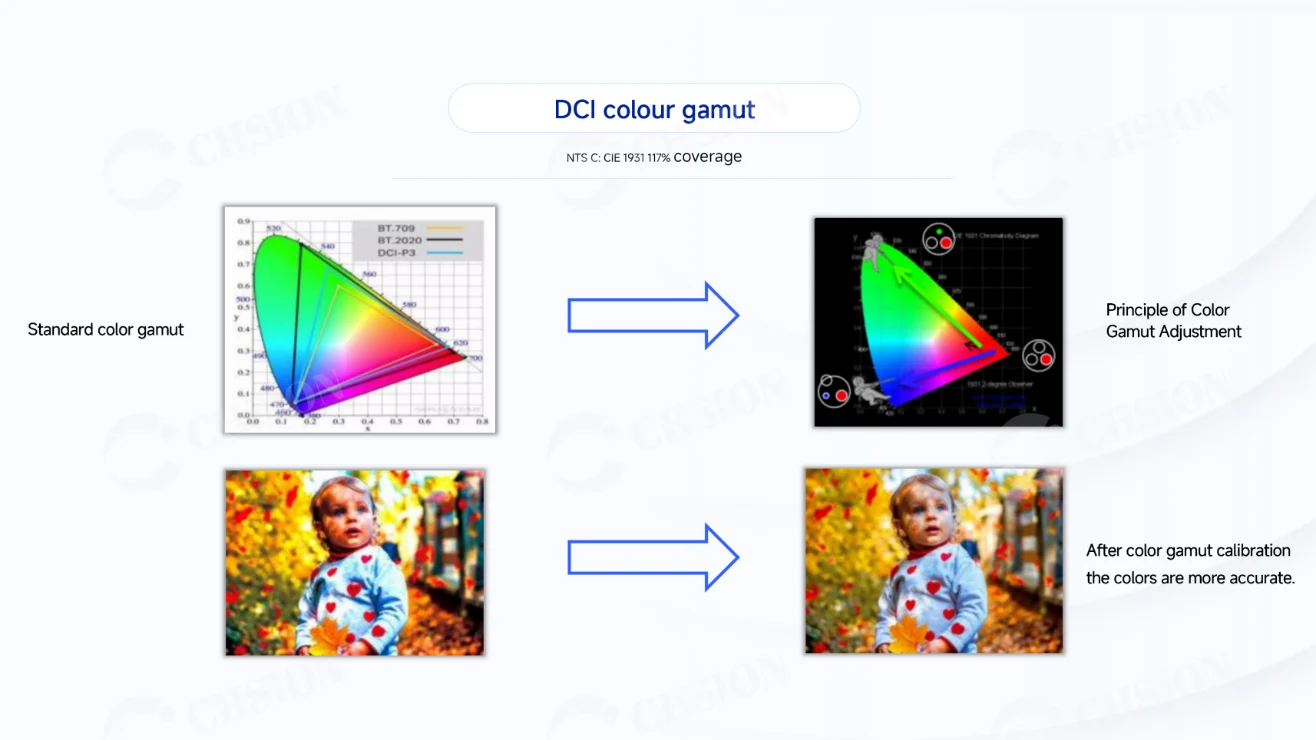

| Colour Temperature |
9300K (standard) |
| But Perspective |
160° |
| Input Voltage |
AC 100~240V 50/60Hz |

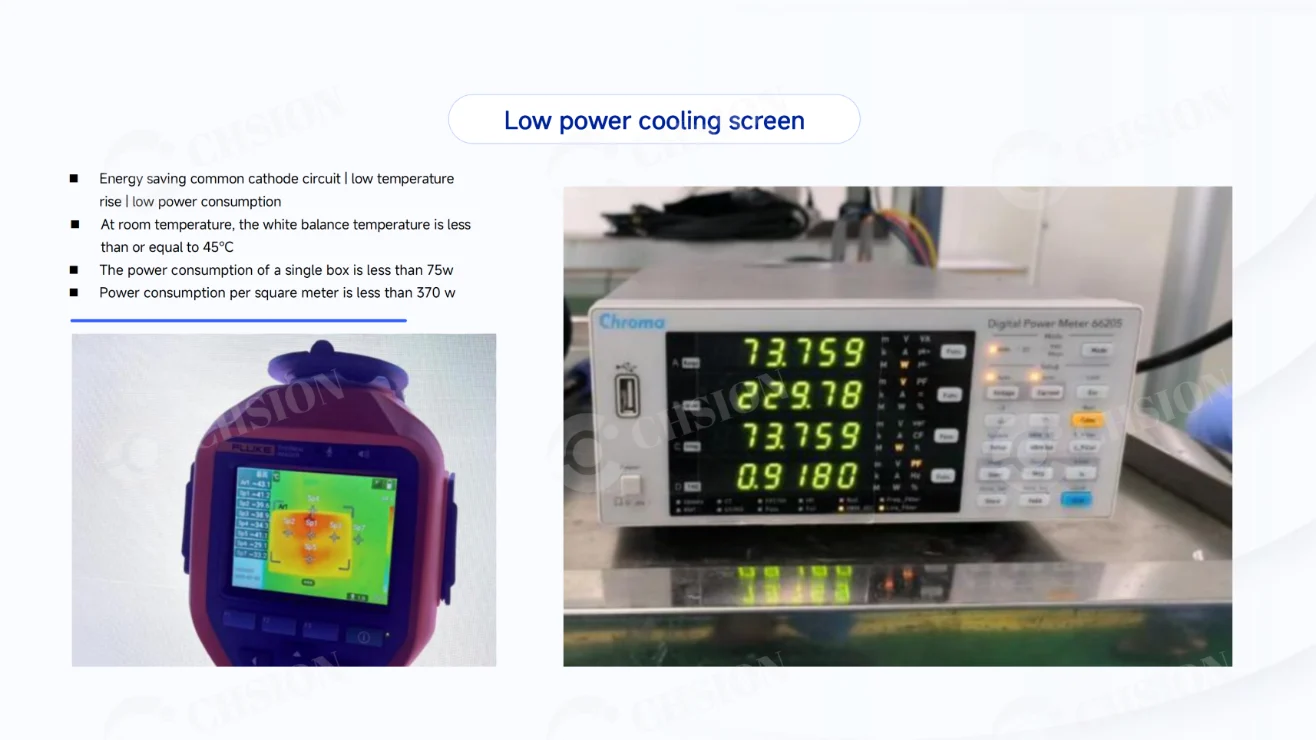

Maximum Power
(Balance 600nit) |
About 150W/box(600*675mm) about 75W/box(600*337.5mm) |
About 130W/ (600*675mm) about 65W/case (600*337.5mm) |
About 130W/box (600*675mm) about 65W/box (600*337.5mm) |
| Maintenance Mode |
Previous maintenance |
The Surface of the Lamp
Board

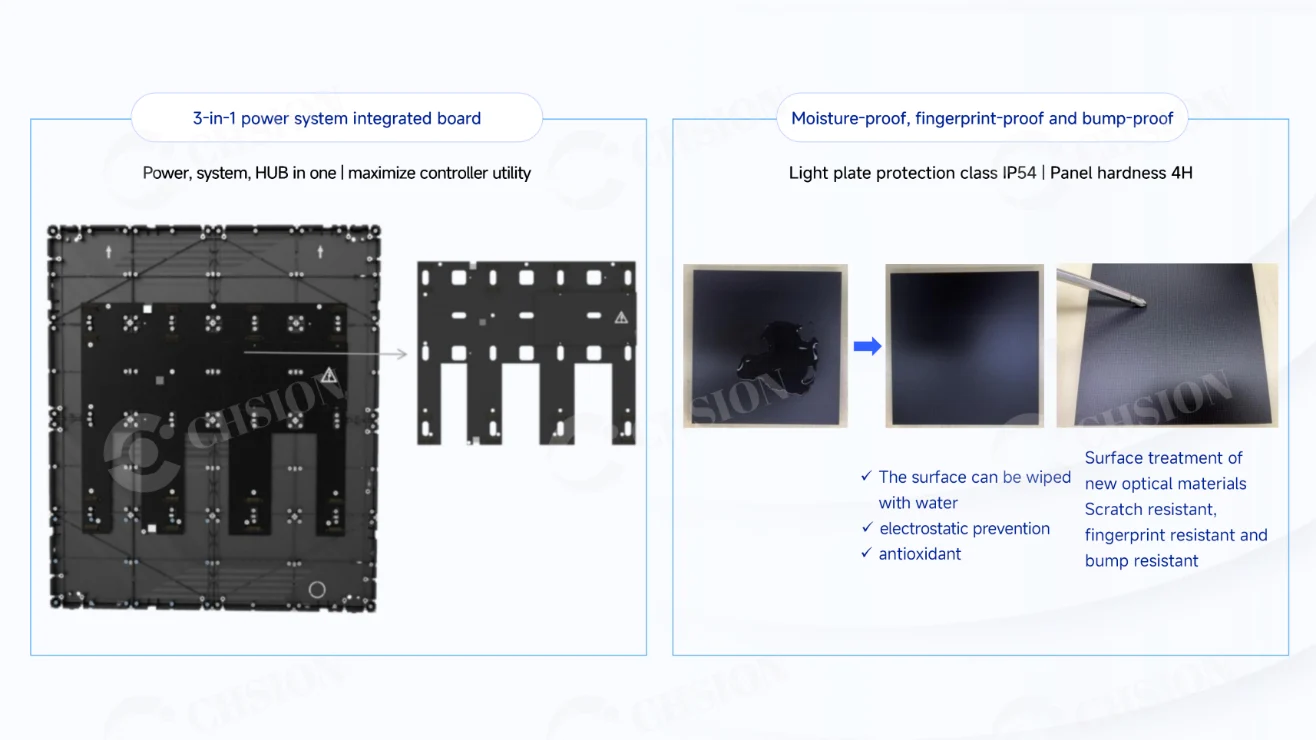

IP Levels of Protection |
IP54 (surface can be cleaned with water) |
Working Temperature and
Humidity Range |
-10°C-+40°C/10%RH-90%RH |
Storage Temperature and
Humidity Range |
-20°C-+60°C/10%RH-90%RII |
| Attestation |
3C, EMC CLASS-A, ROHS, energy saving |
