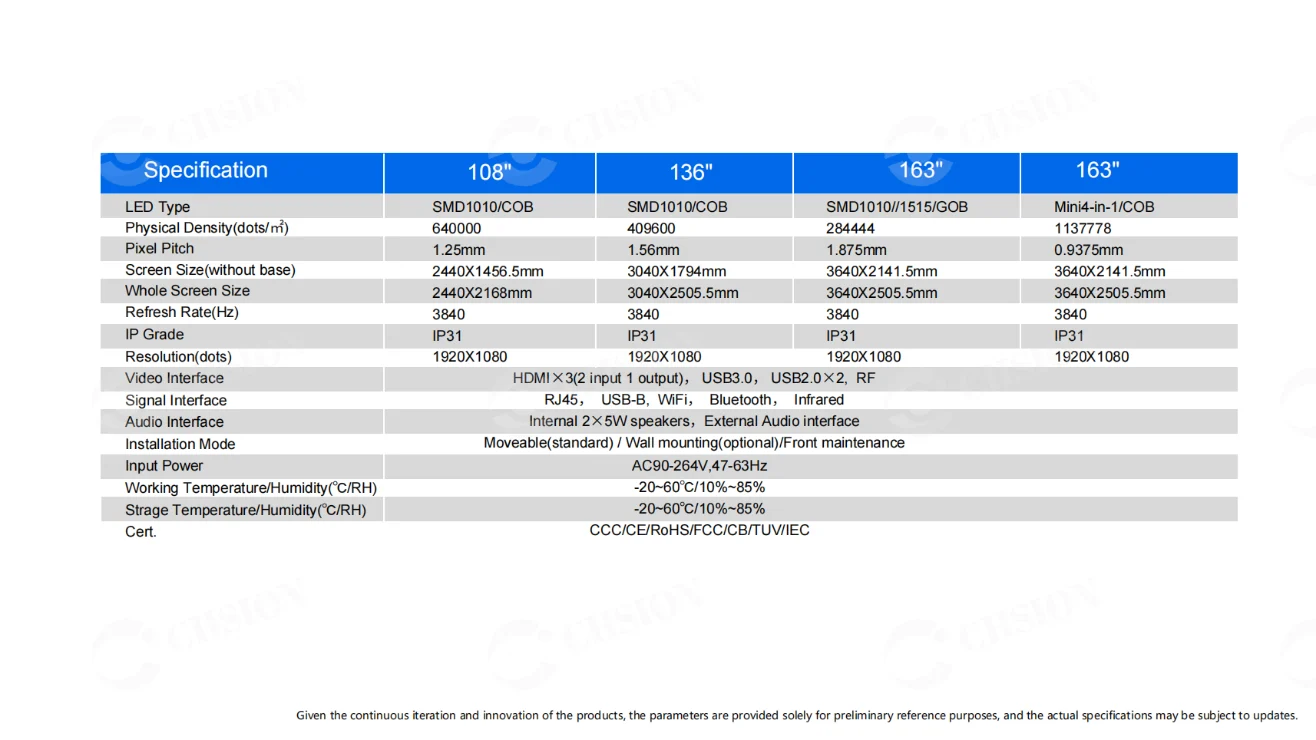

| Specification |

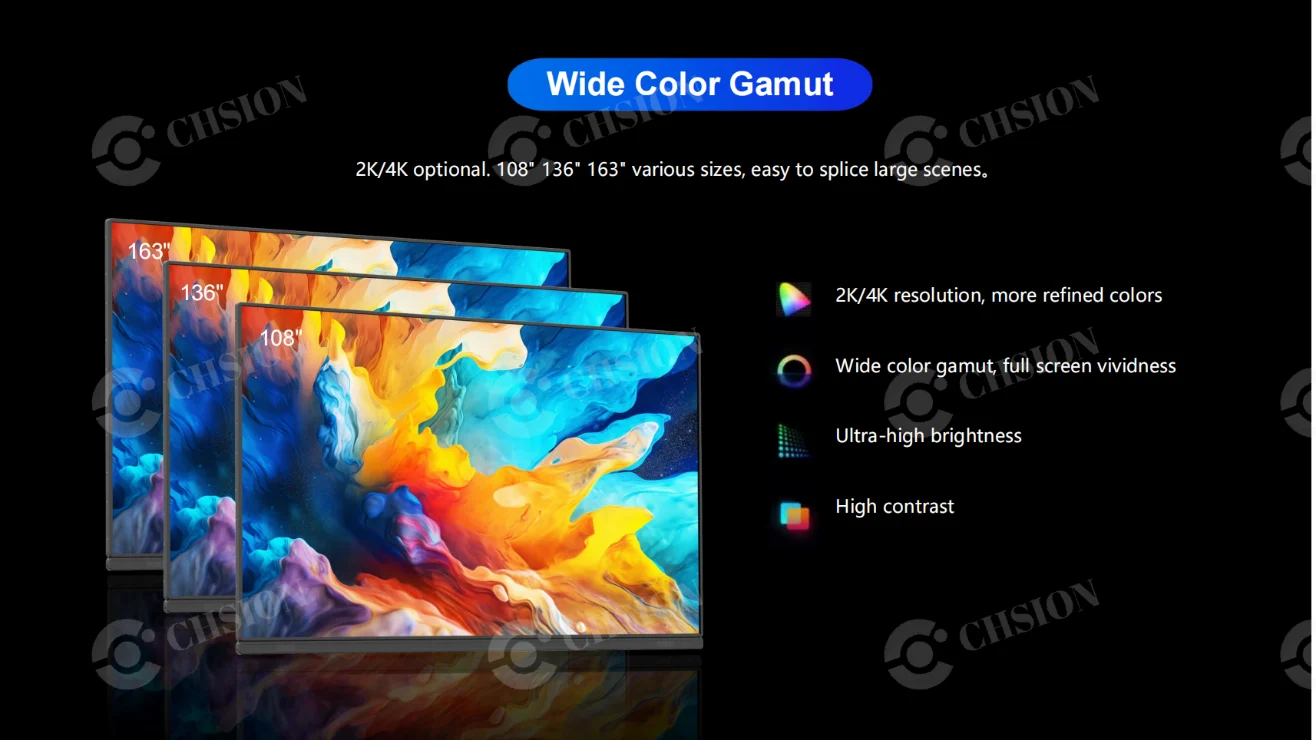

108″ |
136″ |
163″ |
163″ |
| LED Type |
SMD1010/COB |
SMD1010/COB |
SMD1010/1515/GOB |
Mini4-in-1/COB |
| Physical Density(dots/m3) |
640000 |
409600 |
284444 |
1137778 |
| Pixel Pitch |
1.25mm |
1.56mm |
1.875mm |
0.9375mm |
| Screen Size(without base) |
2440×1456.5mm |
3040×1794mm |
3640×2141.5mm |
3640×2141.5mm |
| Whole Screen Size |
2440×2168mm |
3040×2505.5mm |
3640×2505.5mm |
3640×2505.5mm |
| Refresh Rate(Hz) |
3840 |
3840 |
3840 |
3840 |
| IP Grade |
IP31 |
IP31 |
IP31 |
IP31 |
| Resolution(dots) |
1920×1080 |
1920×1080 |
1920×1080 |
1920×1080 |

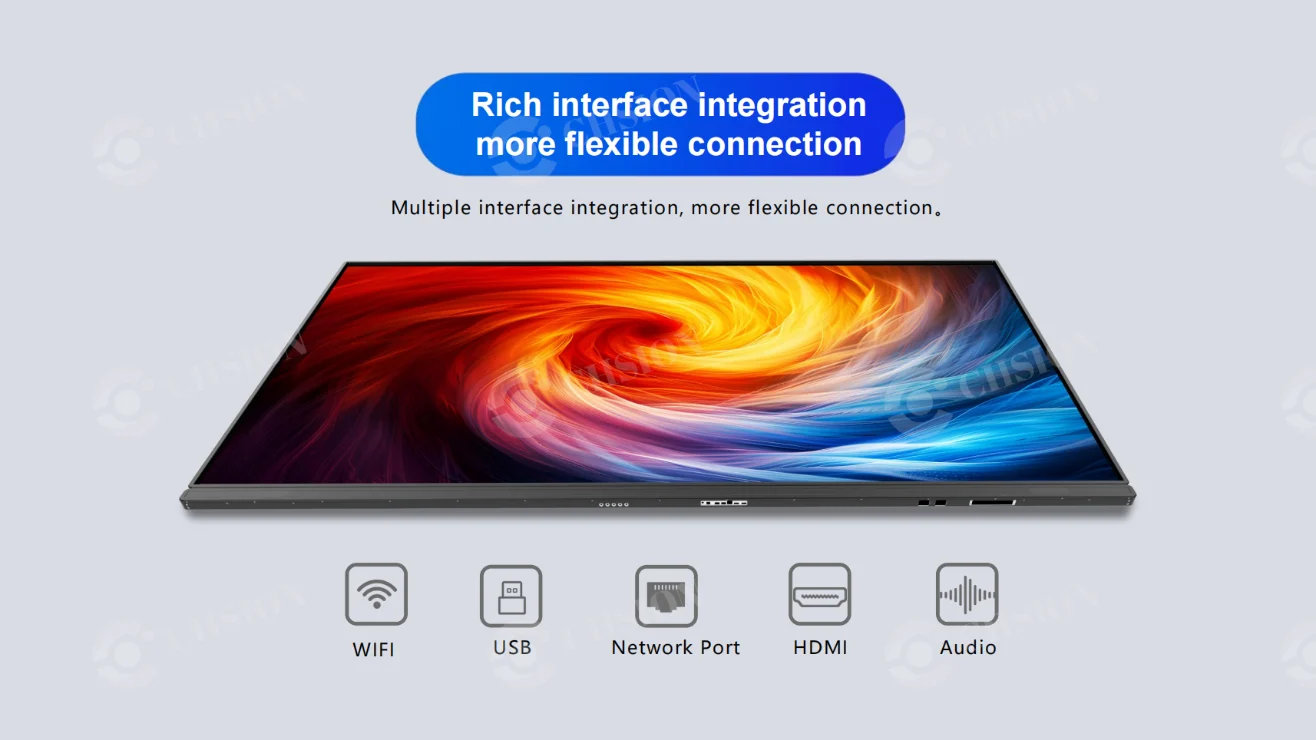

| Video Interface |
HDMI×3(2 input 1 output), USB3.0, USB2.0×2, RF |
| Signal Interface |
RJ45, USB-B, WiFi, Bluetooth, Infrared |
| Audio Interface |
Internal 2X5W speakers, External Audio interface |

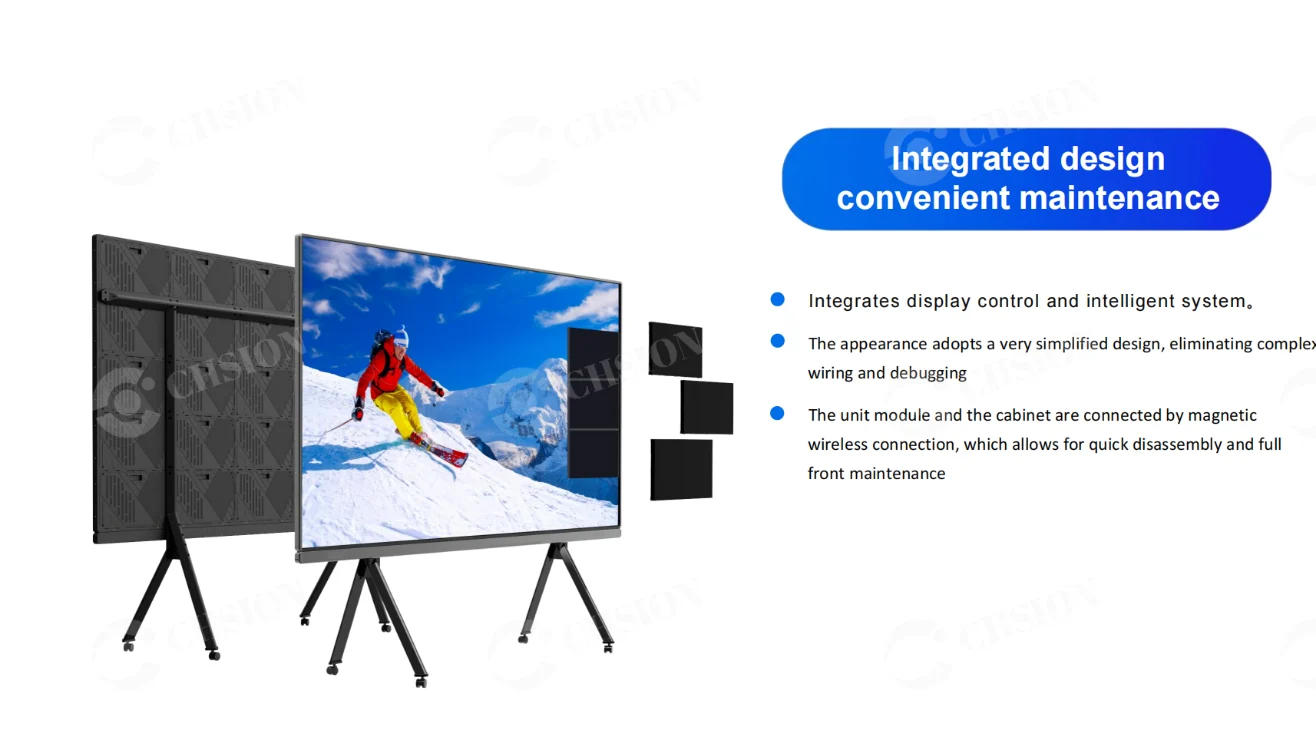

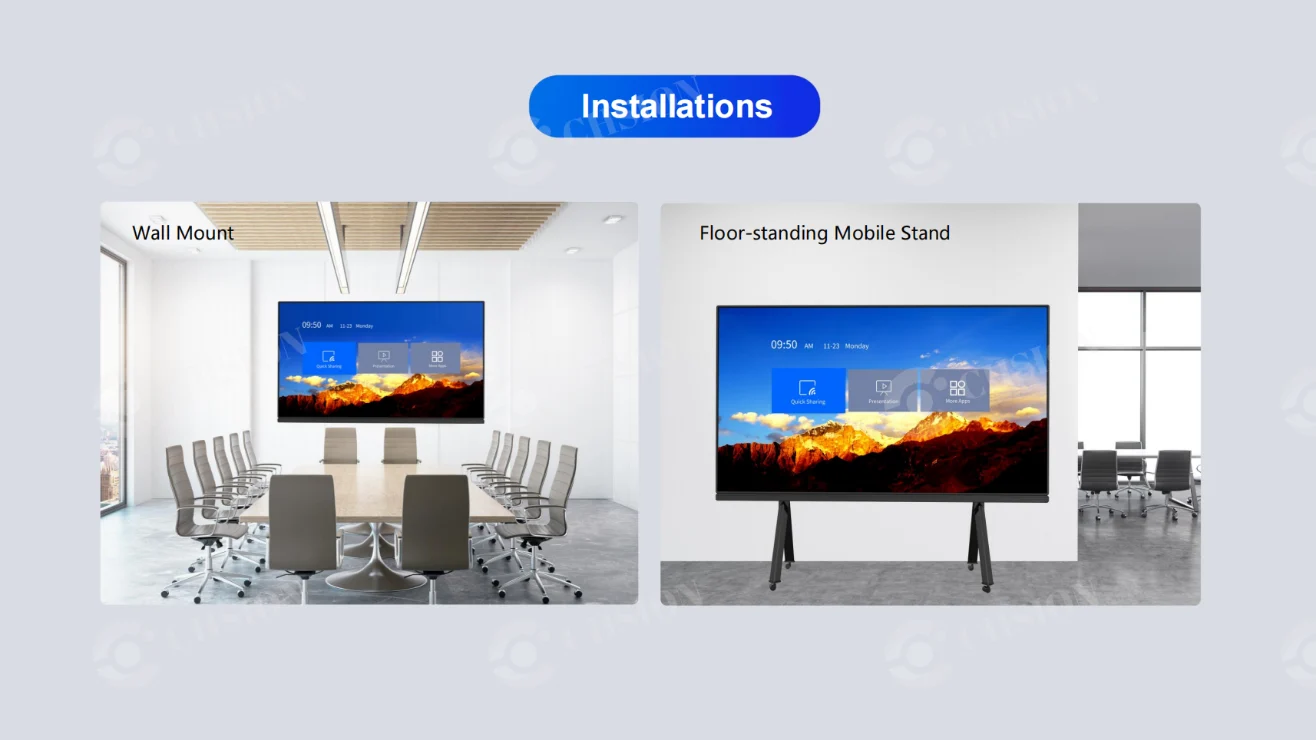

| Installation Mode |
Moveable(standard) / Wall mounting(optional)/Front maintenance |
| Input Power |
AC90-264V,47-63Hz |
| Working Temperature/Humidity(°C/RH) |
-20~60℃/10%~85% |
| Strage Temperature/Humidity(°C/RH) |
-20~60℃/10%~85% |
| Cert. |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
| Given the continuous iteration and innovation of the products, the parameters are provided solely for preliminary reference purposes, and the actual specifications may be subject to updates. |
