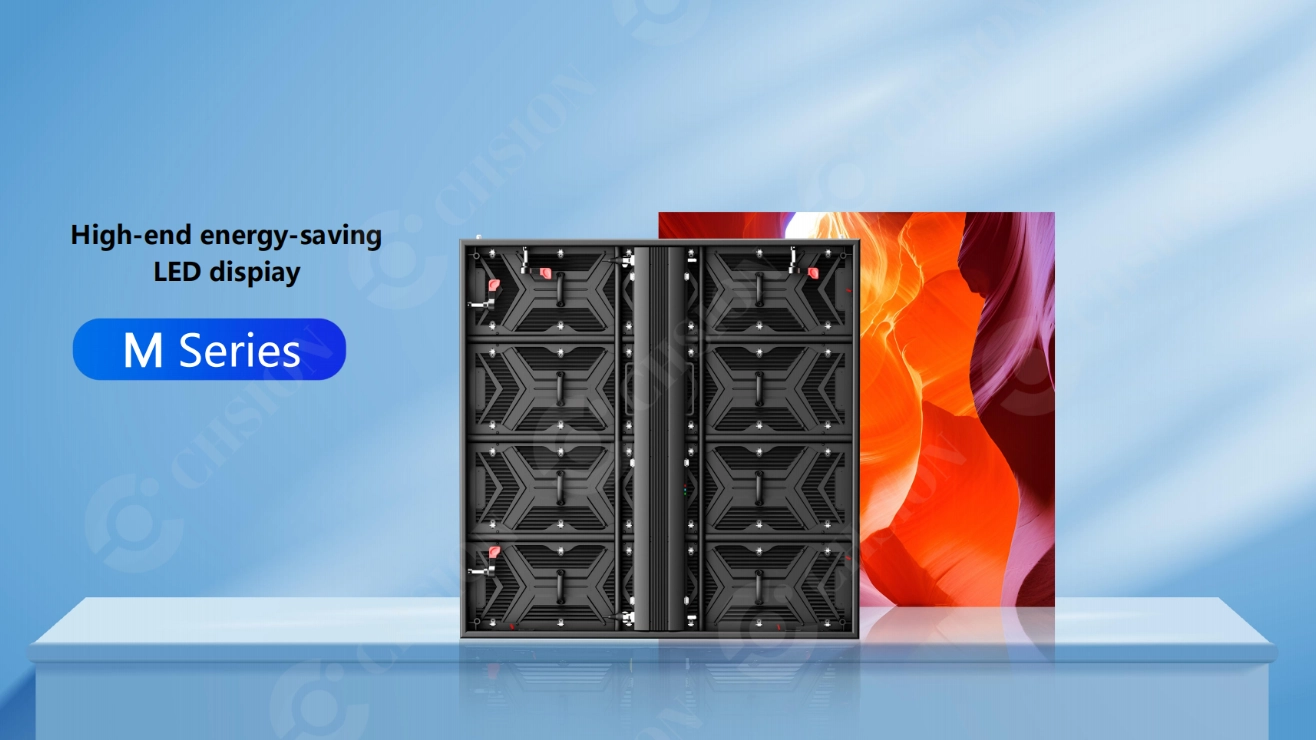

M Series

Module Size (mm): 500×250

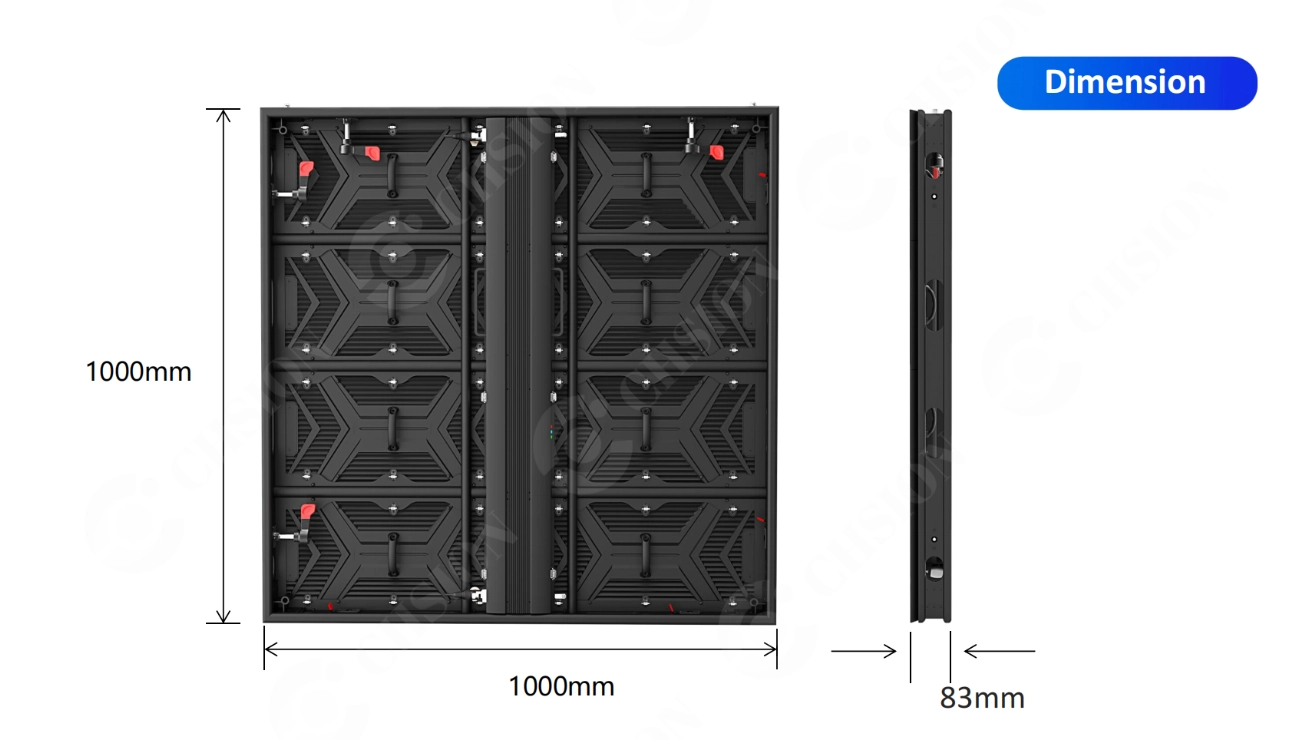

Panel Dimension(W x H/mm): 1000×1000×83(Customizable for 1500 width and 500/750 height)
Panel Resolution: 336×336
Module quantity(W x H): 2×4
Cabinet material: Aluminum
GreyLevel: 16bit

Quote Now Next

Features
Specifications

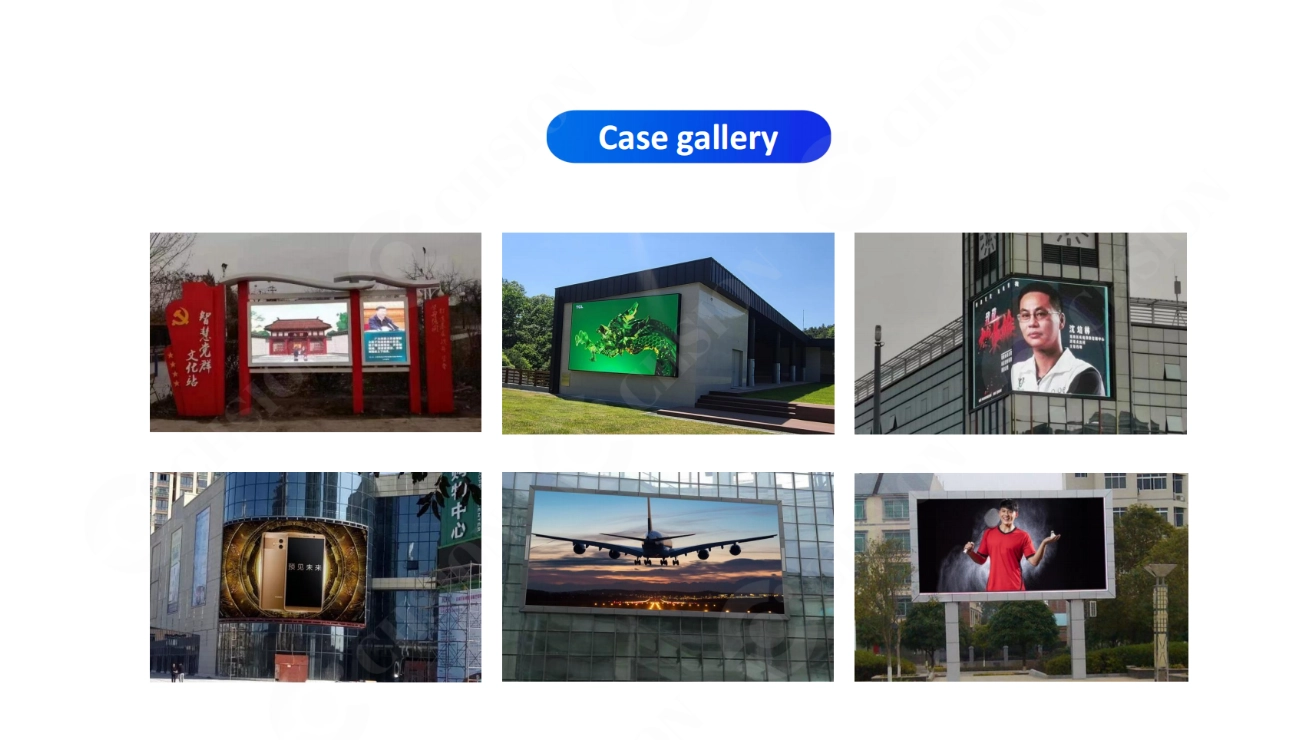

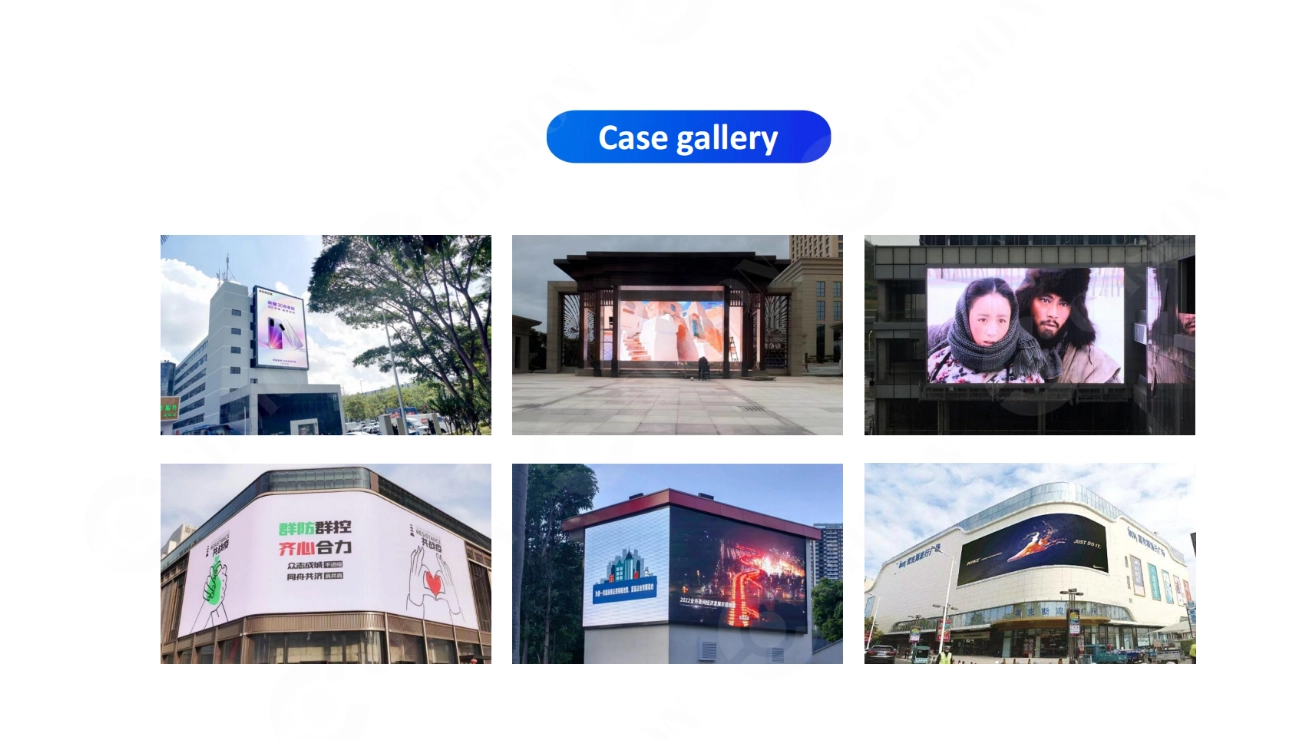

Cases

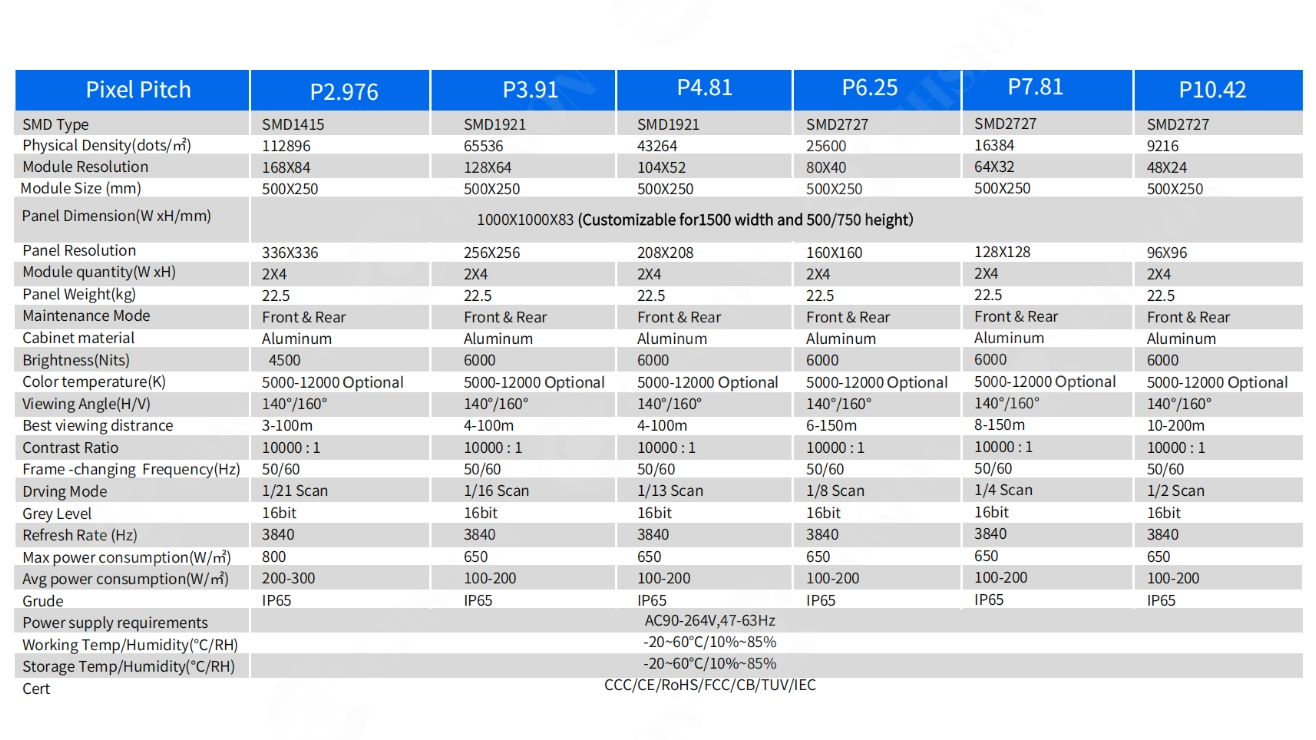

Pixel Pitch	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
SMD Type	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density(dots/m)	112896	65536	43264	25600	16384	9216
Module Resolution	168×84	128×64	104×52	80×40	64×32	48×24
Module Size(mm)	500×250	500×250	500×250	500×250	500×250	500×250
Panel Dimension(WxH/mm)	1000×1000×83(Customizable for 1500 width and 500/750 height)
Panel Resolution	336×336	256×256	208×208	160×160	128×128	96×96
Module Quantity(WxH)	2×4	2×4	2×4	2×4	2×4	2×4

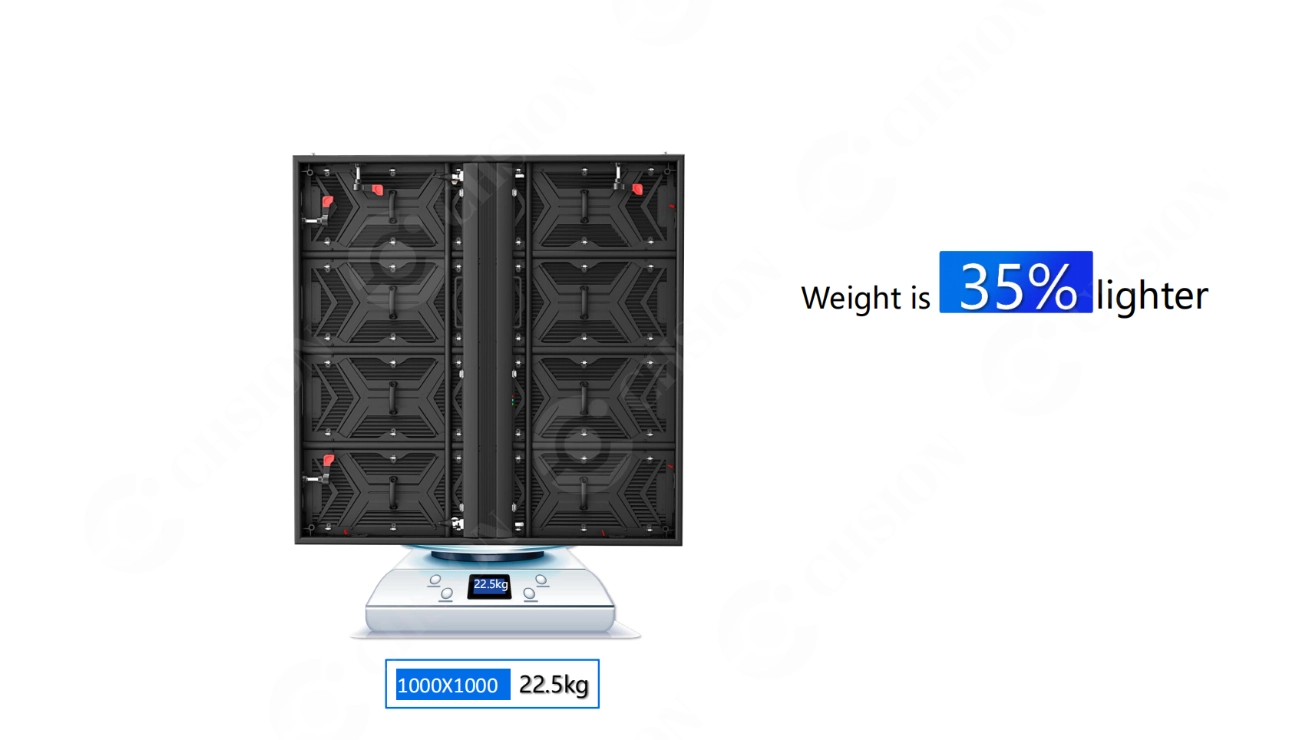

Panel Weight(kg)	22.5	22.5	22.5	22.5	22.5	22.5

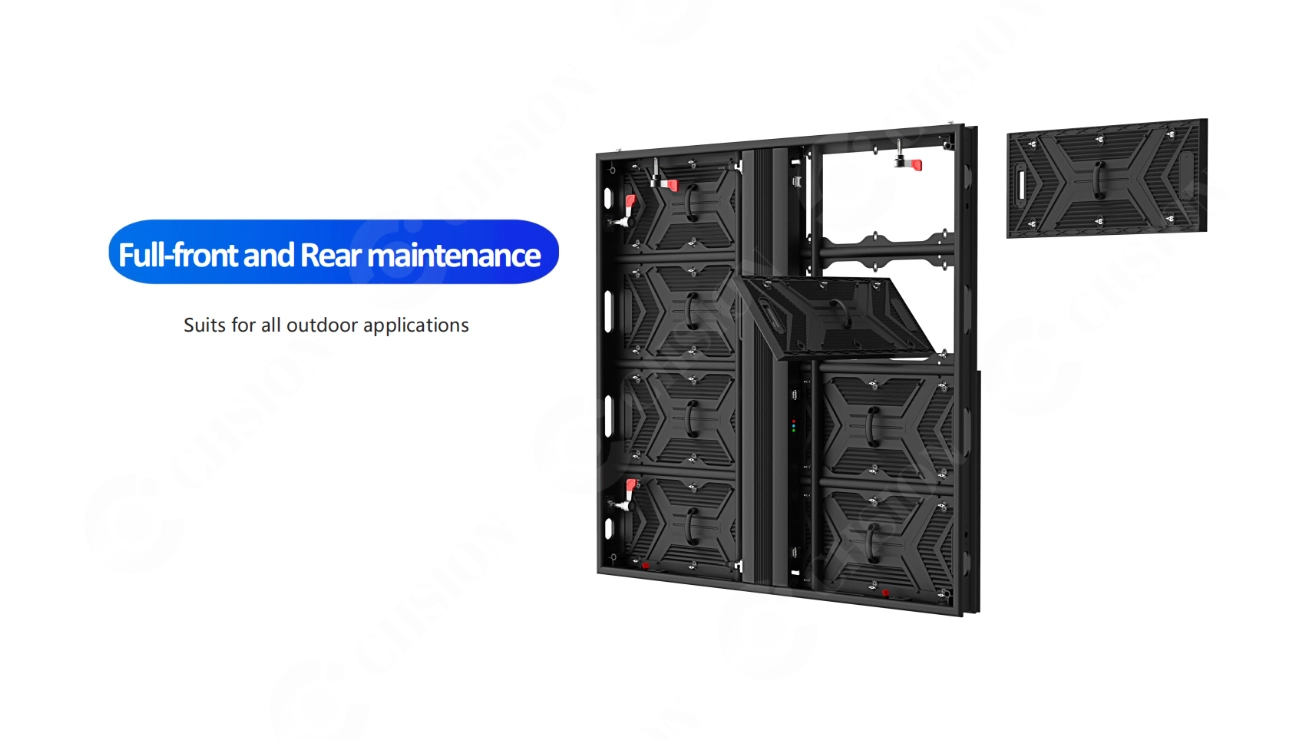

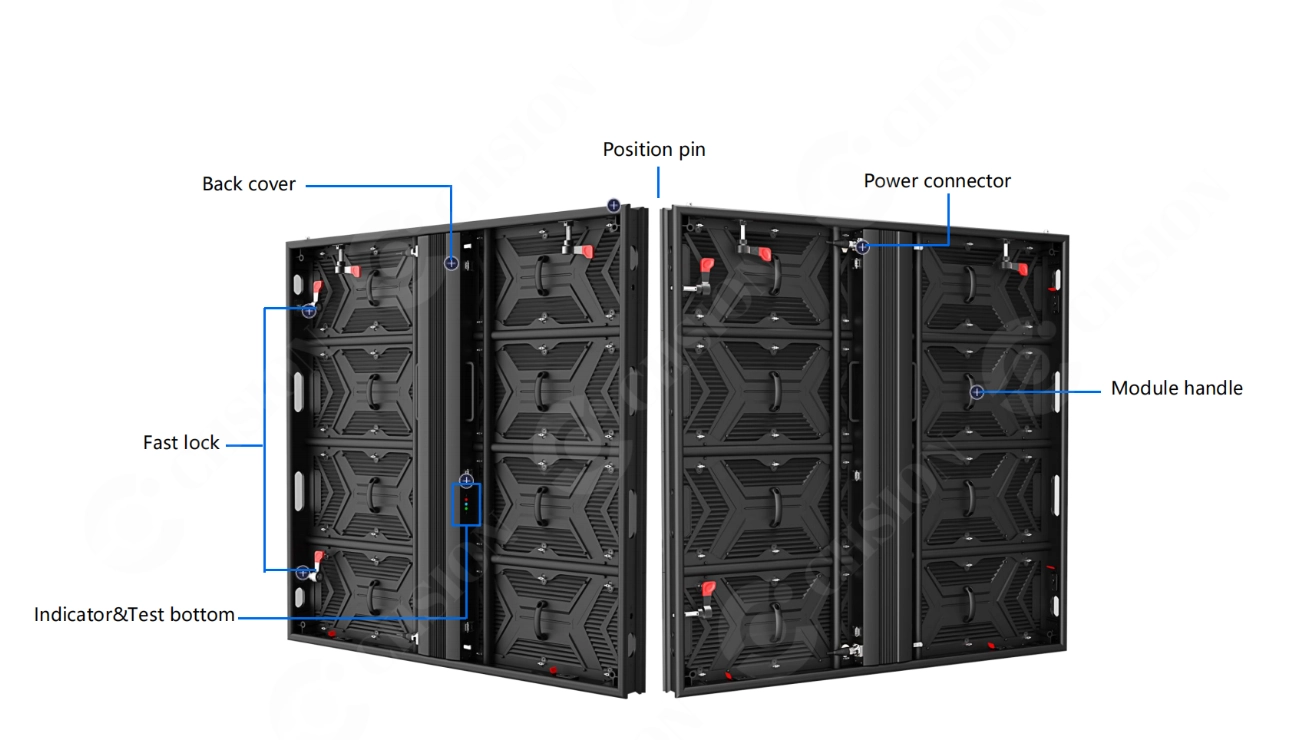

Maintenance Mode	Front&Rear	Front &Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear

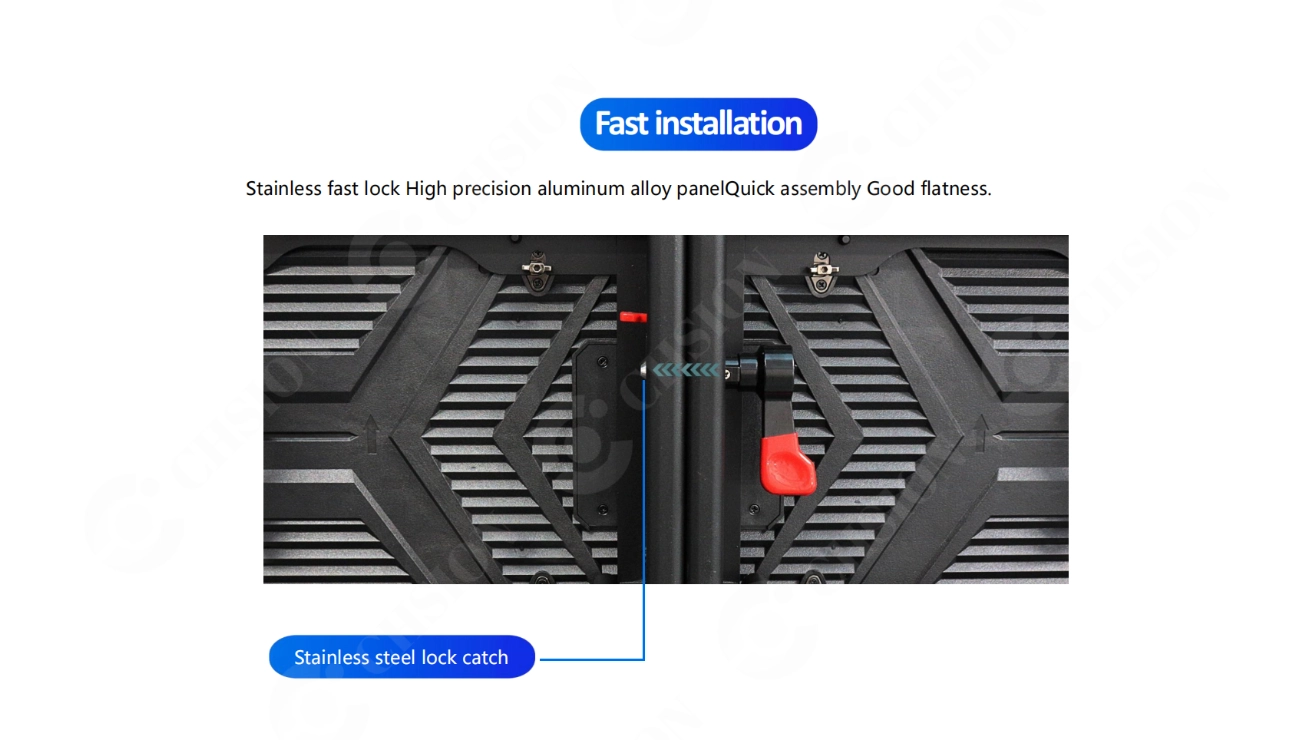

Cabinet Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Brightness(Nits)	4500	6000	6000	6000	6000	6000
Color Temperature(K)	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional
Viewing Angle(H/V)	140°/160°	140°/160°	140°/160°	140°/160°	140°/160°	140°/160°
Best Viewing Distrance	3-100m	4-100m	4-100m	6-150m	8-150m	10-200m
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Frame -changing Frequency(Hz)	50/60	50/60	50/60	50/60	50/60	50/60
Drving Mode	1/21 Scan	1/16 Scan	1/13 Scan	1/8 Scan	1/4 Scan	1/2 Scan
Grey Level	16bit	16bit	16bit	16bit	16bit	16bit
Refresh Rate(Hz)	3840	3840	3840	3840	3840	3840
Max Powerconsumption(W/m)	800	650	650	650	650	650

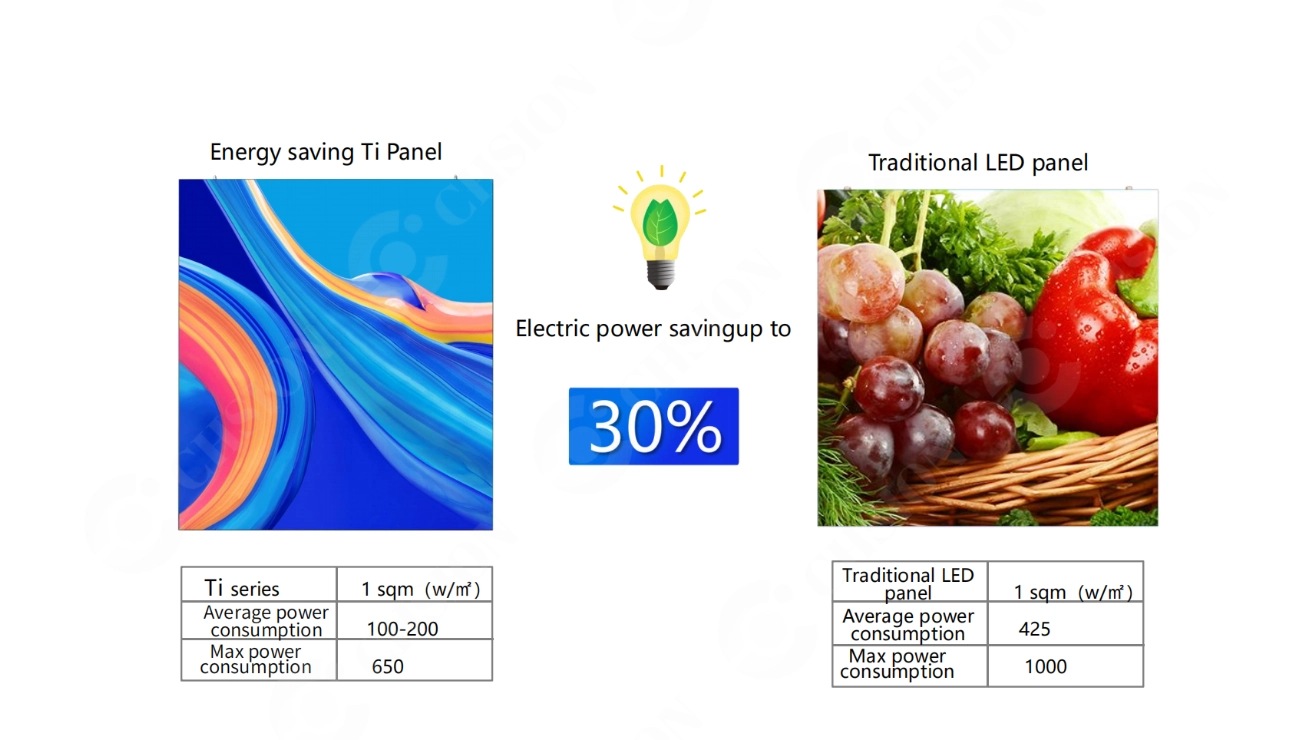

Avg Power Consumption(W/m)	200-300	100-200	100-200	100-200	100-200	100-200

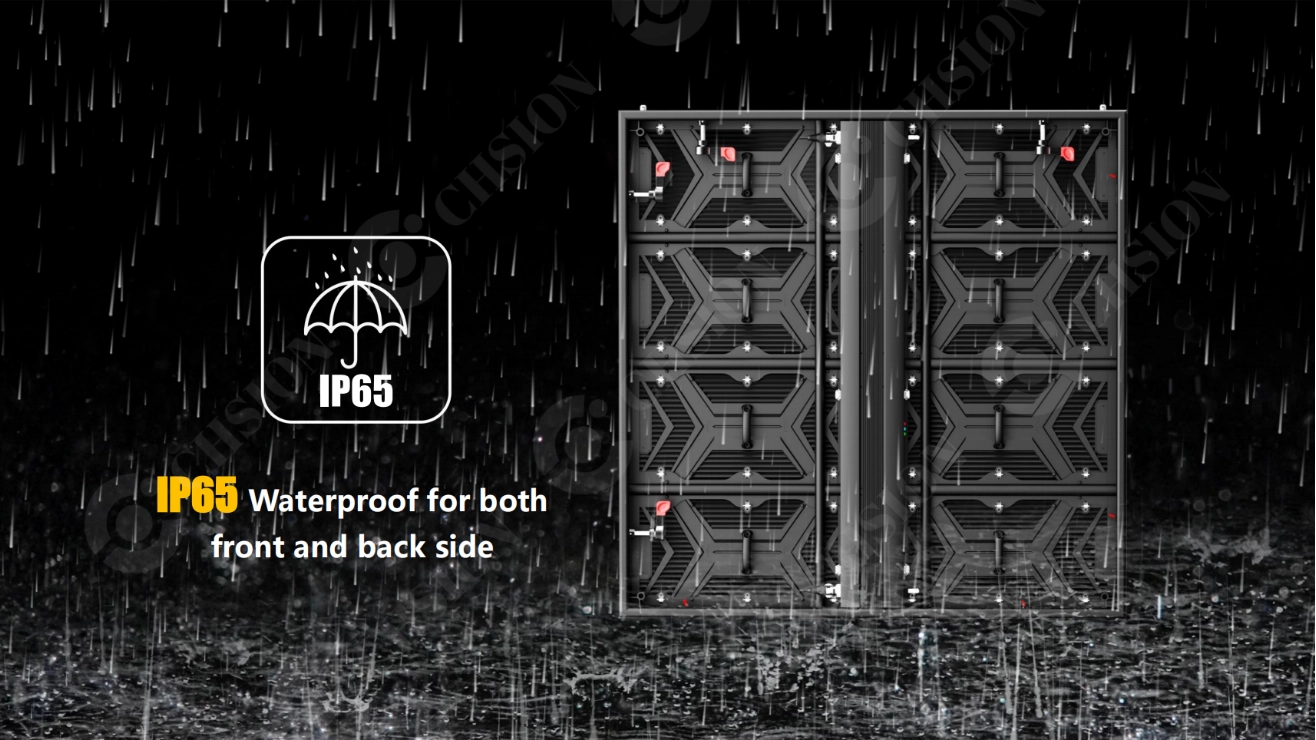

Grude	IP65	IP65	IP65	IP65	IP65	IP65
Power Supply Requirements	AC90-264V,47-63Hz
Working Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Storage Temp/Humidity(℃/RH)	-20~60℃/10%~85%
Cert	CCC/CE/RoHS/FCC/CB/TUV/IEC
