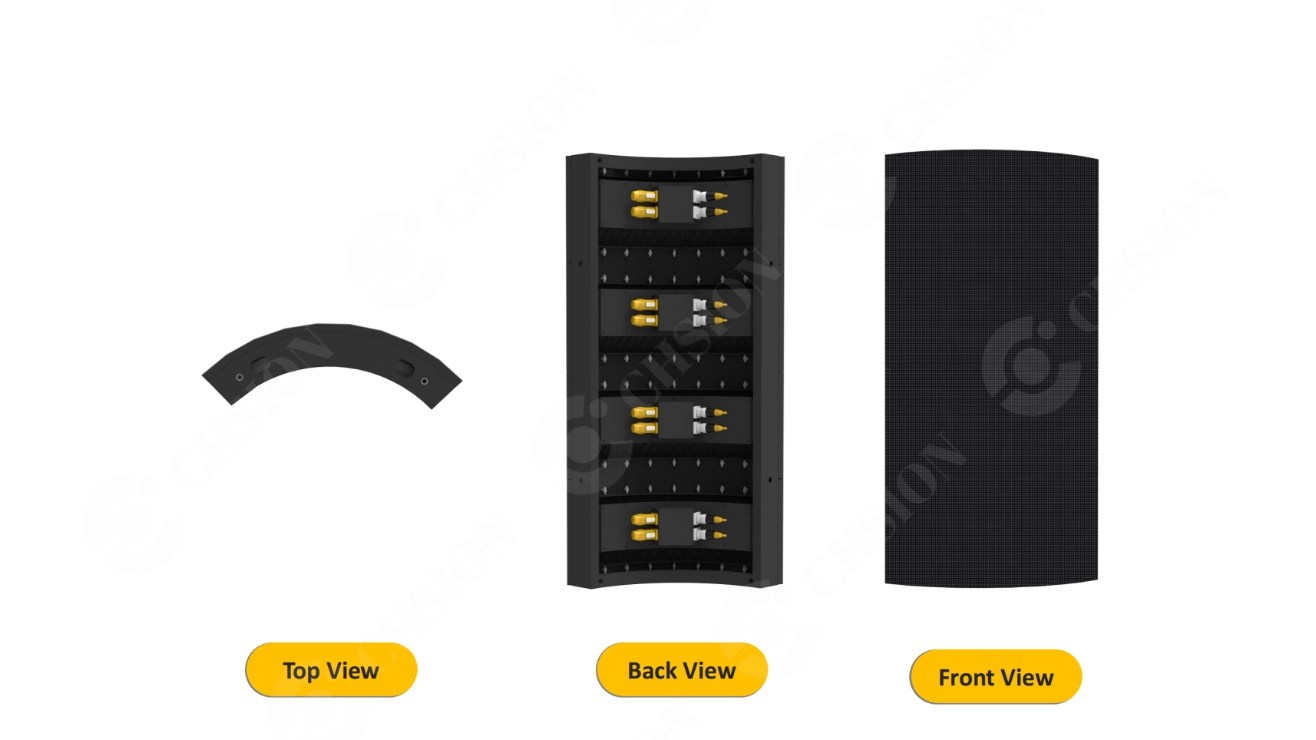

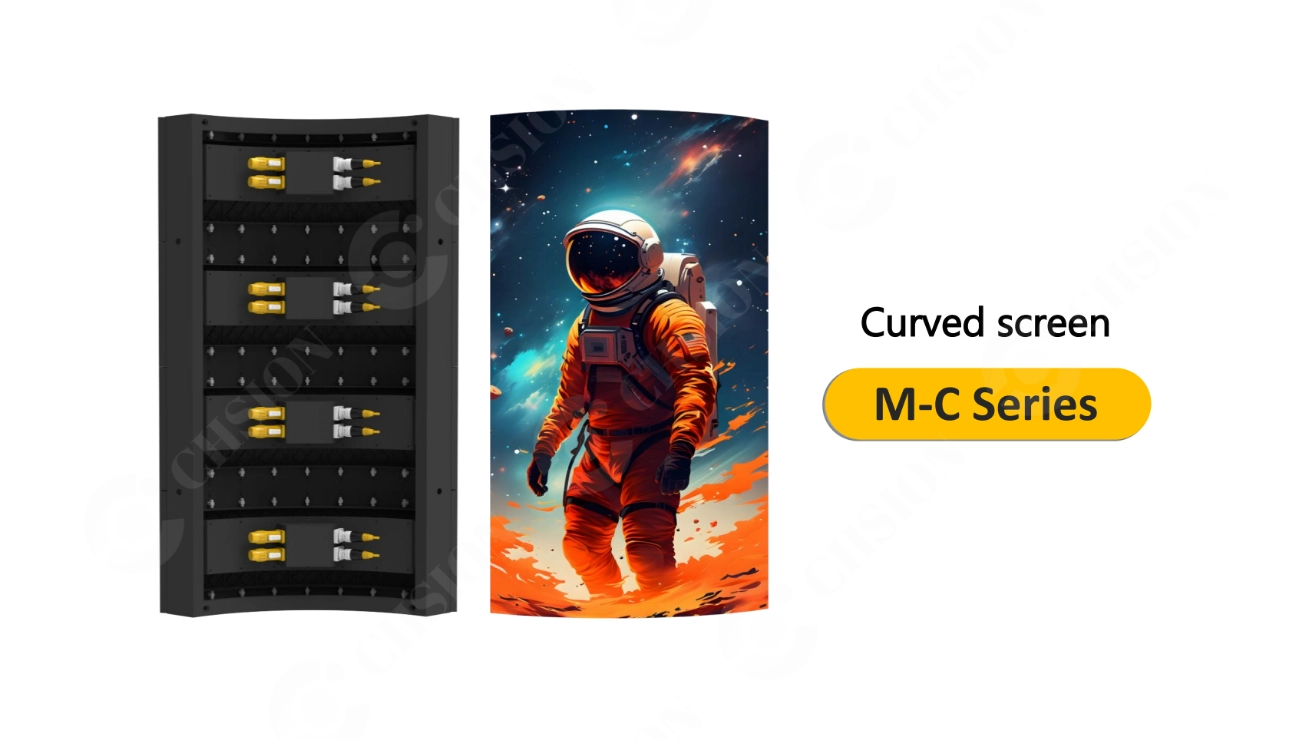

M-C Series

Maintenance Mode: Front & Rear
Material: iron
Refresh Rate(Hz): 16bit
Color Temperature(K): 5000-12000 Optional
Max Power Con.(w/m): 3840
Ave Power Con.(W/mi): 780

Quote Now

Features
Specifications
Cases

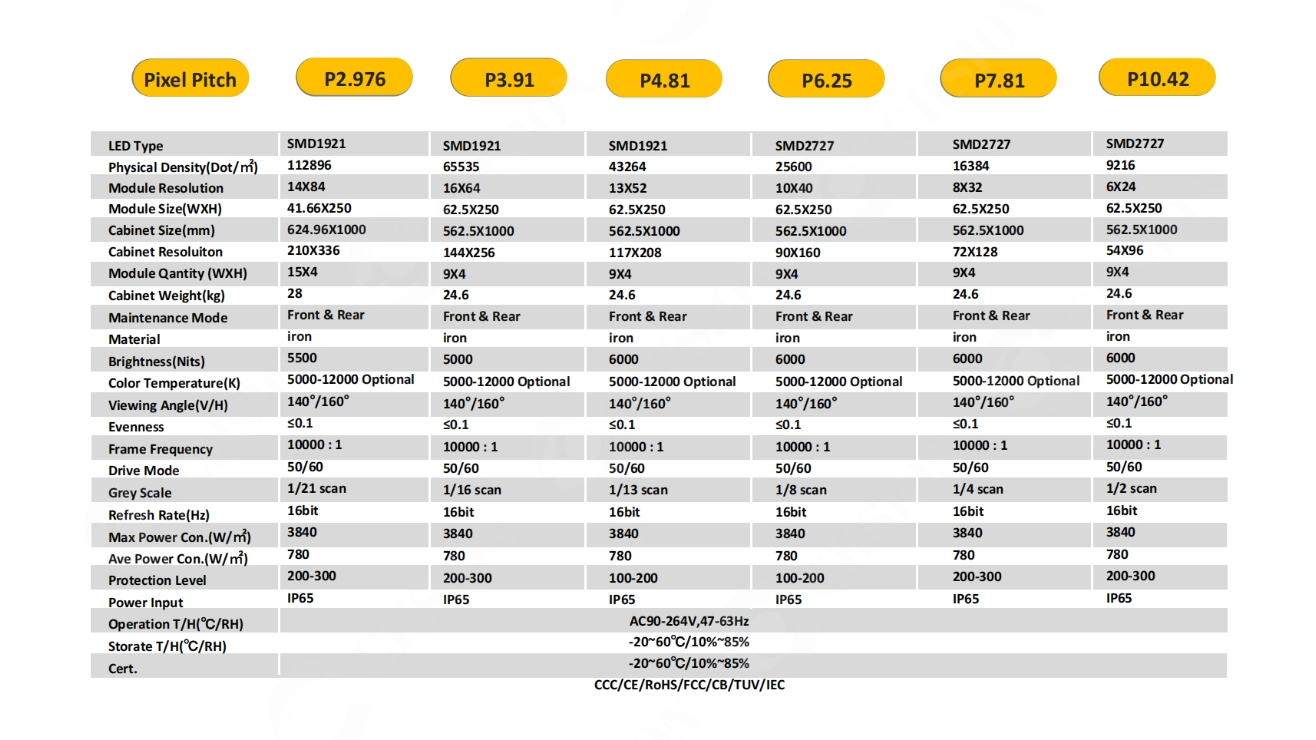

Pixel Pitch	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
LED Type	SMD1921	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density(Dot/㎡)	112896	65535	43264	25600	16384	9216
Module Resolution	14×84	16×64	13×52	10×40	8×32	6×24

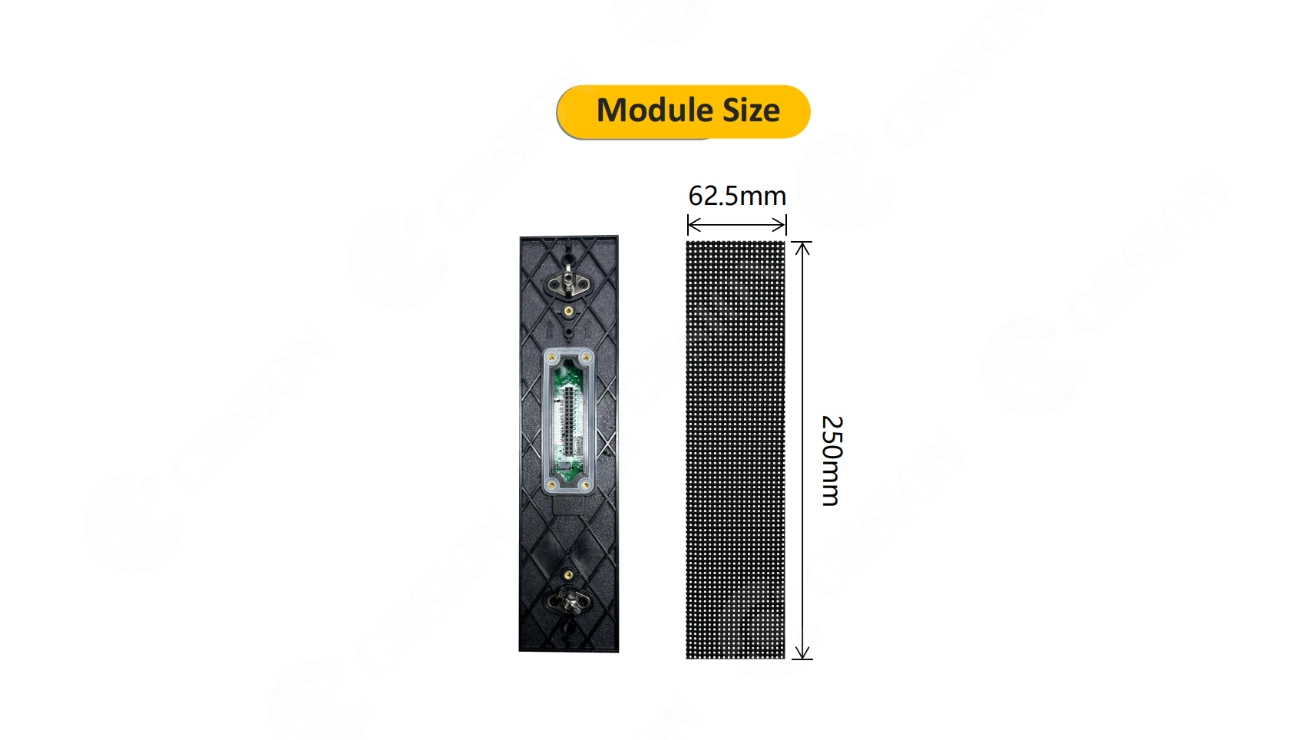

Module Size(WXH)	41.66×250	62.5X250	62.5×250	62.5×250	62.5×250	62.5×250

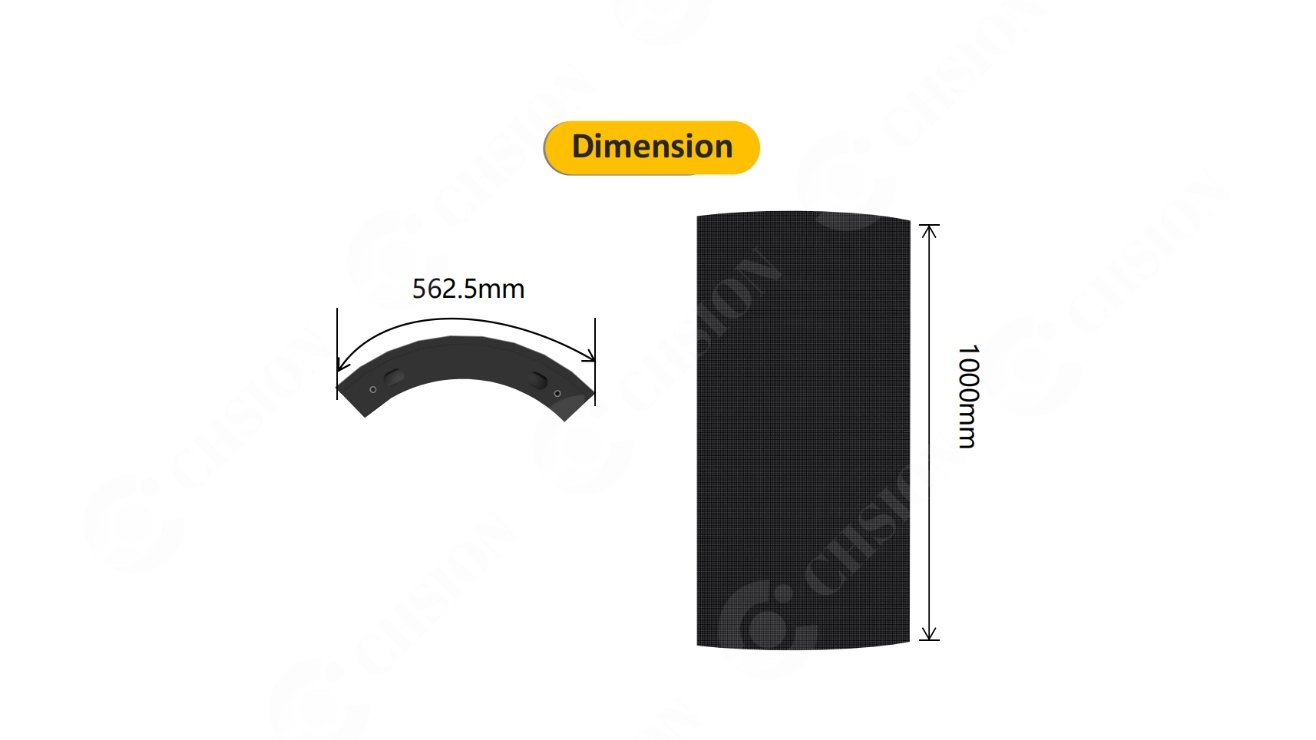

Cabinet Size(mm)	624.96×1000	562.5×1000	562.5×1000	562.5×1000	562.5×1000	562.5×1000
Cabinet Resoluiton	210×336	144×256	117×208	90×160	72×128	54×96
Module Qantity(WXH)	15×4	9×4	9×4	9×4	9×4	9×4
Cabinet Weight(kg)	28	24.6	24.6	24.6	24.6	24.6

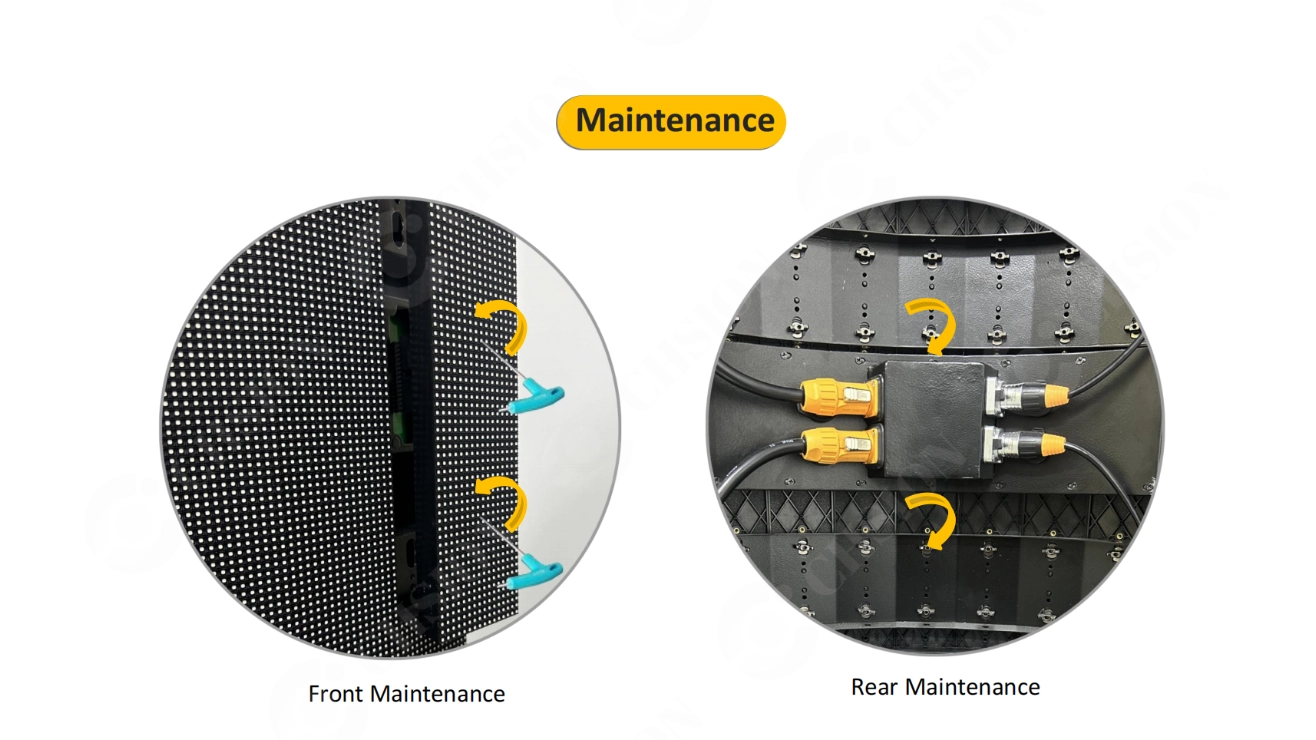

Maintenance Mode	Front & Rear	Front & Rear	Front & Rear	Front & Rear	Front & Rear	Front & Rear
Material	iron	iron	iron	iron	iron	iron
Brightness(Nits)	5500	5000	6000	6000	6000	6000
Color Temperature(K)	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional
Viewing Angle(V/H)	140°/160°	140°/160°	140°/160°	140°/160°	140°/160°	140°/160°
Evenness	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
Frame Frequency	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Drive Mode	50/60	50/60	50/60	50/60	50/60	50/60
Grey Scale	1/21 scan	1/16 scan	1/13 scan	1/8 scan	1/4 scan	1/2 scan
Refresh Rate(Hz)	16bit	16bit	16bit	16bit	16bit	16bit
Max Power Con. (W/㎡)	3840	3840	3840	3840	3840	3840
Ave Power Con. (W/㎡)	780	780	780	780	780	780
Protection Level	200-300	200-300	100-200	100-200	200-300	200-300
Power Input	IP65	IP65	IP65	IP65	IP65	IP65
Operation T/H(℃/RH)	AC90-264V,47-63Hz
Storate T/H(℃/RH)	-20~60℃/10%~85%
Cert.	-20~60℃/10%~85%
	CCC/CE/RoHS/FCC/CB/TUV/IEC

CHSION

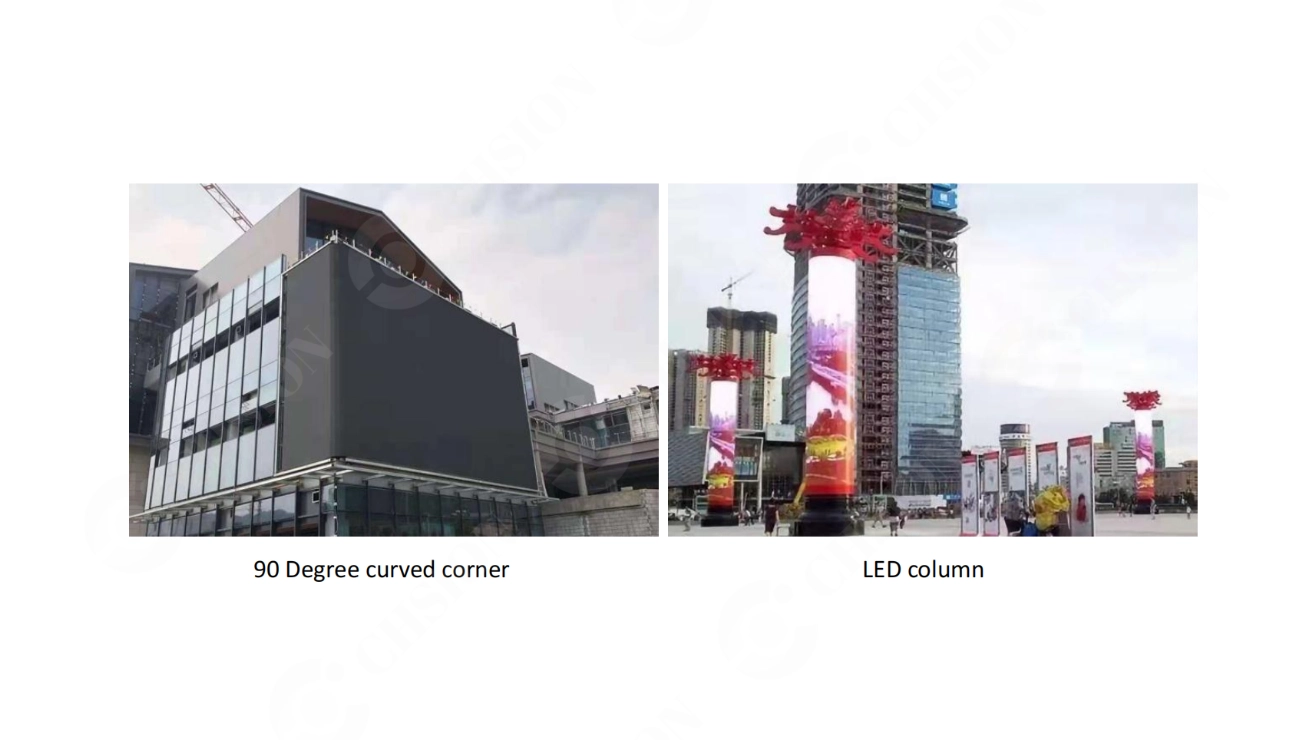

Columnar LED Screen
