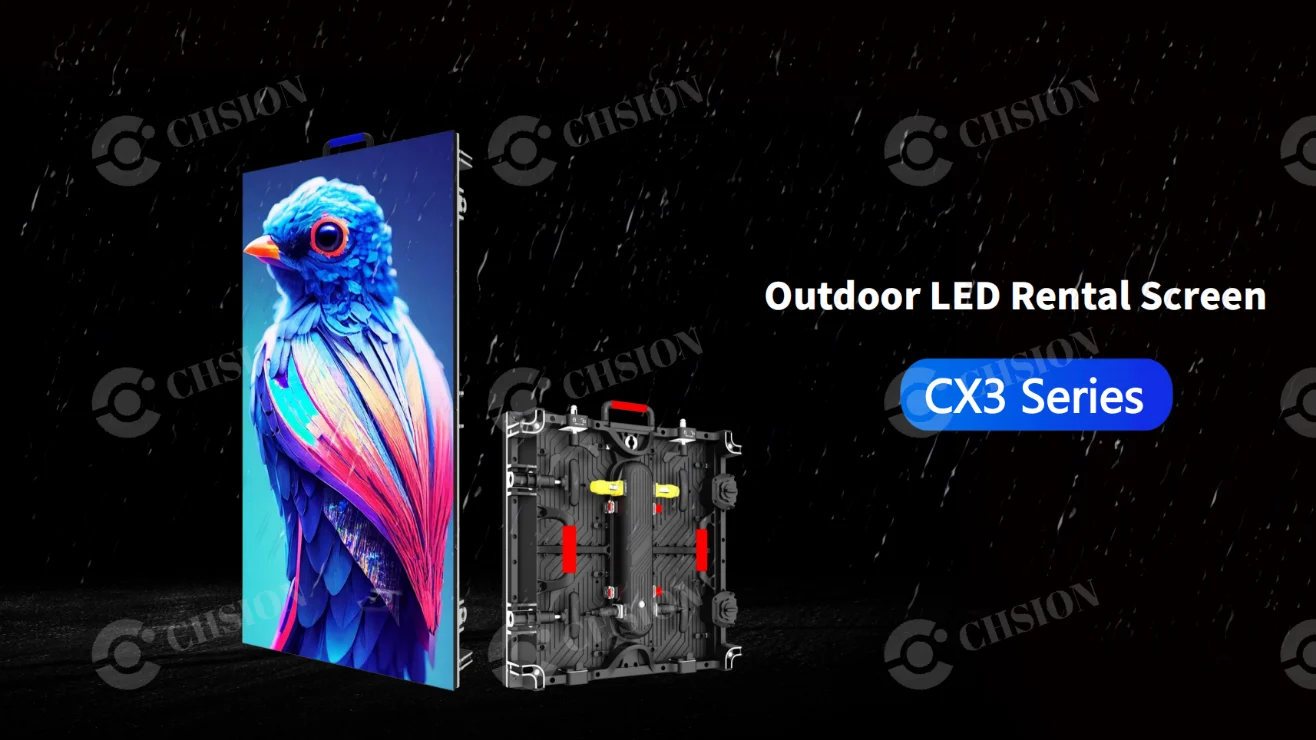

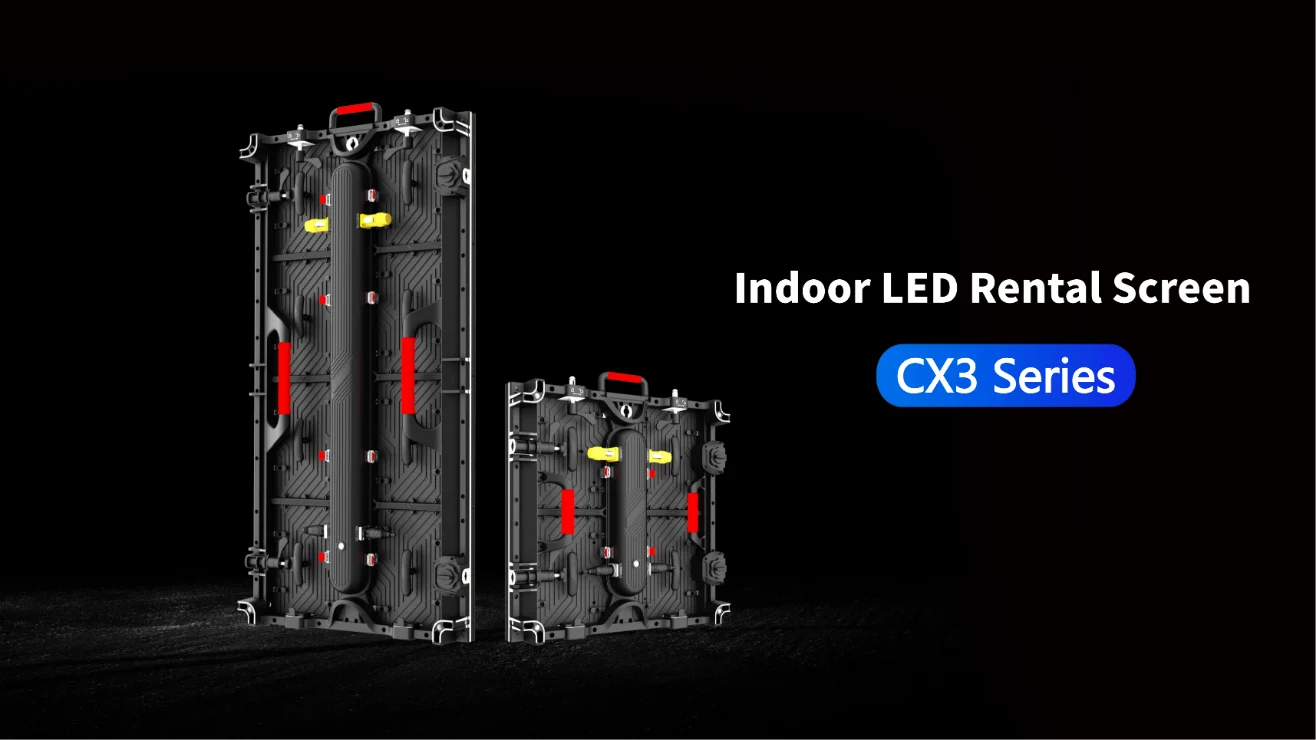

Portable LED Screen

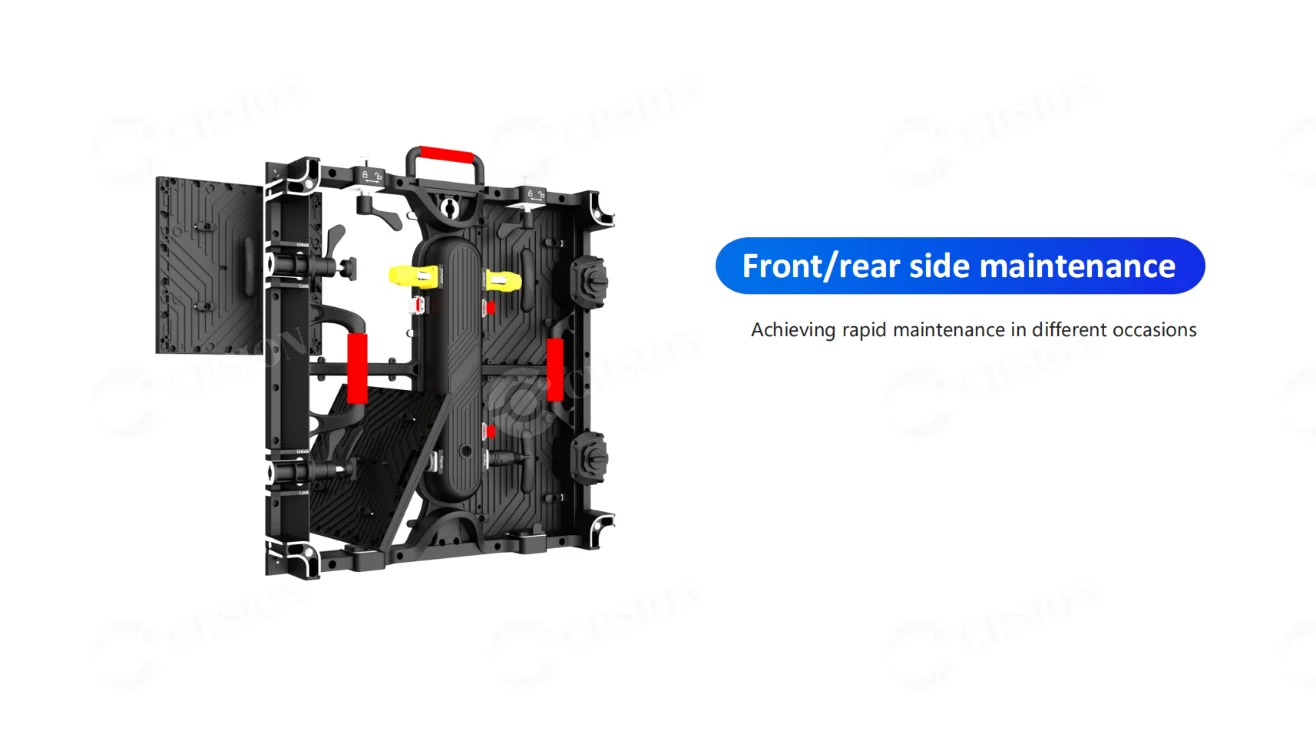

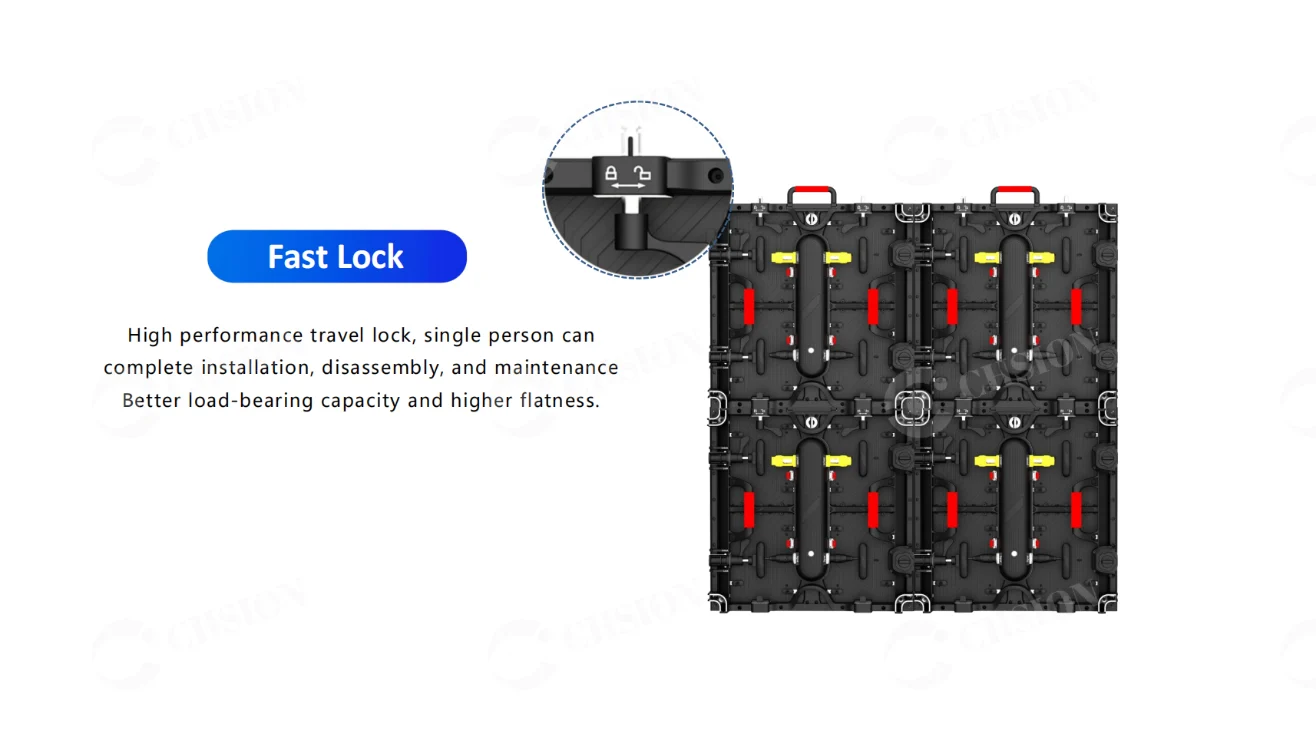

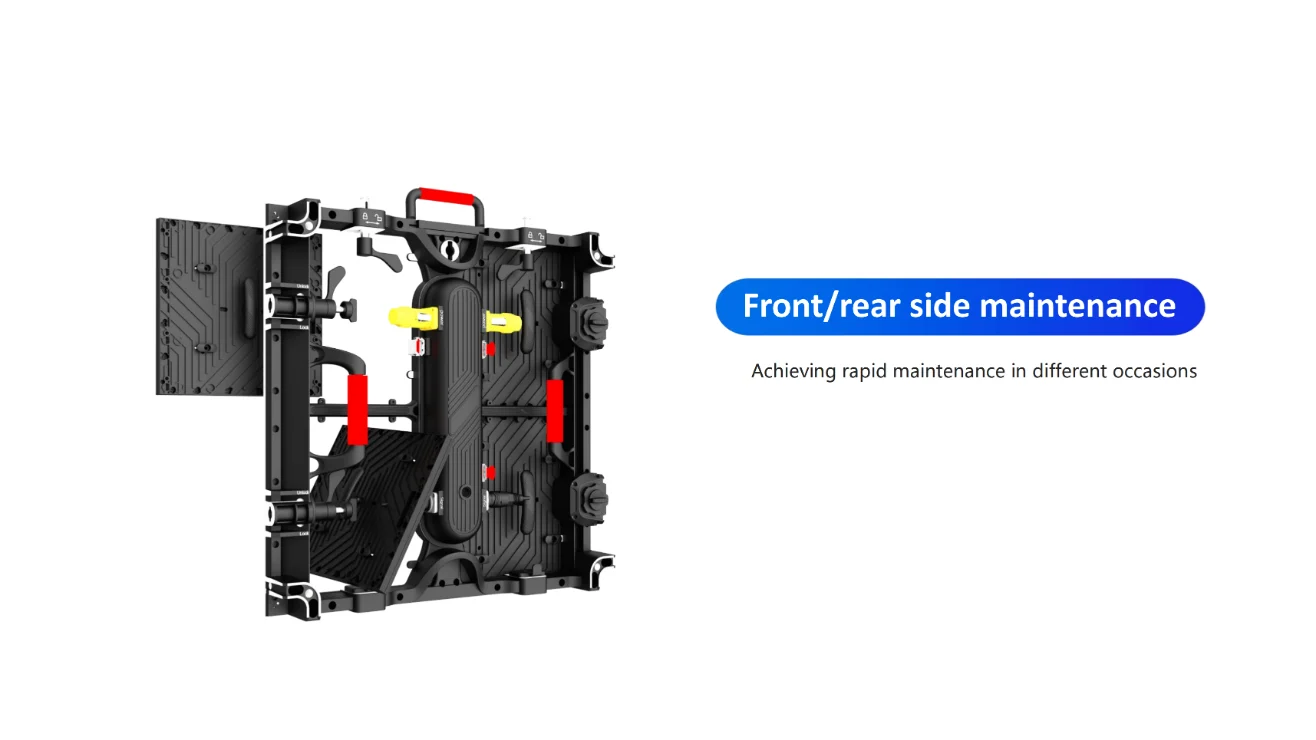

Maintenance: Front/rear Maintenance

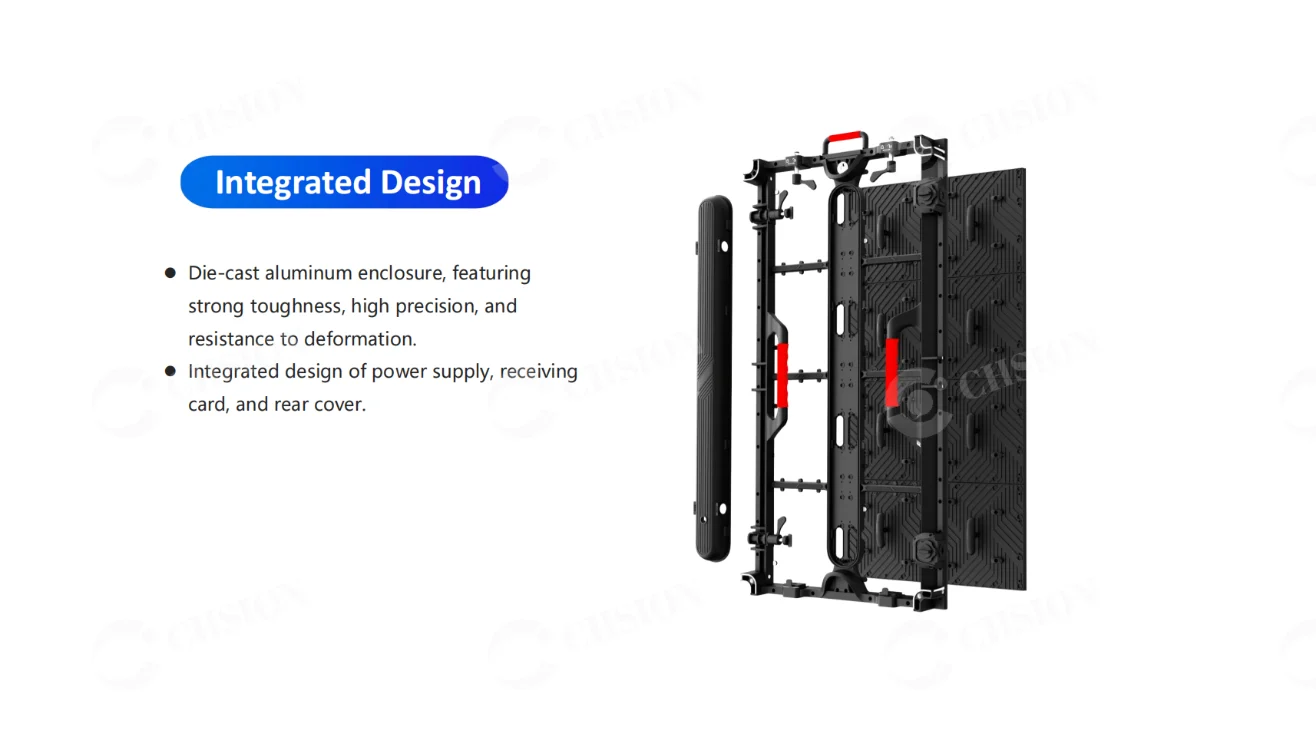

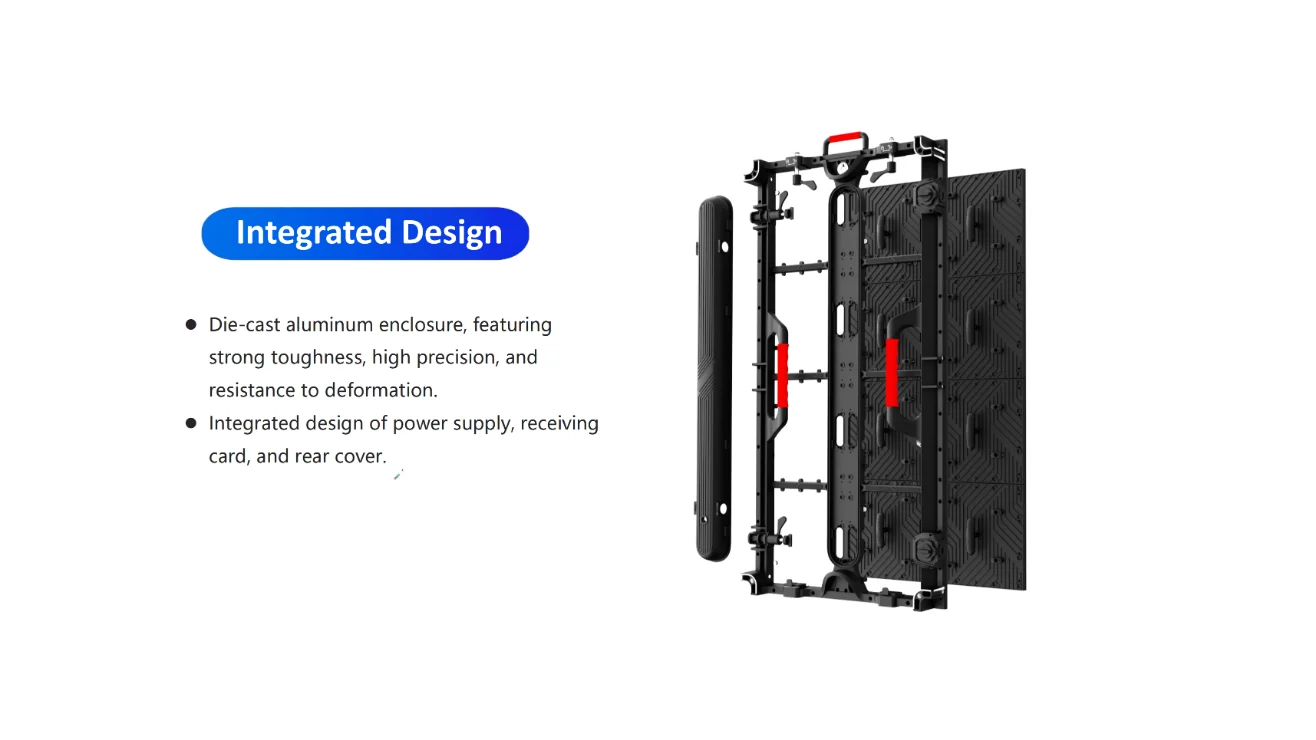

Cabinet Material: Die-cast Aluminum
Viewing Angle(H/V): 160°/160°
Contrast Ratio: 10000:1
Frame Frequency: 50/60
Grey Scale: 16bit

Quote Now Next

Features
Specifications

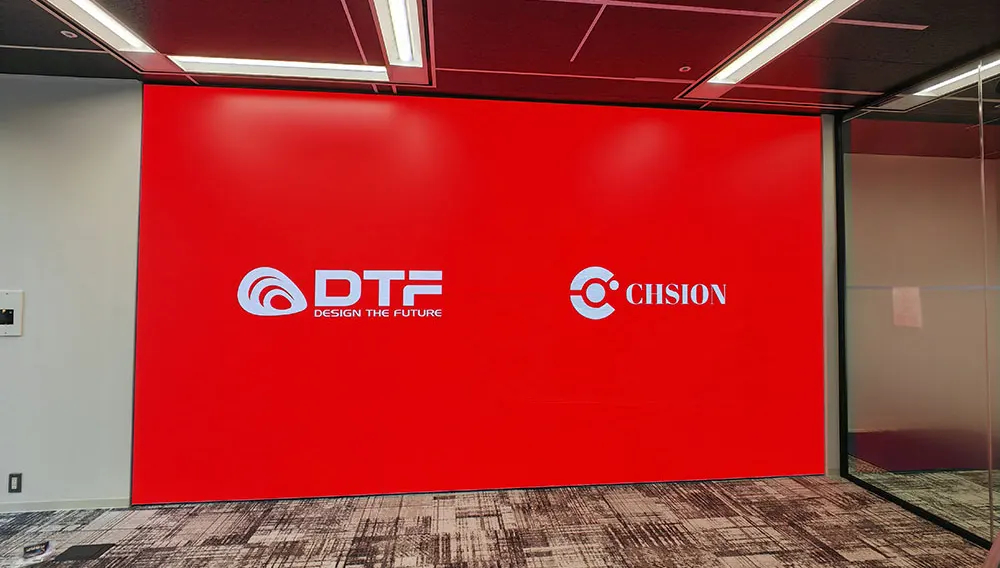

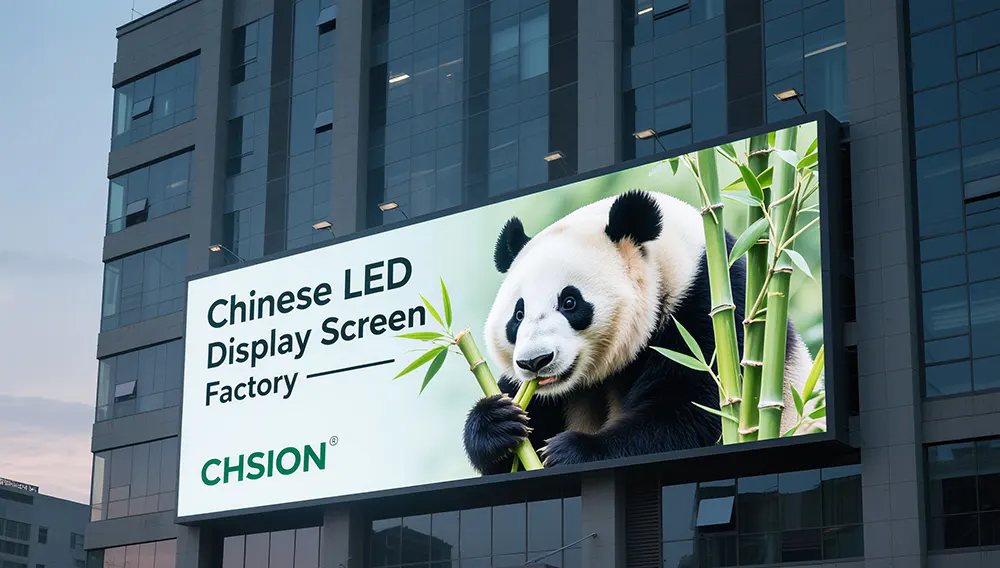

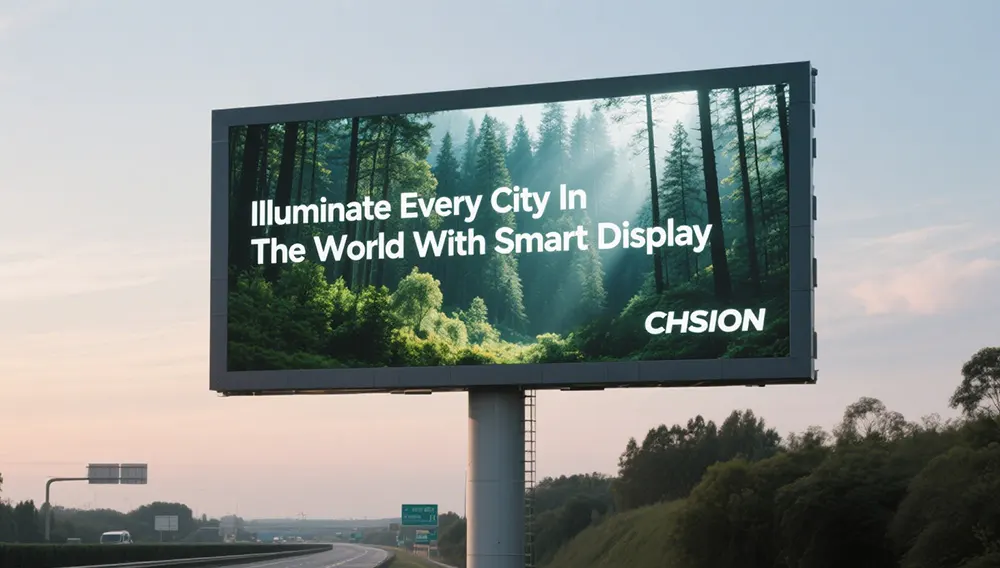

Cases

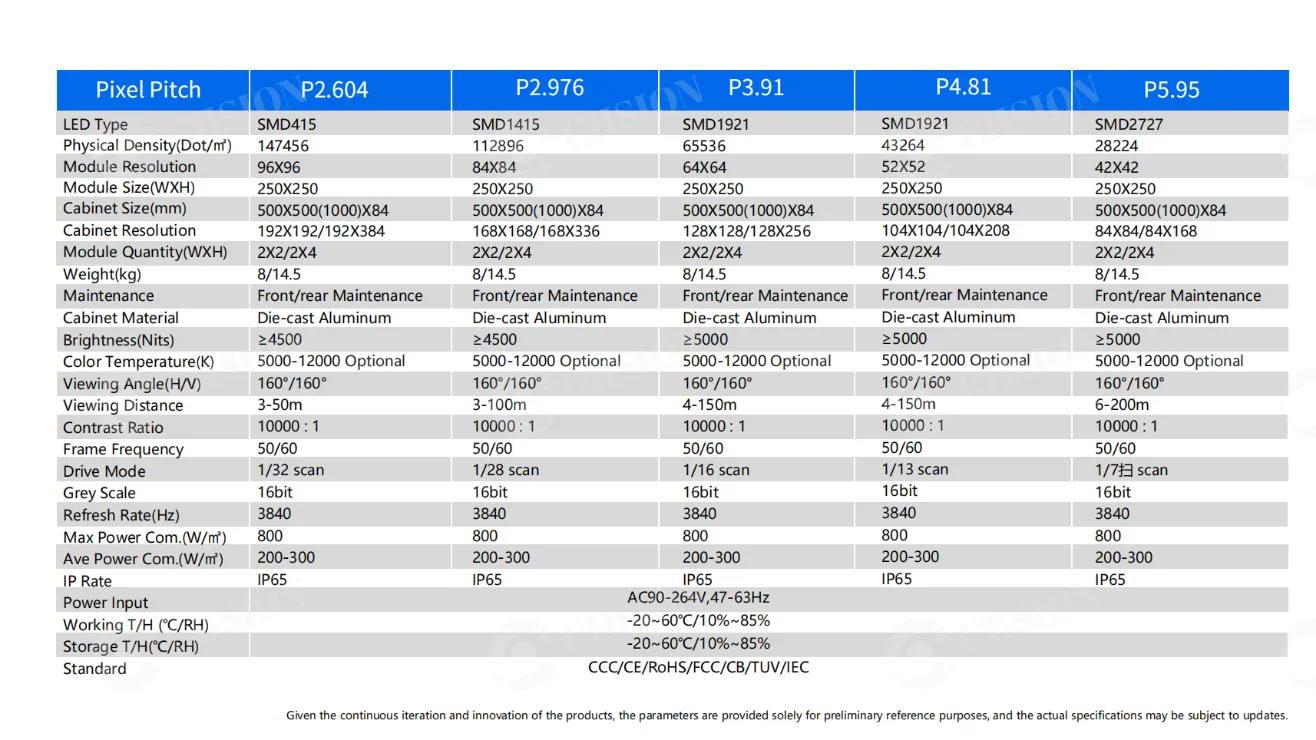

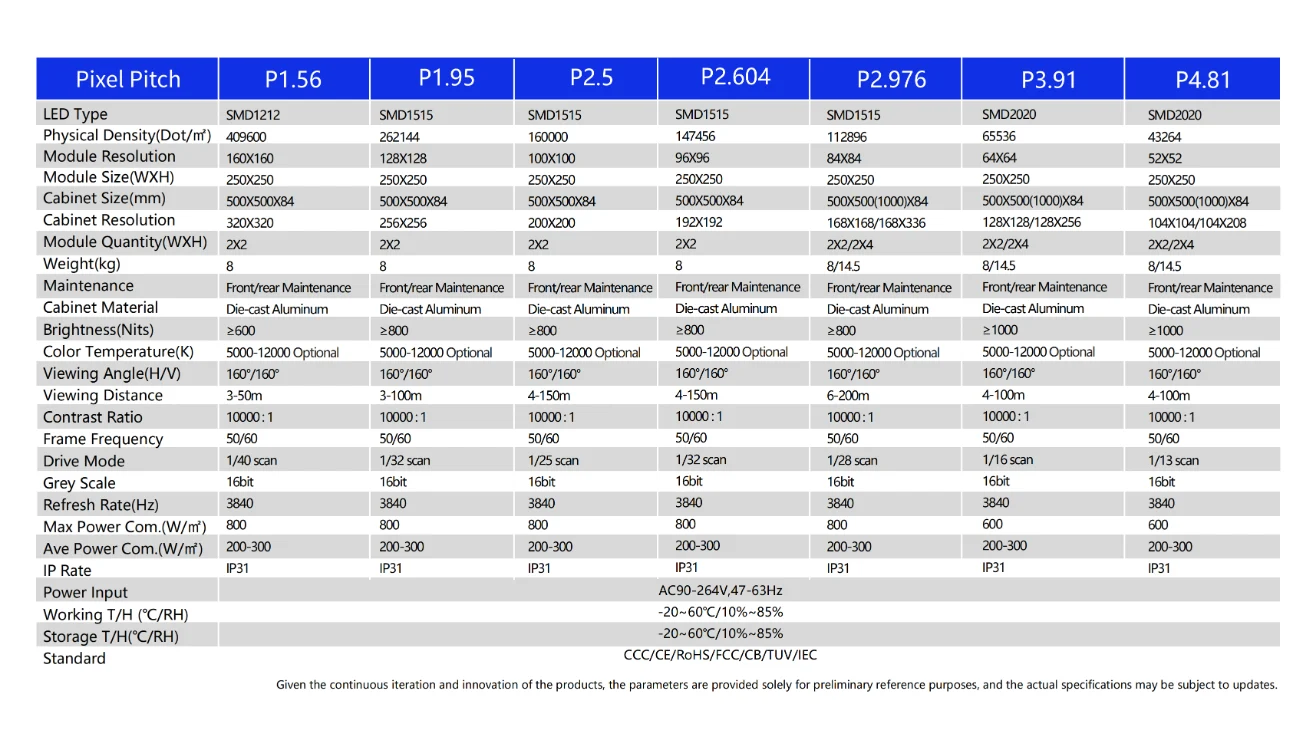

Pixel Pitch	P1.56	P1.95	P2.5	P2.604	P2.976	P3.91	P4.81
LED Type	SMD1212	SMD1515	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020
Physical Density (Dot/m²)	409600	262144	160000	147456	112896	65536	43264
Module Resolution	160×160	128×128	100×100	96×96	84×84	64×64	52×52
Module Size (W×H)	250×250	250×250	250×250	250×250	250×250	250×250	250×250

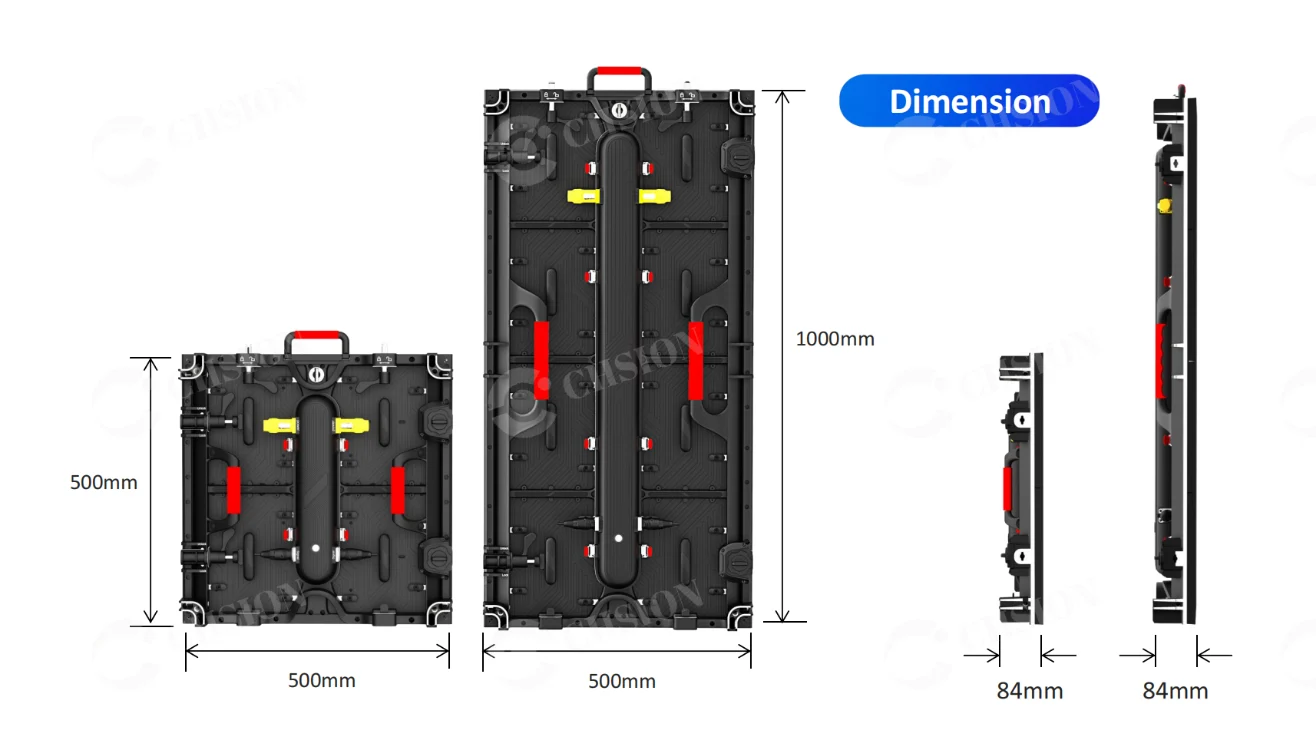

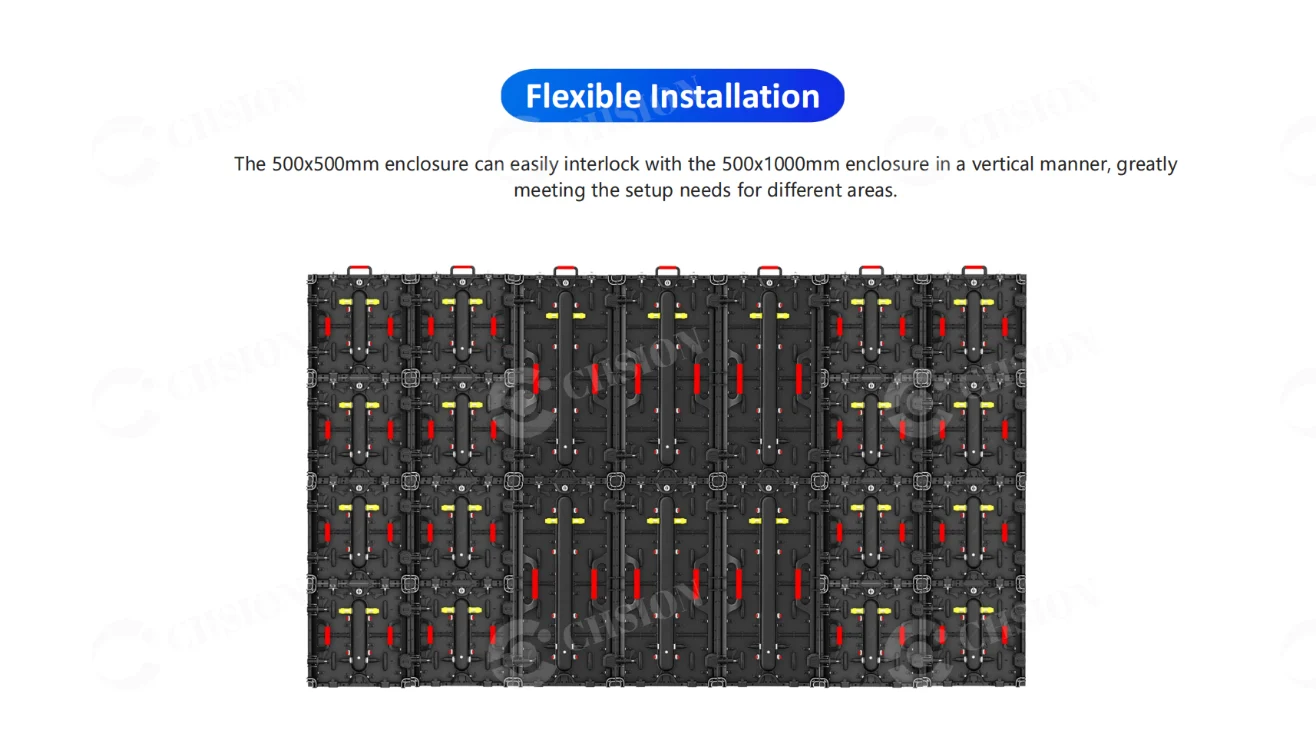

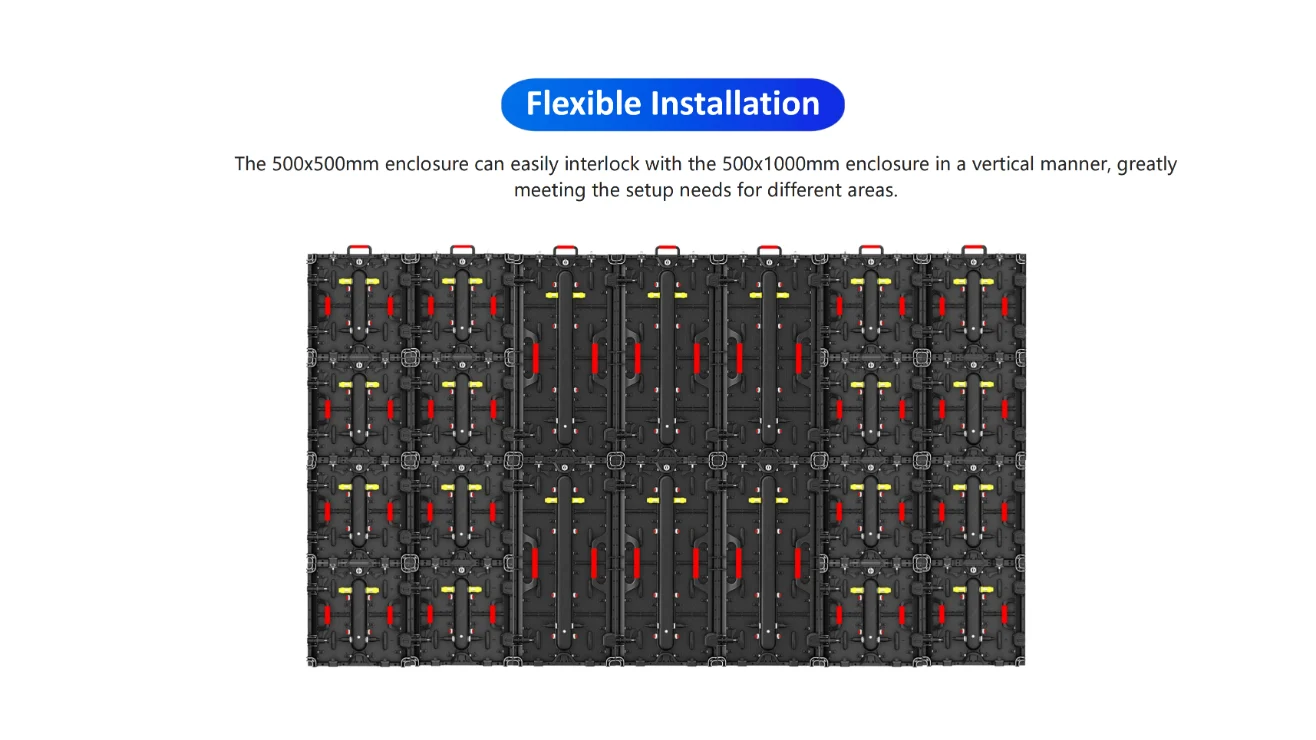

Cabinet Size (mm)	500×500×84	500×500×84	500×500×84	500×500×84	500×500(1000)×84	500×500(1000)×84	500×500(1000)×84
Cabinet Resolution	320×320	256×256	200×200	192×192	168×168 / 168×336	128×128 / 128×256	104×104 / 104×208
Module Quantity (W×H)	2×2	2×2	2×2	2×2	2×2 / 2×4	2×2 / 2×4	2×2 / 2×4

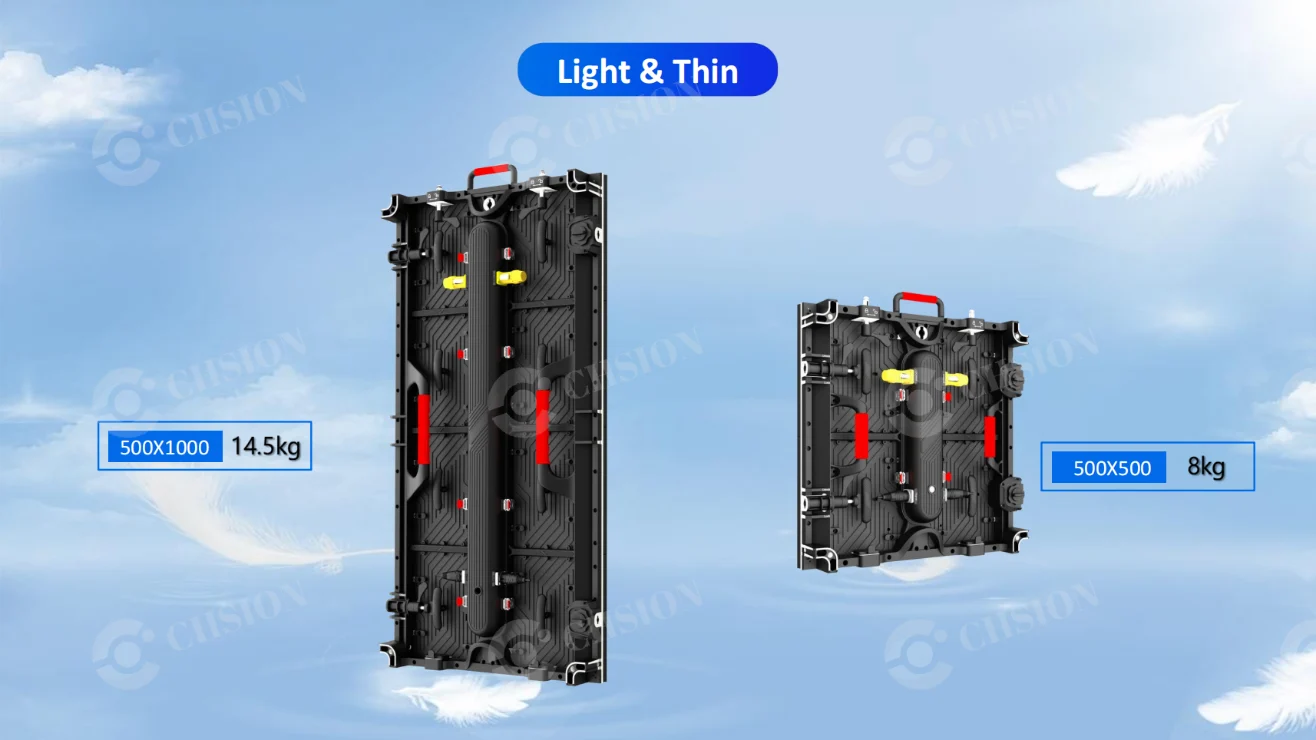

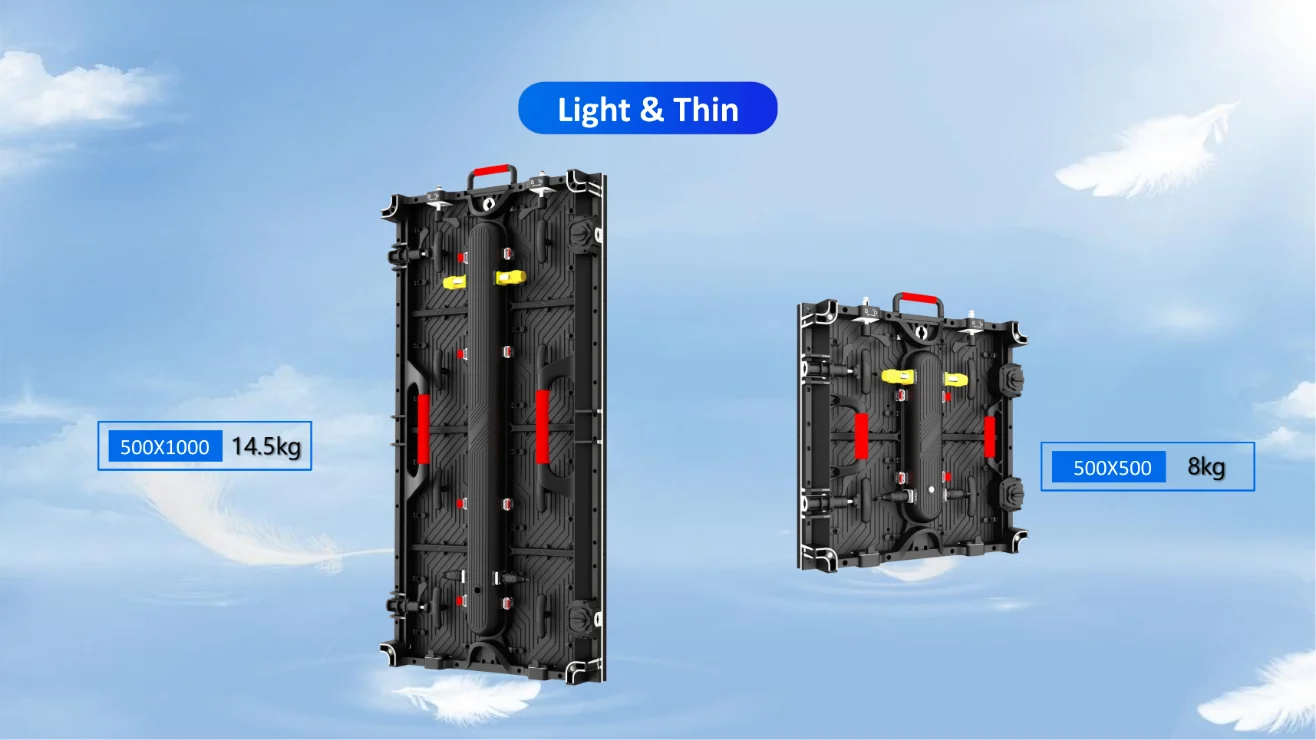

Weight (kg)	8	8	8	8	8 / 14.5	8 / 14.5	8 / 14.5
Maintenance	Front/rear Maintenance	Front/rear Maintenance	Front/rear Maintenance	Front/rear Maintenance	Front/rear Maintenance	Front/rear Maintenance	Front/rear Maintenance
Cabinet Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Brightness (Nits)	≥600	≥800	≥800	≥800	≥800	≥1000	≥1000
Color Temperature (K)	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional	5000-12000 Optional
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Viewing Distance	3-50m	3-100m	4-150m	4-150m	6-200m	4-100m	4-100m
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Frame Frequency	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Drive Mode	1/40 scan	1/32 scan	1/25 scan	1/32 scan	1/28 scan	1/16 scan	1/13 scan
Grey Scale	16bit	16bit	16bit	16bit	16bit	16bit	16bit
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840	3840
Max Power Com. (W/m²)	800	800	800	800	800	600	600
Average Power Com. (W/m²)	200-300	200-300	200-300	200-300	200-300	200-300	200-300
IP Rate	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Power Input	AC90-264V, 47-63Hz
Working T/H (°C/RH)	-20~60℃ / 10%~85%
Storage T/H (°C/RH)	-20~60℃ / 10%~85%
Standard	CCC / CE / RoHS / FCC / CB / TUV / IEC
Given the continuous iteration and innovation of the products, the parameters are provided solely for preliminary reference purposes, and the actual specifications may be subject to updates.
