Outdoor LED Display

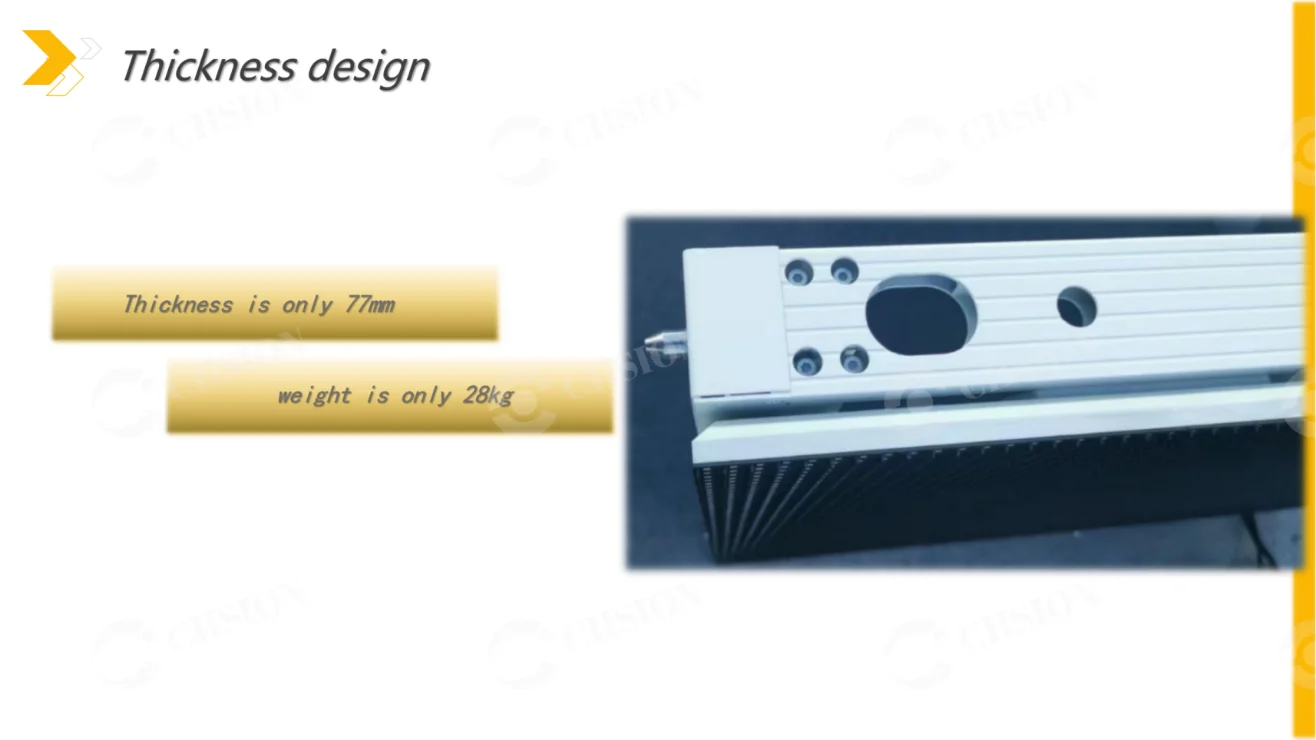

Cabinet Size: 960*960*77mm
Cabinet Weight: 28kg

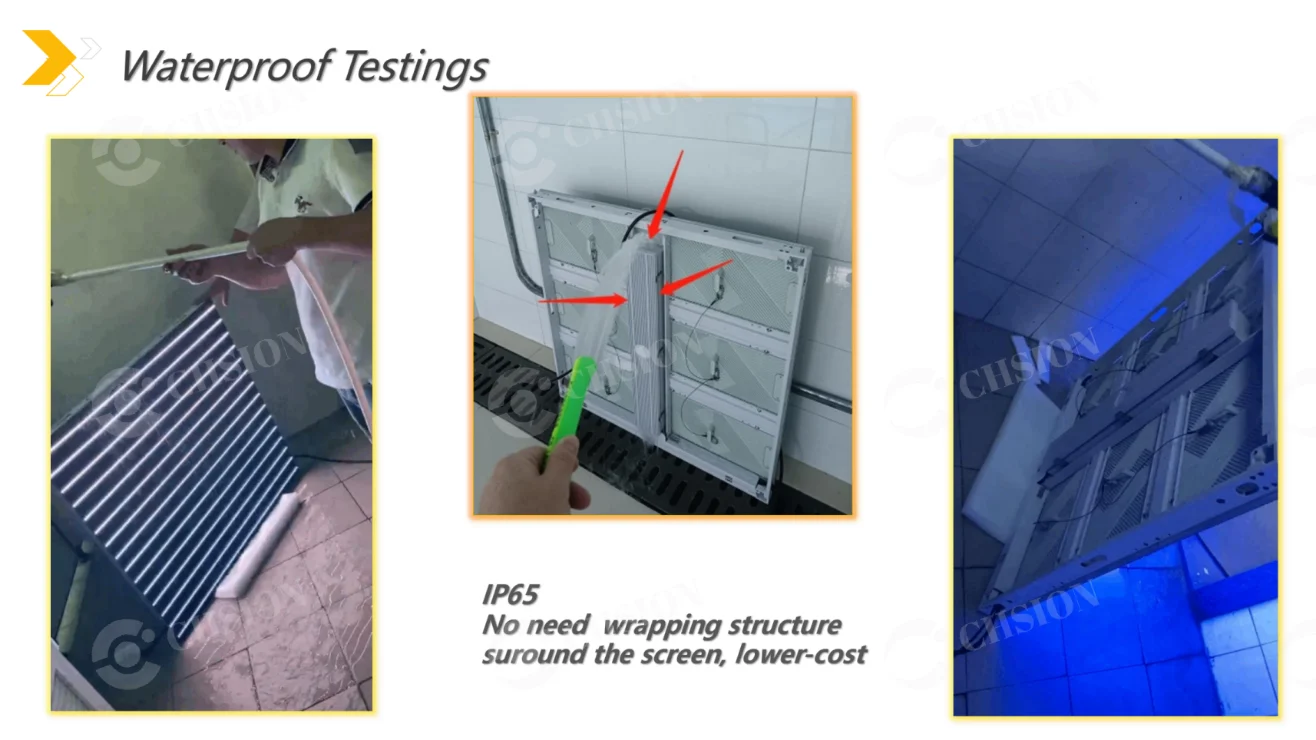

Rating(front/back): IP65

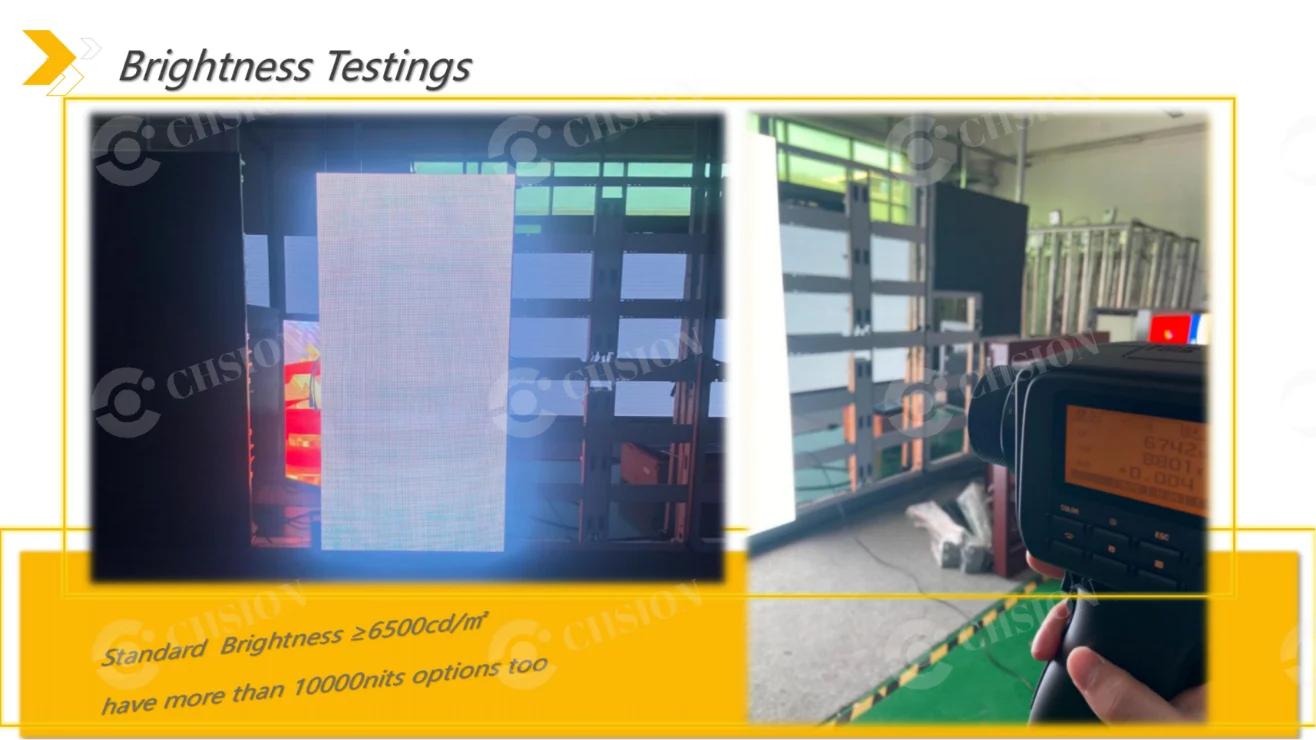

Brightness Intensity: ≥6000 CD/㎡
Viewing Angle (H/V): 40°/140°
View Distance: >5m

Quote Now Next

Features
Specifications

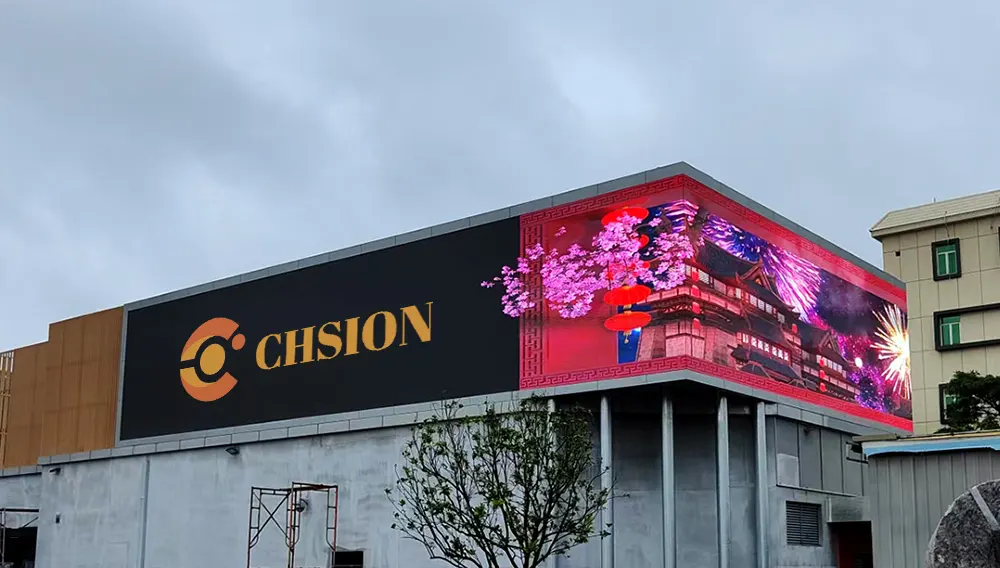

Cases

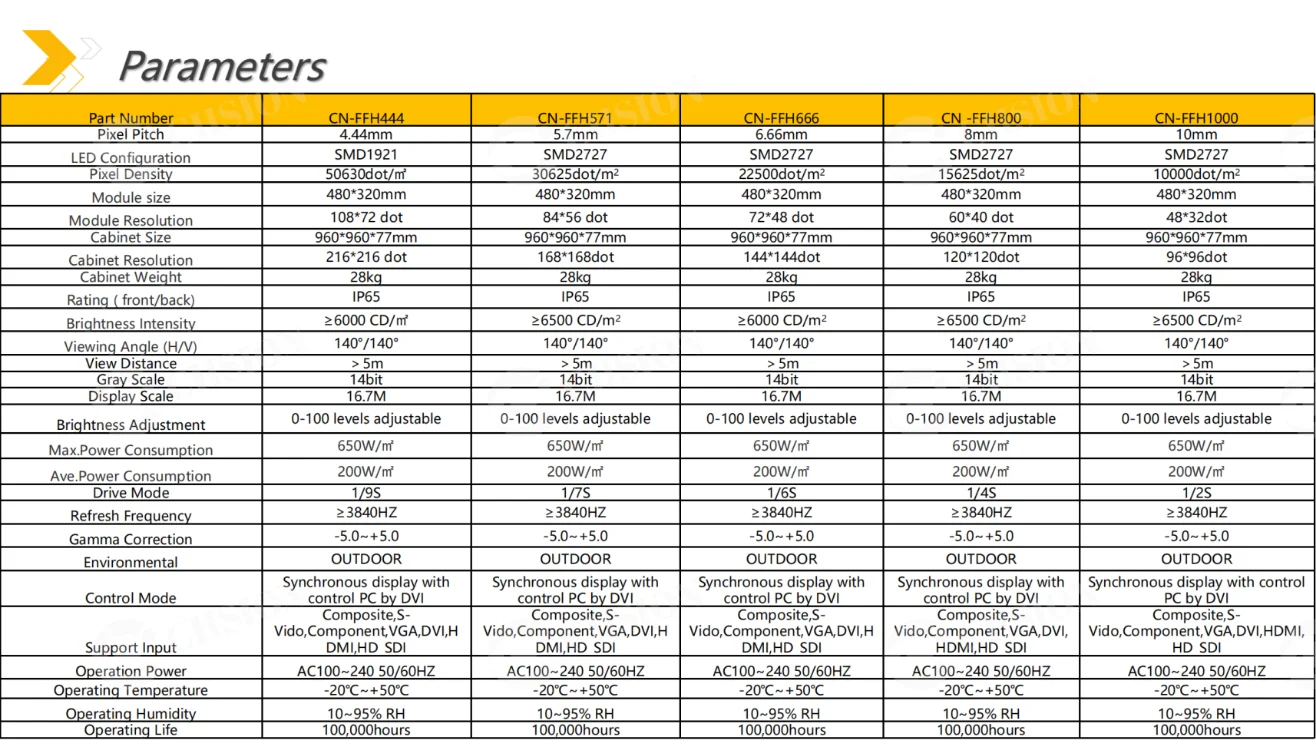

Part Number	CN-FFH444	CN-FFH571	CN-FFH666	CN -FFH800	CN-FFH1000

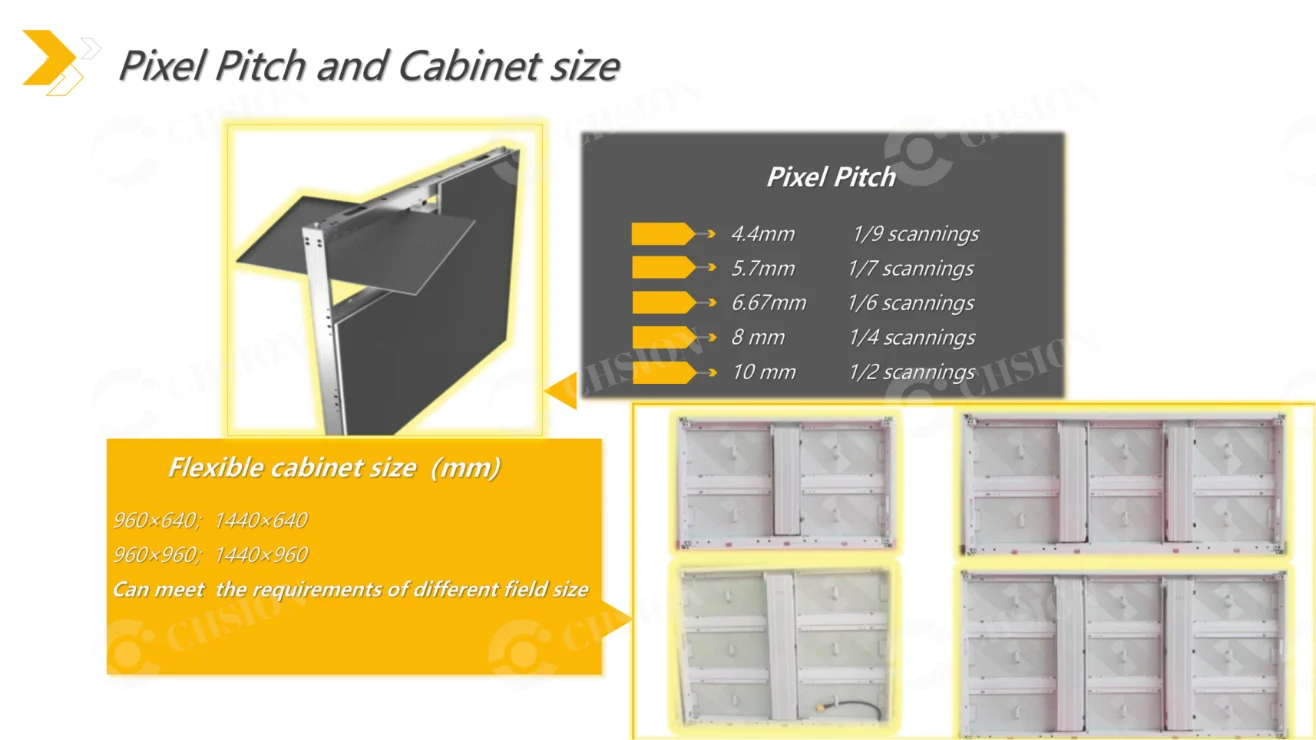

Pixel Pitch	4.44mm	5.7mm	6.66mm	8mm	10mm
LED Configuration	SMD1921	SMD2727	SMD2727	SMD2727	SMD2727
Pixel Density	50630dot/㎡	30625dot/㎡	22500dot/㎡	15625dot/㎡	10000dot/㎡
Module size	480*320mm	480*320mm	480*320mm	480*320mm	480*320mm
Module Resolution	108*72 dot	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size	96096077mm	96096077mm	96096077mm	96096077mm	96096077mm
Cabinet Resolution	216*216 dot	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight	28kg	28kg	28kg	28kg	28kg
Rating(front/back)	IP65	IP65	IP65	IP65	IP65
Brightness Intensity	≥6000 CD/㎡	≥6500 CD/㎡	≥6000 CD/㎡	≥6500 CD/㎡	≥6500 CD/㎡
Viewing Angle (H/V)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
View Distance	>5m	>5m	>5m	>5m	>5m
Gray Scale	14bit	14bit	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M	16.7M	16.7M
Brightness Adjustment	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable

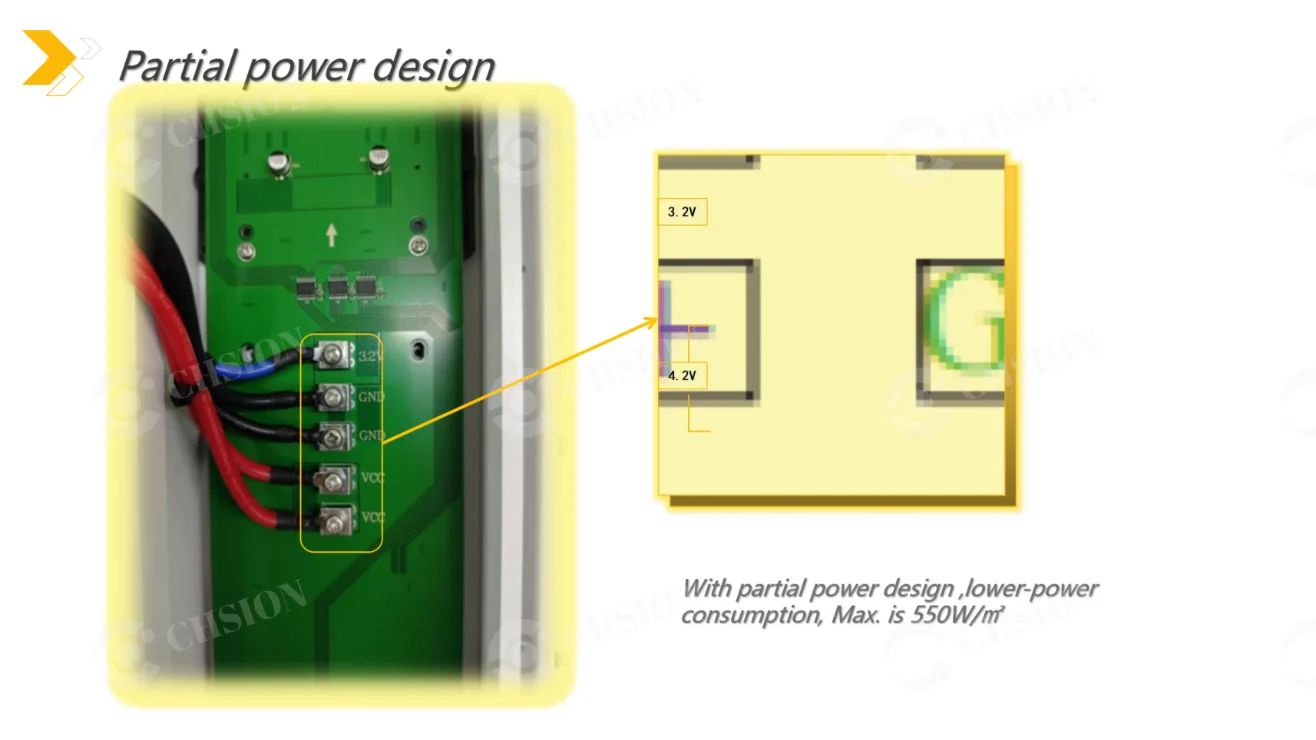

Max.Power Consumption	650W/㎡	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Ave.Power Consumption	200W/㎡	200W/㎡	200W/㎡	200W/㎡	200W/㎡
Drive Mode	1/9S	1/7S	1/6S	1/4S	1/2S
Refresh Frequency	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Gamma Correction	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Control Mode	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI
Support Input	Composite, S- Vido, Component, VGA, DVI, H DMI, HD SDI	Composite, S- Vido, Component, VGA, DVI, H DMI, HD SDI	Composite, S- Vido, Component, VGA, DVI, H DMI, HD SDI	Composite, S- Vido, Component, VGA, DVI, HDMI, HD SDI	Composite, S- Vido, Component, VGA, DVI, HDMI, HD SDI
Operation Power	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ
Operating Temperature	-20C~+50C	-20°℃~+50°℃	-20°℃~+50°C	-20℃~+50C	-20℃~+50C
Operating Humidity	10~95% RH	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours
