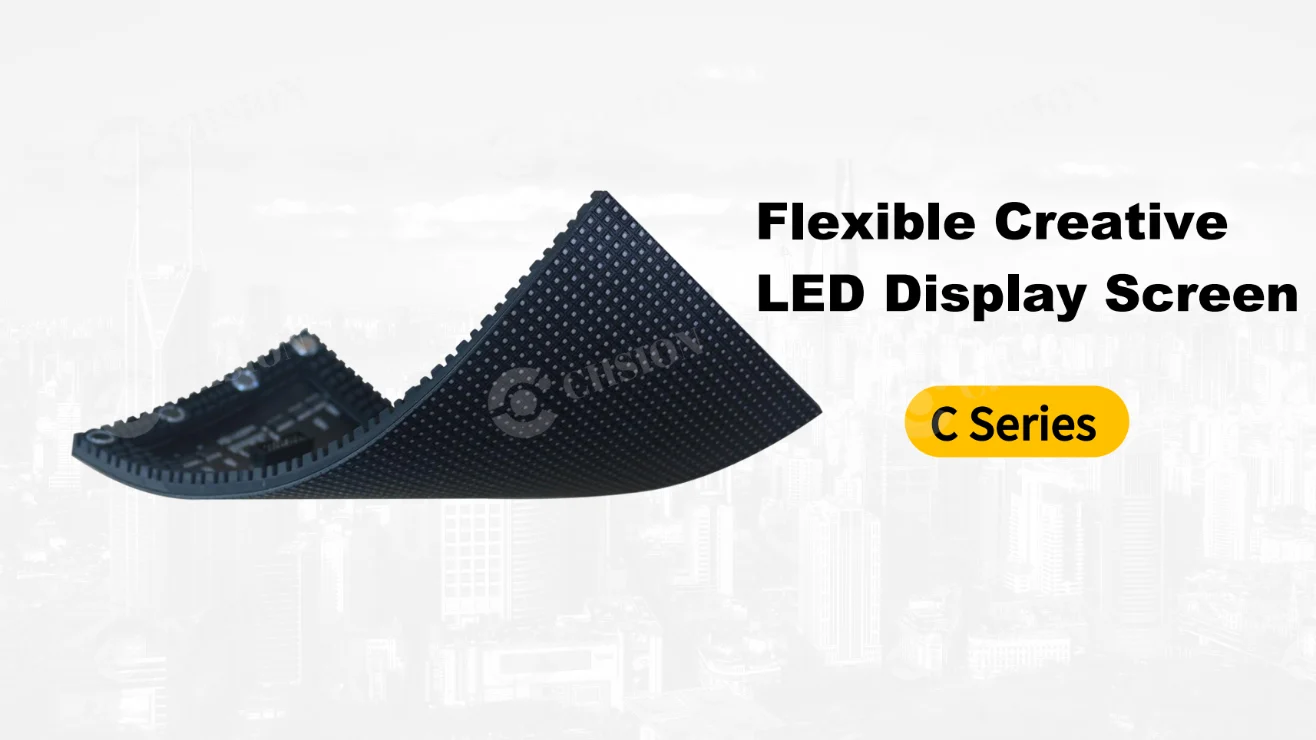

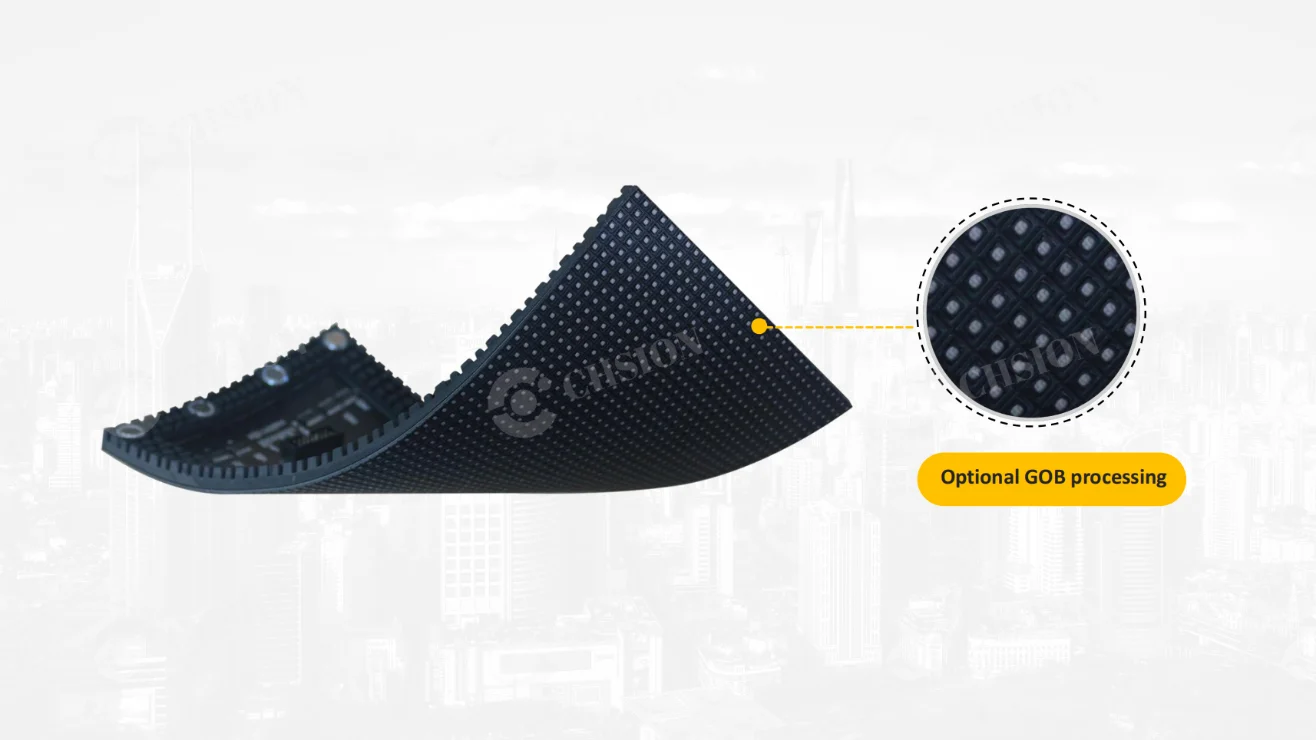

LED Flexible Screen

  • Color Temperature(K): 5000-12000 Optional
  • Viewing Angle(V/H): 160°/160°
  • Viewing Distance: 1.25-50m
  • Contrast Ratio: 10000:1
  • Frame Frequency: 50/60
  • Grey Level: 16bit
Quote Now Next
LED Flexible Screen
  • Features
  • Specifications

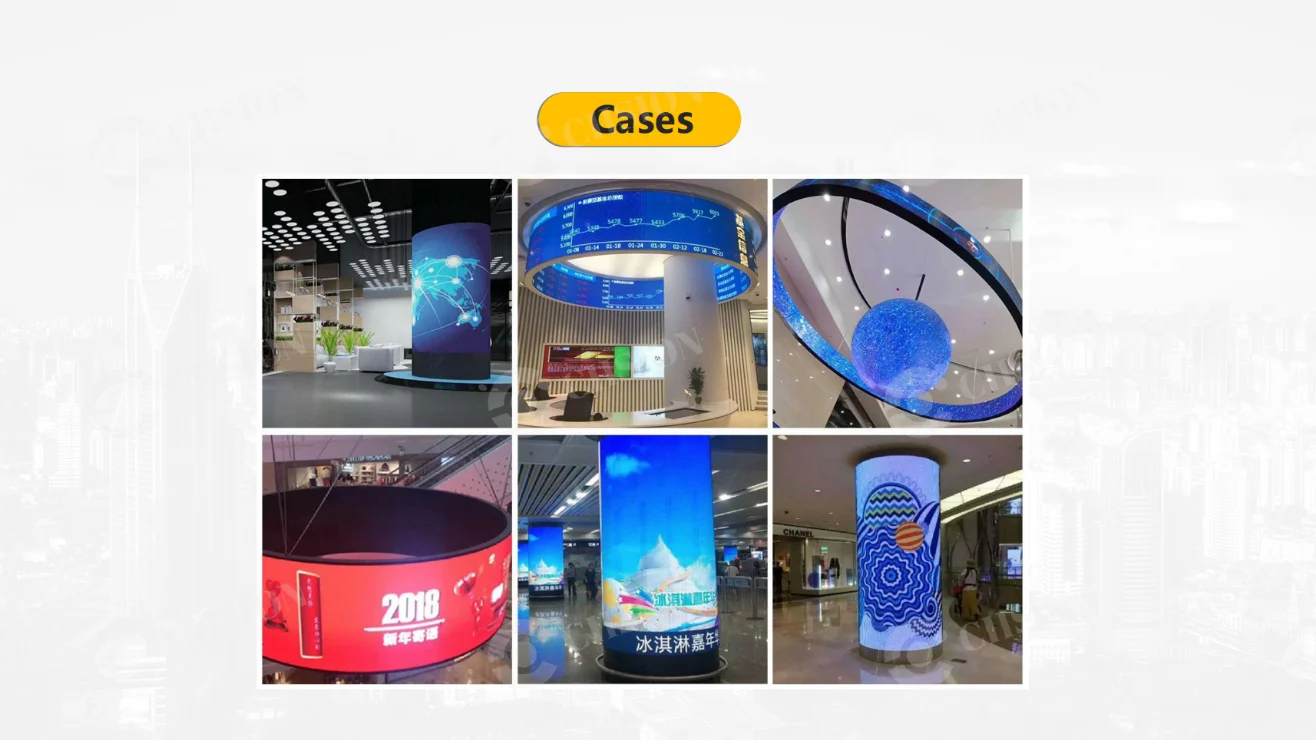

  • Cases

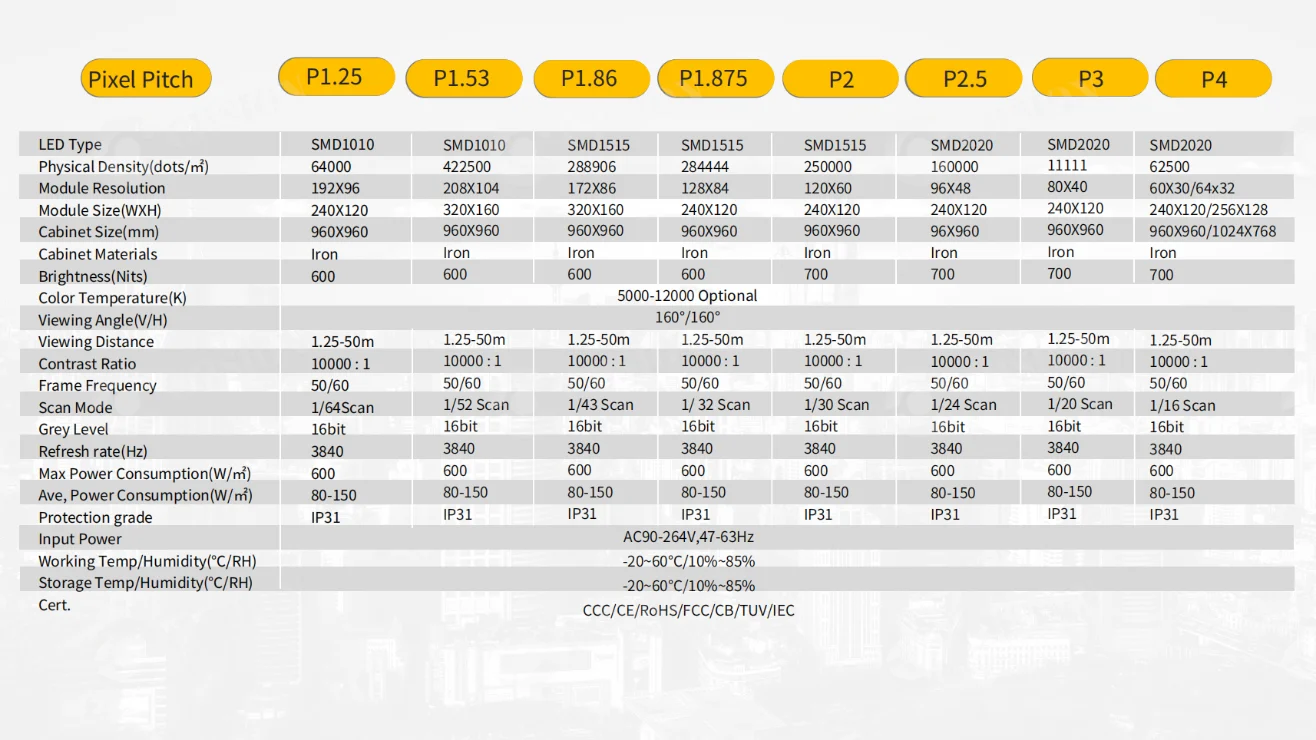

Pixel Pitch P1.25 P1.53 P1.86 P1.875 P2 P2.5 P3 P4
LED Type SMD1010 SMD1010 SMD1515 SMD1515 SMD1515 SMD2020 SMD2020 SMD2020
Physical Density(dots/m) 64000 422500 288906 284444 250000 160000 11111 62500
Module Resolution 192×96 208×104 172×86 128×84 120×60 96×48 80×40 60×30/64×32

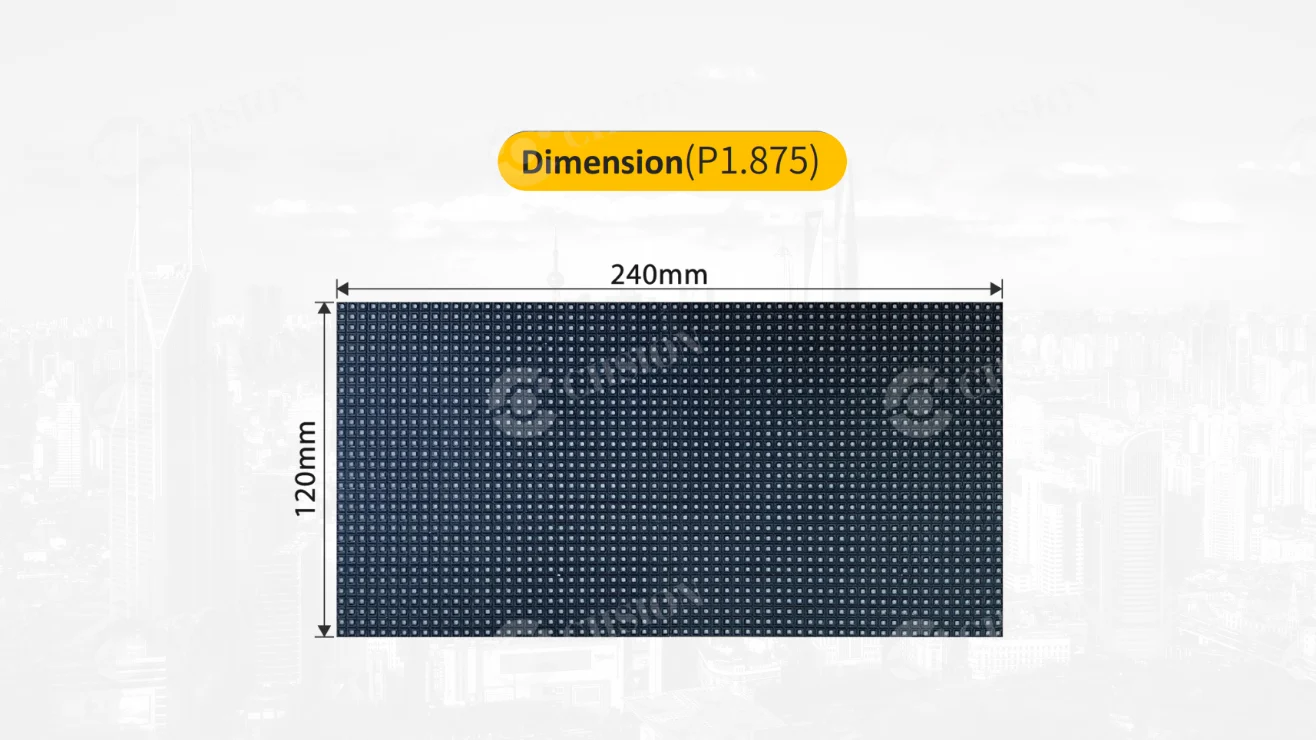

Module Size(W×H) 240×120 320×160 320×160 240×120 240×120 240×120 240×120 240×120/256×128
Cabinet Size(mm) 960×960 960×960 960×960 960×960 960×960 960×960 960×960 960×960/1024×768
Cabinet Materials Iron Iron Iron Iron Iron Iron Iron Iron
Brightness(Nits) 600 600 600 600 700 700 700 700
Color Temperature(K) 5000-12000 Optional
Viewing Angle(V/H) 160°/160°
Viewing Distance 1.25-50m 1.25-50m 1.25-50m 1.25-50m 1.25-50m 1.25-50m 1.25-50m 1.25-50m
Contrast Ratio 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1
Frame Frequency 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Scan Mode 1/64Scan 1/52 Scan 1/43 Scan 1/32 Scan 1/30 Scan 1/24 Scan 1/20 Scan 1/16 Scan
Grey Level 16bit 16bit 16bit 16bit 16bit 16bit 16bit 16bit
Refresh Rate(Hz) 3840 3840 3840 3840 3840 3840 3840 3840
Max Power(W/m) 600 600 600 600 600 600 600 600
Avg Power(W/m) 80-150 80-150 80-150 80-150 80-150 80-150 80-150 80-150
Protection Grade IP31 IP31 IP31 IP31 IP31 IP31 IP31 IP31
Input Power AC90-264V, 47-63Hz
Working Temp/Humidity -20~60℃ / 10%~85%
Storage Temp/Humidity -20~60℃ / 10%~85%
Cert. CCC/CE/RoHS/FCC/CB/TUV/IEC
